Toe-In

1. Measure distance between wheel disc and corner of cam bracket, Fig. 7. Distance should be identical for both wheels.

Fig. 7 Rear Toe-in Measurement.:

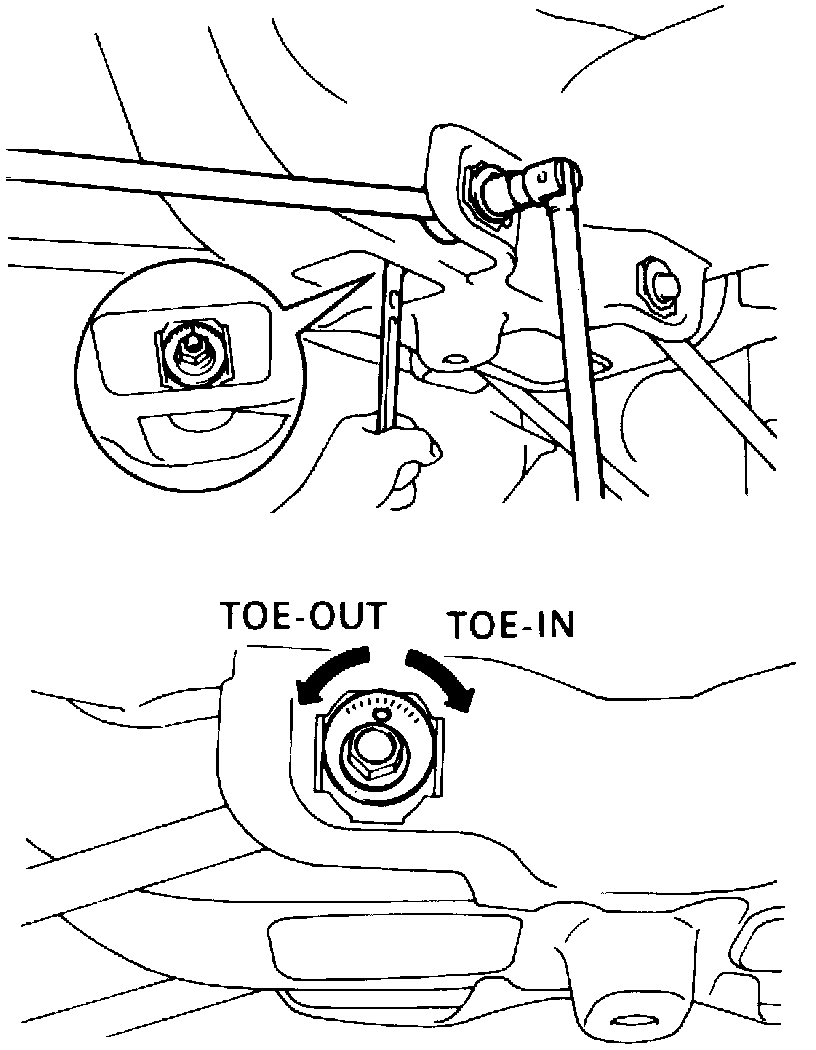

2. If toe-in is not within specification, rotate cam bolt(s) until specification is obtained, Fig. 8. Toe-in will change about 0.06 inch (1.5 mm) with each graduation marked on cam.

Fig. 8 Rear Toe-in Adjustment Cam.:
