Overdrive Solenoid

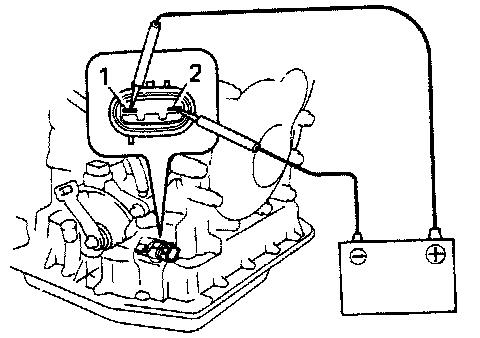

Solenoid Inspection - Checking Operation:

- Disconnect the solenoid connector.
- Apply voltage between terminals 1 and 2.
- Confirm that a solenoid operation sound in heard.

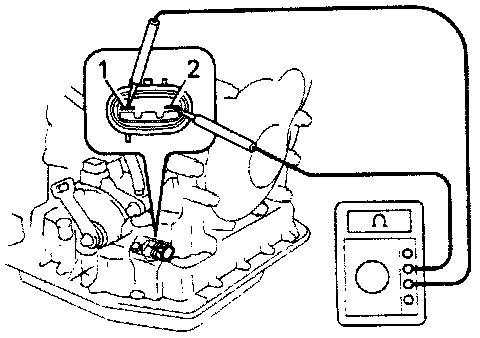

Solenoid Inspection - Checking Resistance:

- Using an ohmmeter, measure the solenoid coil resistance between terminals 1 and 2.

Resistance: 11 - 15 ohms

- Reconnect the solenoid connector.
