EGR Gas Temperature Sensor (California Only)
EGR Gas Temperature Sensor (California Only)
EGR GAS TEMP. SENSOR (California Only)

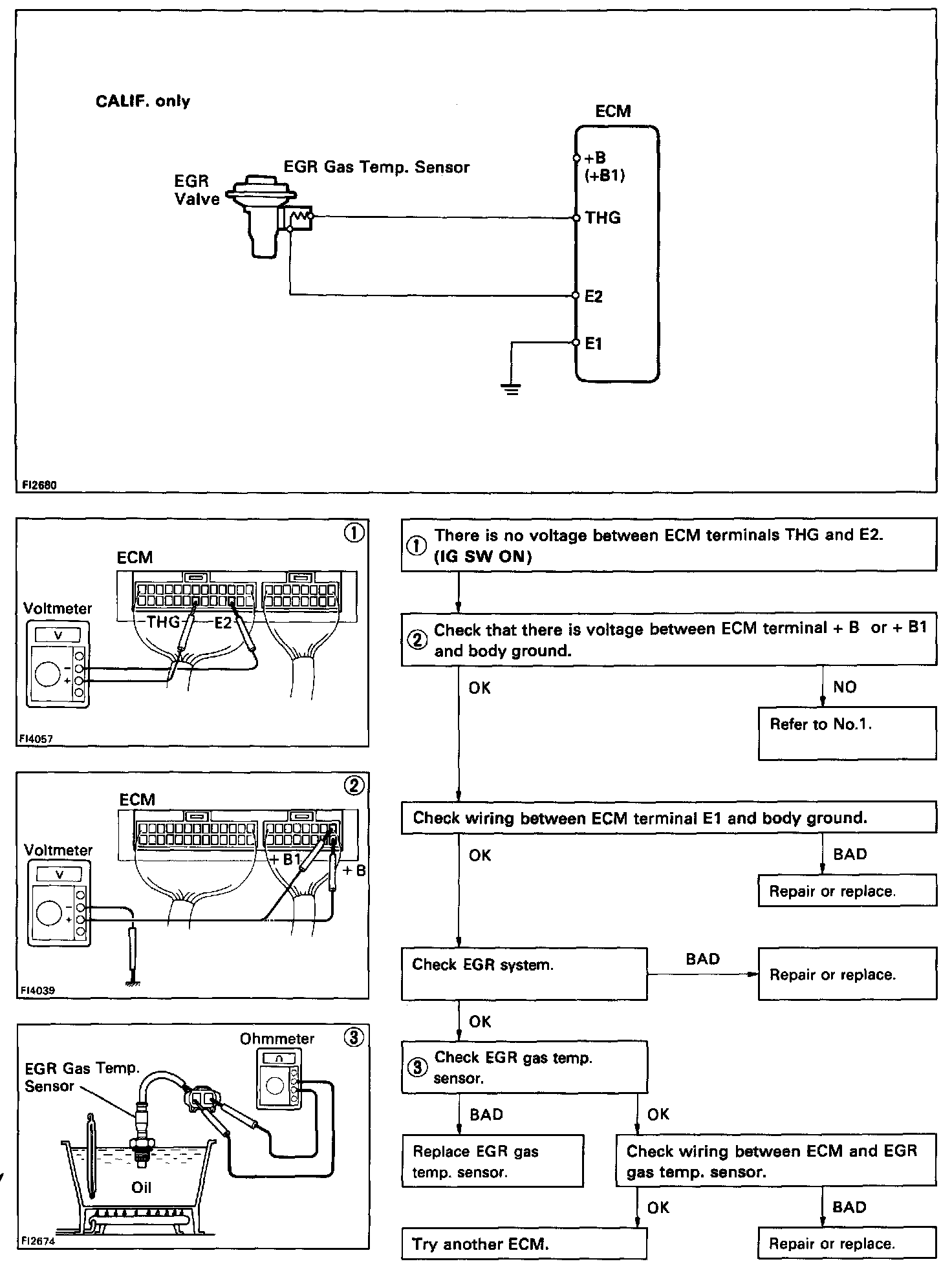

Circuit Inspection - EGR Gas Temp. Sensor:
