Manifold Pressure/Vacuum Sensor
>>
Testing and Inspection
>>
Component Testing
Component Testing

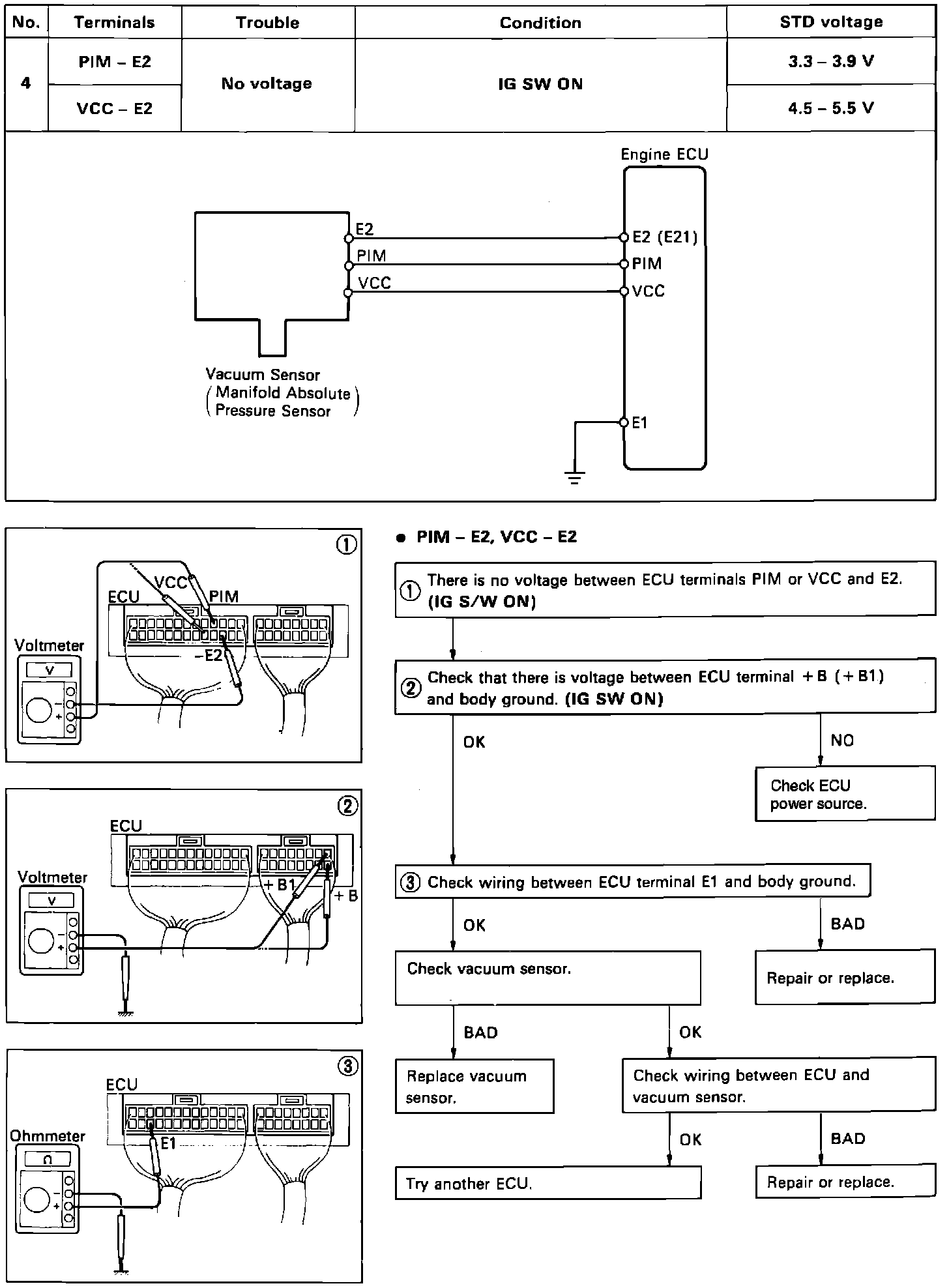

Vacuum Sensor Circuit Inspection:
