Manifold Pressure/Vacuum Sensor: Description and Operation

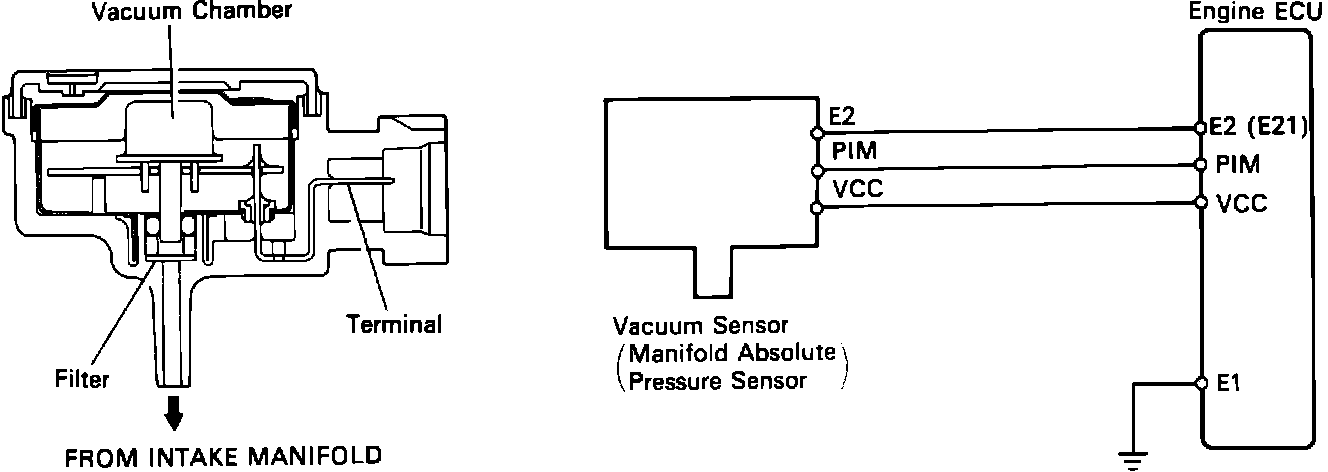

Manifold Absolute Pressure (MAP) Sensor:

PURPOSE
The MAP sensor detects engine load by sensing intake manifold pressure. The ECM uses the sensor input to provide proper compensation for acceleration and periods of high load.

LOCATION
The sensor is located on the center of the firewall.

OPERATION
A 5 volt supply is fed to the sensor whenever the ignition is turned on. As pressures (vacuum) are detected, a signal (approx. 1 - 4 volts) is returned to the ECM. The vacuum to signal ratio is constant, making very precise measurement possible.
