Home >> Toyota >> 1993 >> Celica L4-96.8 1587cc 1.6L DOHC (4A-FE) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Fuse, Relay, and Junction Block Data >> Junction Block No. 2 >> All-Track/4WD

All-Track/4WD

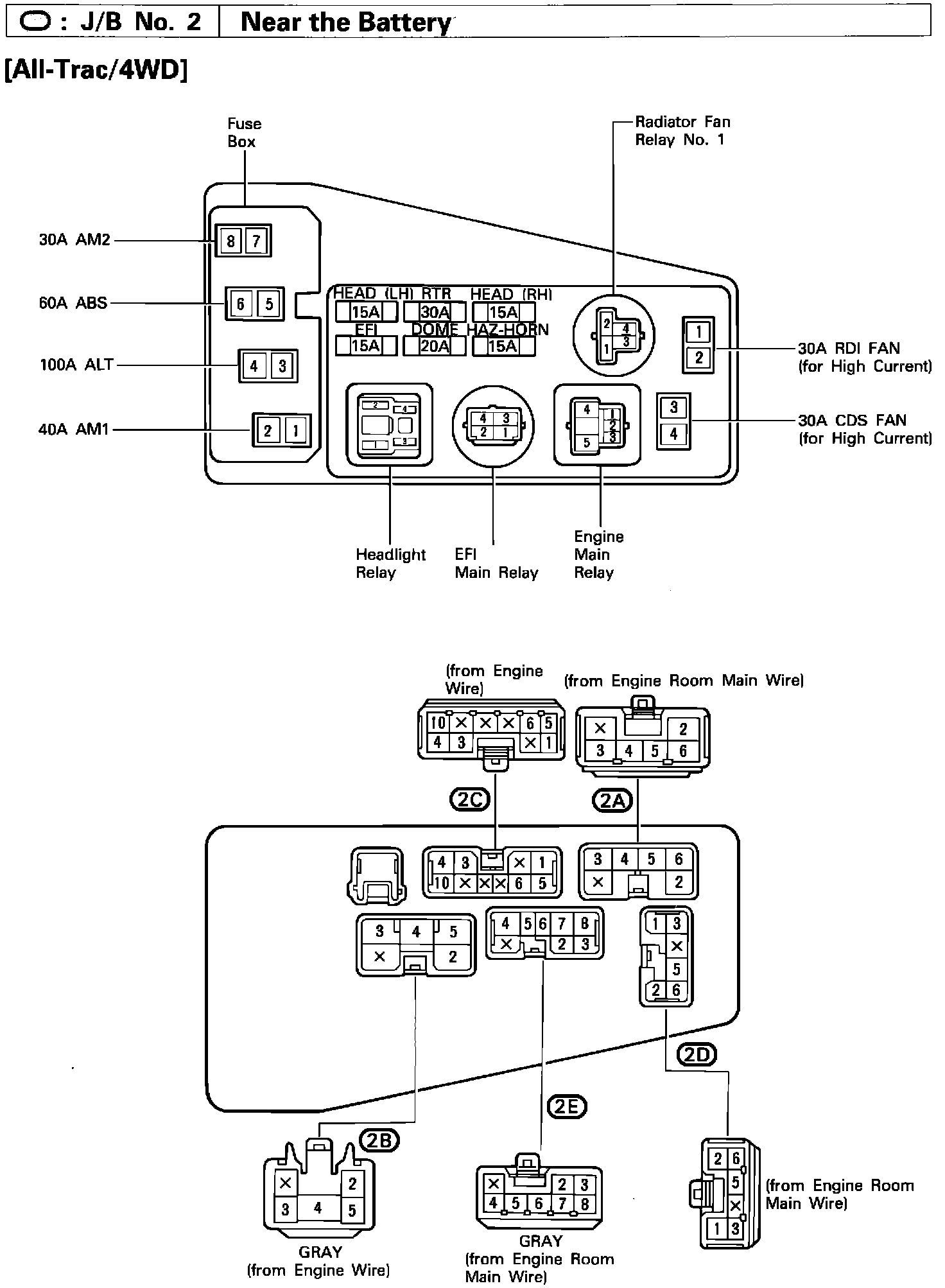

Junction Block No. 2:
