Engine Control System

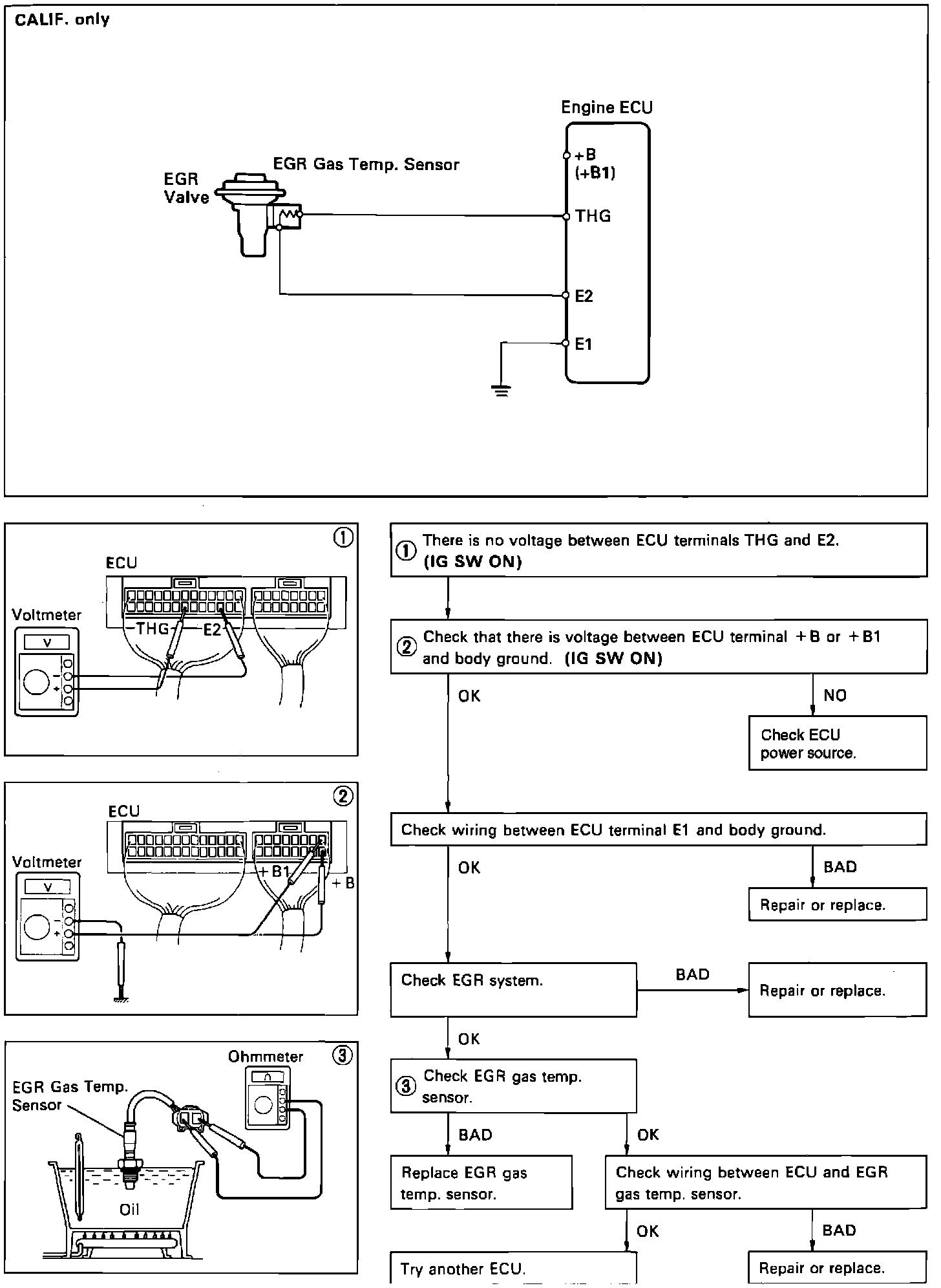

EGR Temperature Sensor Circuit Inspection:




Diagnostic Chart

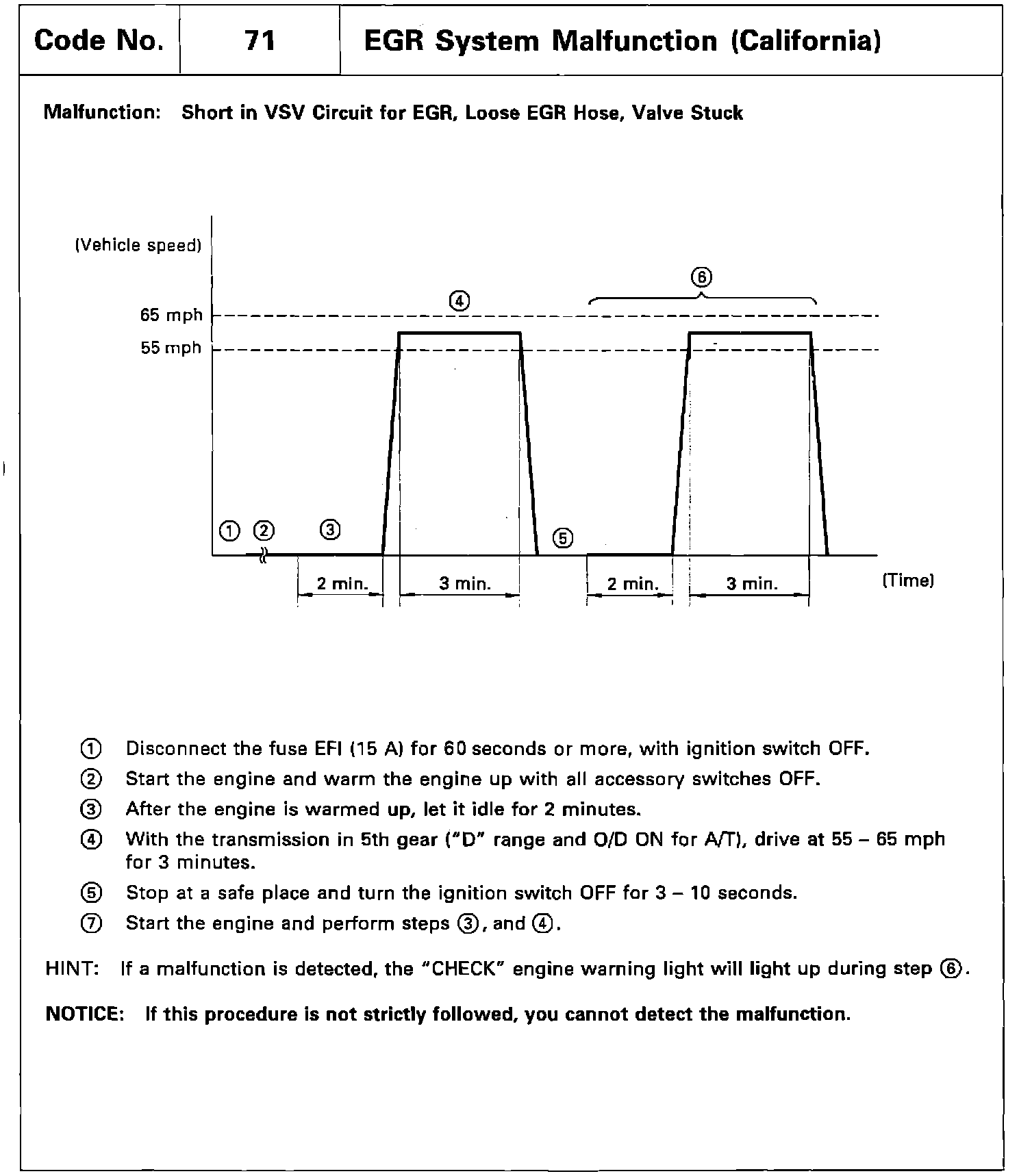

Code 71 Detection Driving Pattern, CA:




Detection Driving Pattern
