Celica L4-132 2164cc 2.2L DOHC (5S-FE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Diagrams
>>
Electrical Diagrams
>>
Wiring Diagrams
Wiring Diagrams

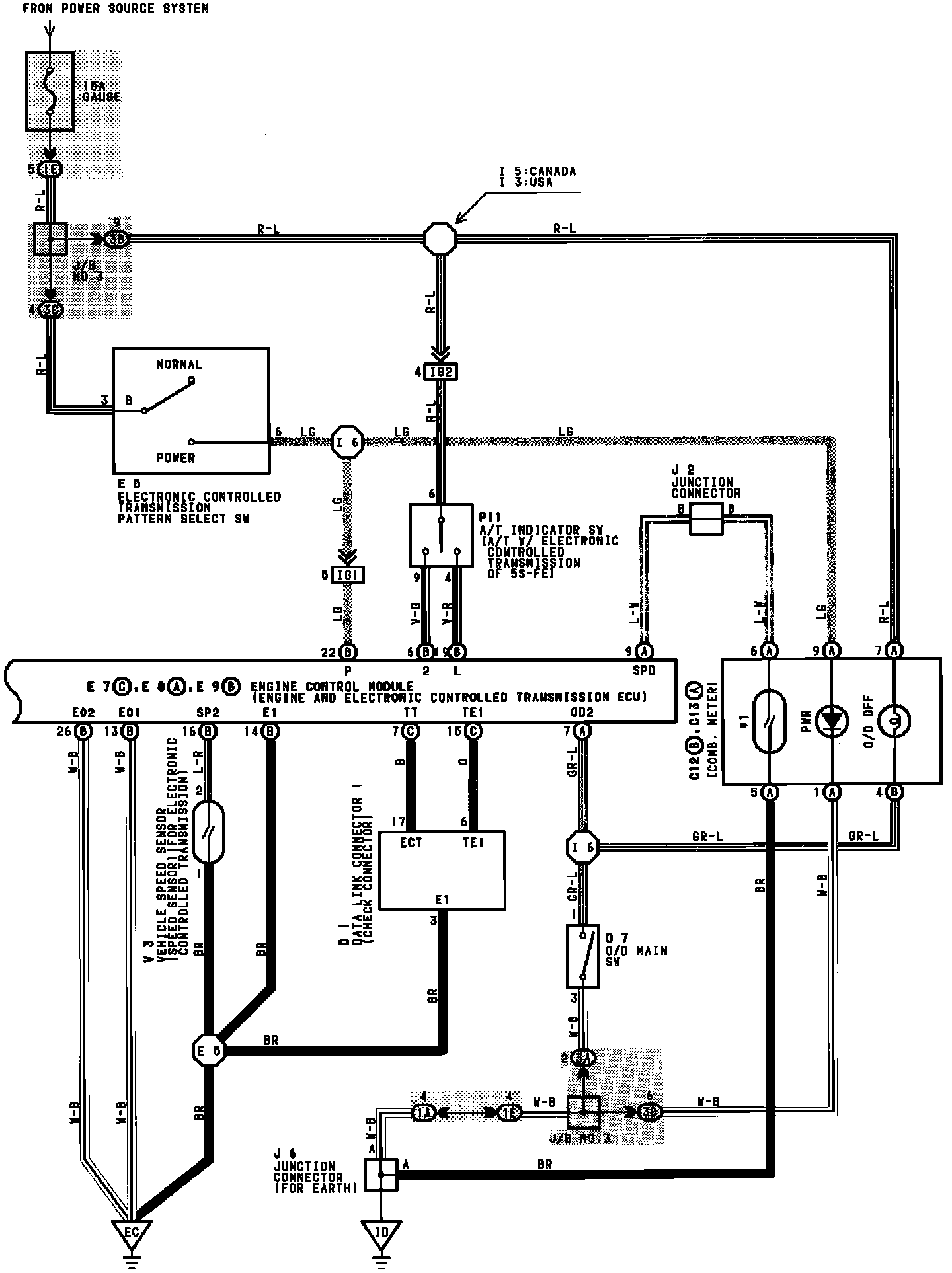

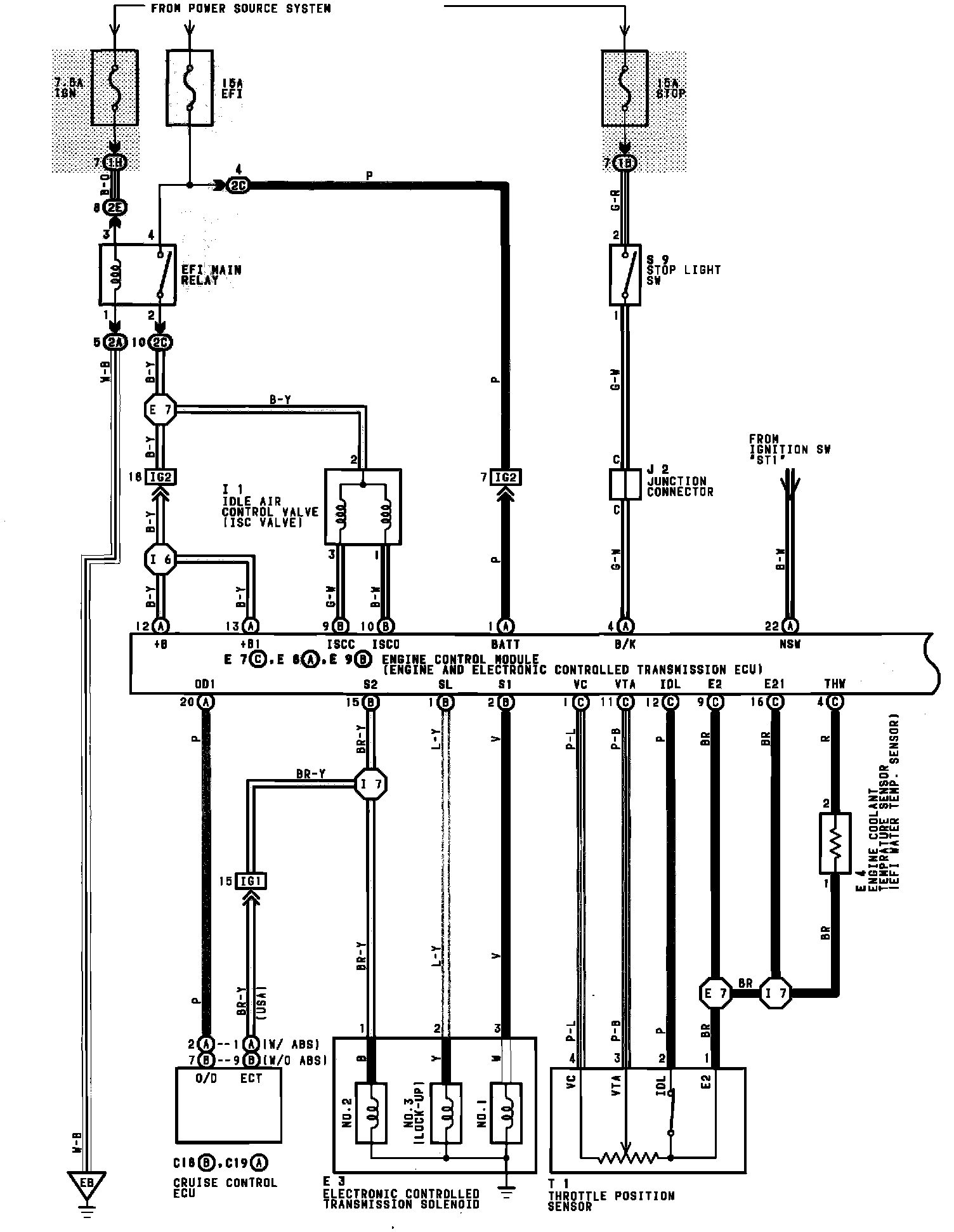

Electronically Controlled Transmission:
Electronically Controlled Transmission:
