Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Toyota
>>
1993
>>
Celica L4-132 2164cc 2.2L DOHC (5S-FE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Diagrams
>>
Electrical Diagrams
>>
Circuit Service Hints
Circuit Service Hints

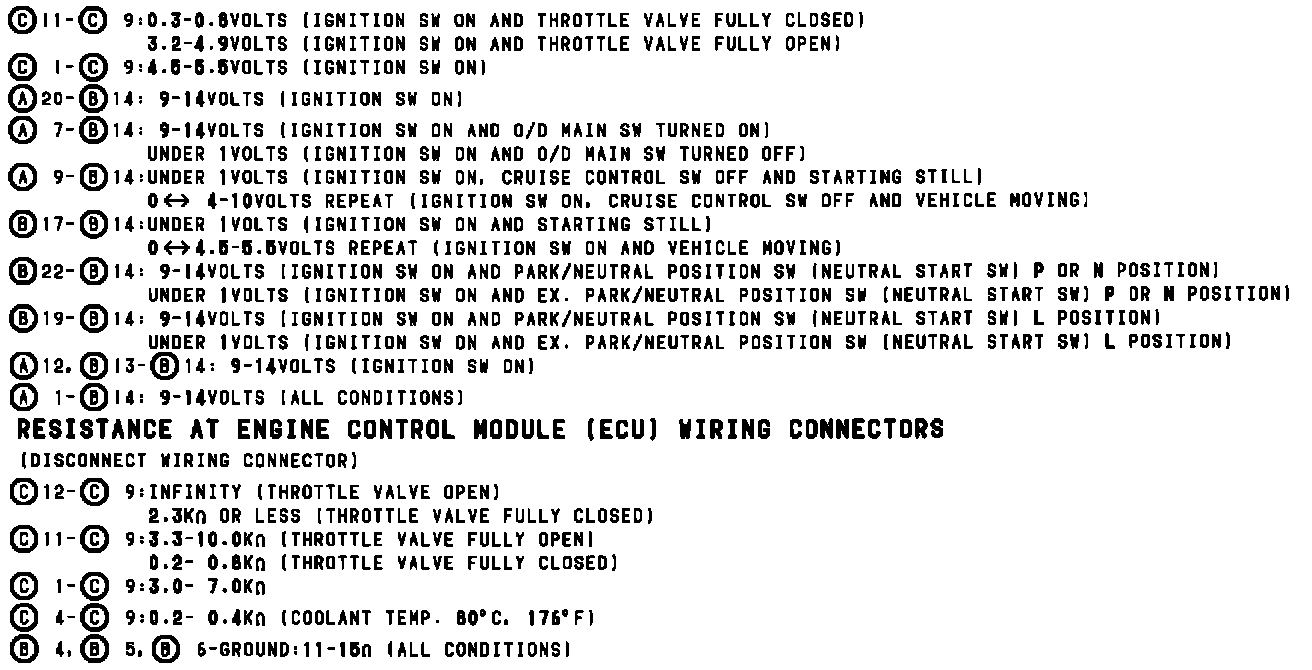

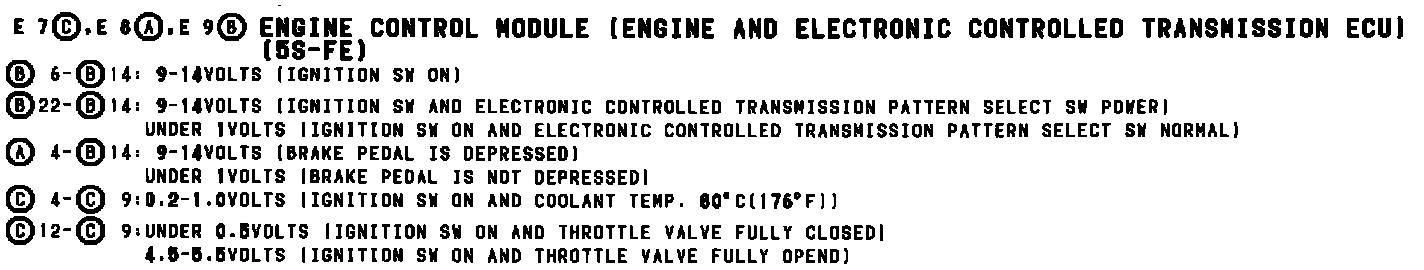

Service Hints:
Service Hints:
