Drivetrain - Rear Axle Bearing Standardization

REL: DRIVELINE/ DIFFERENTIAL
NO.: DL93-001
DATE: NOVEMBER 12, 1993
MODEL: ST, AT

REAR AXLE BEARING

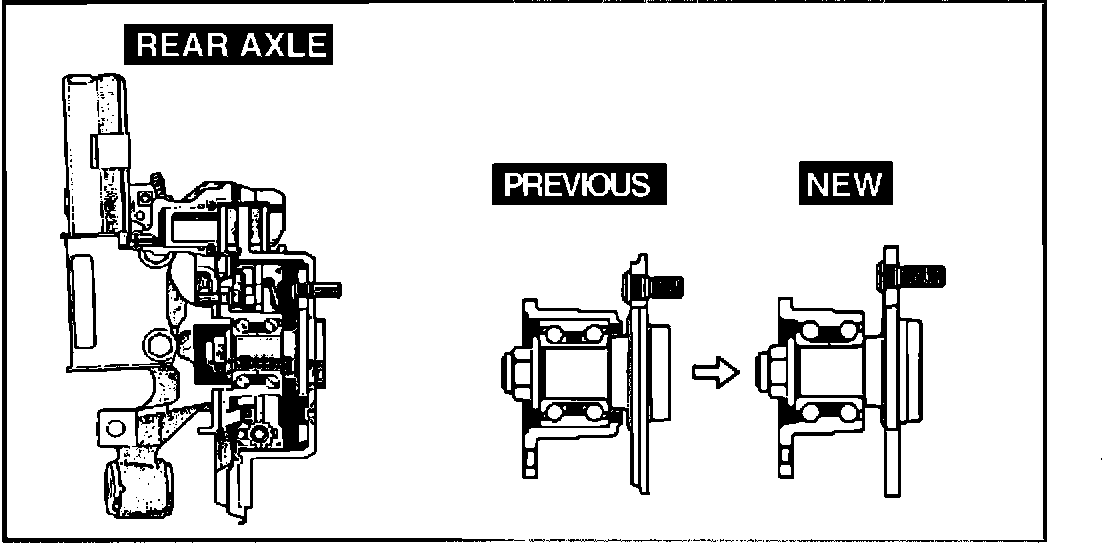

For parts standardization, the rear axle bearing has been changed as shown.

Because the outer race has been incorporated into the hub, wheel bearings are no longer available as separate replacement parts. The entire hub / bearing assembly must be replaced.

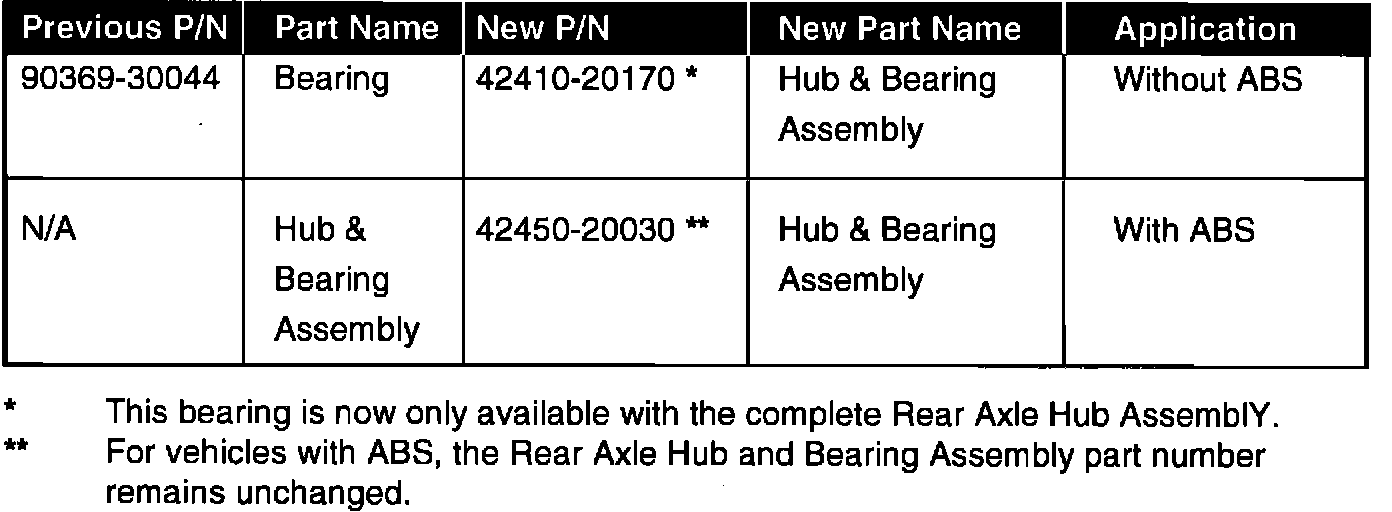

PART NUMBER INFORMATION:

REAR AXLE BEARING

REPAIR PROCEDURE:

The new style Rear Axle Hub and Bearing Assembly can be used on all ST and AT Celica's. The previous part number Rear Axle Bearing can be used only on vehicles built before the production change.

PRODUCTION EFFECTIVE:

VIN Date

JT2AT86F#P0112788 July 1993

JT2ST8###P0149738 July 1993
