Celica L4-132 2164cc 2.2L DOHC (5S-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Antilock Brakes / Traction Control Systems
>>
ABS Light
ABS Light

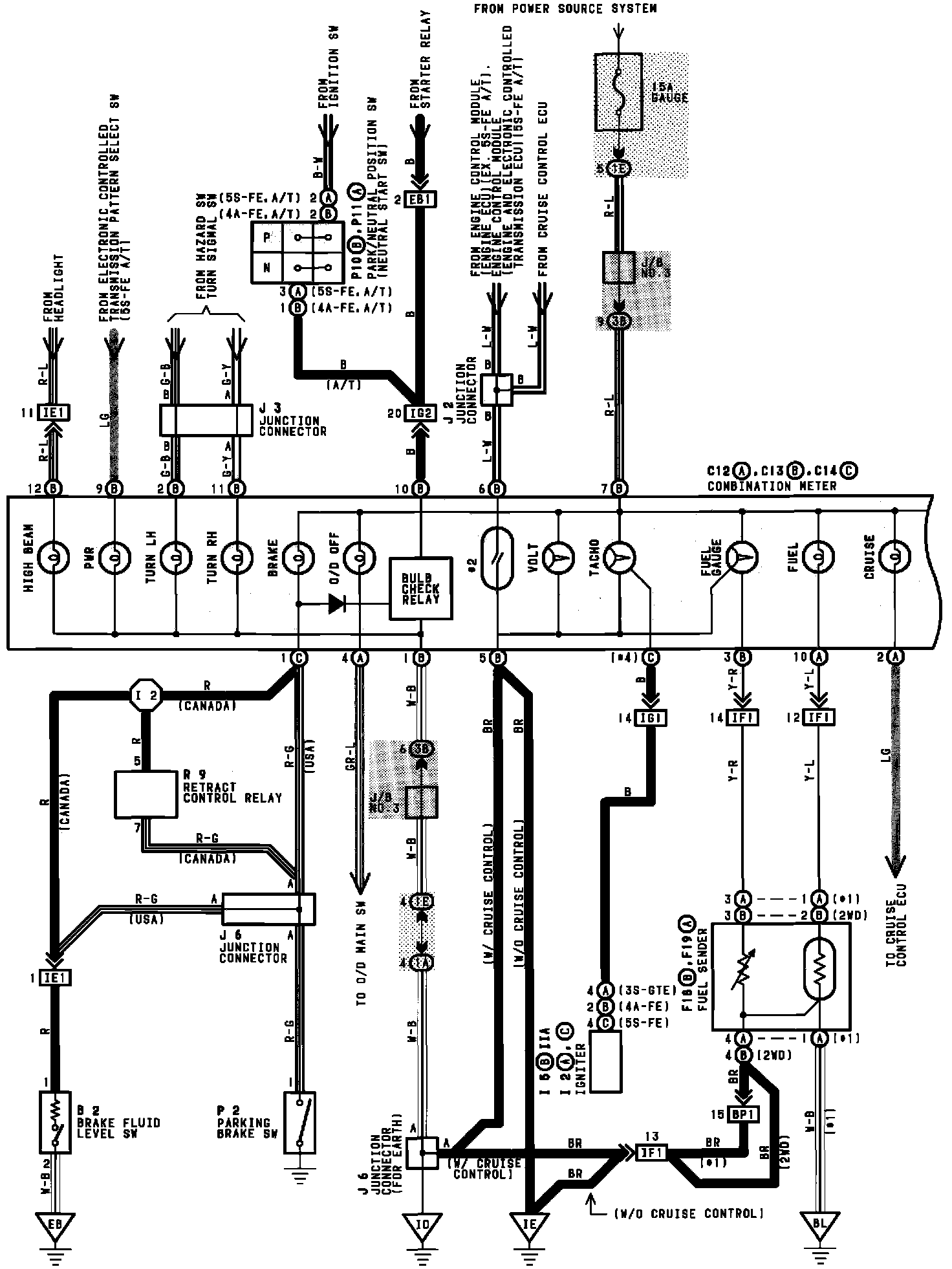

Instrument Panel (Combination Meter):
Instrument Panel (Combination Meter):
