Home
>>
Toyota
>>
1993
>>
Celica L4-132 2164cc 2.2L DOHC (5S-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Antilock Brakes / Traction Control Systems
>>
System Diagram
>>
Connector ID
Connector ID

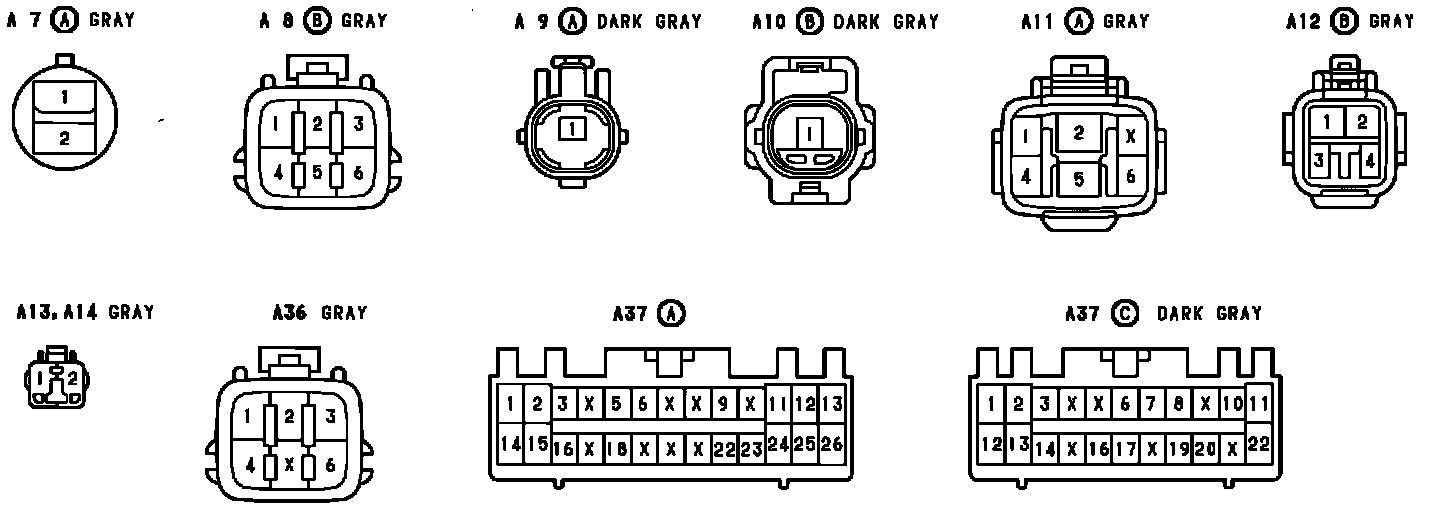

Connector Identification:

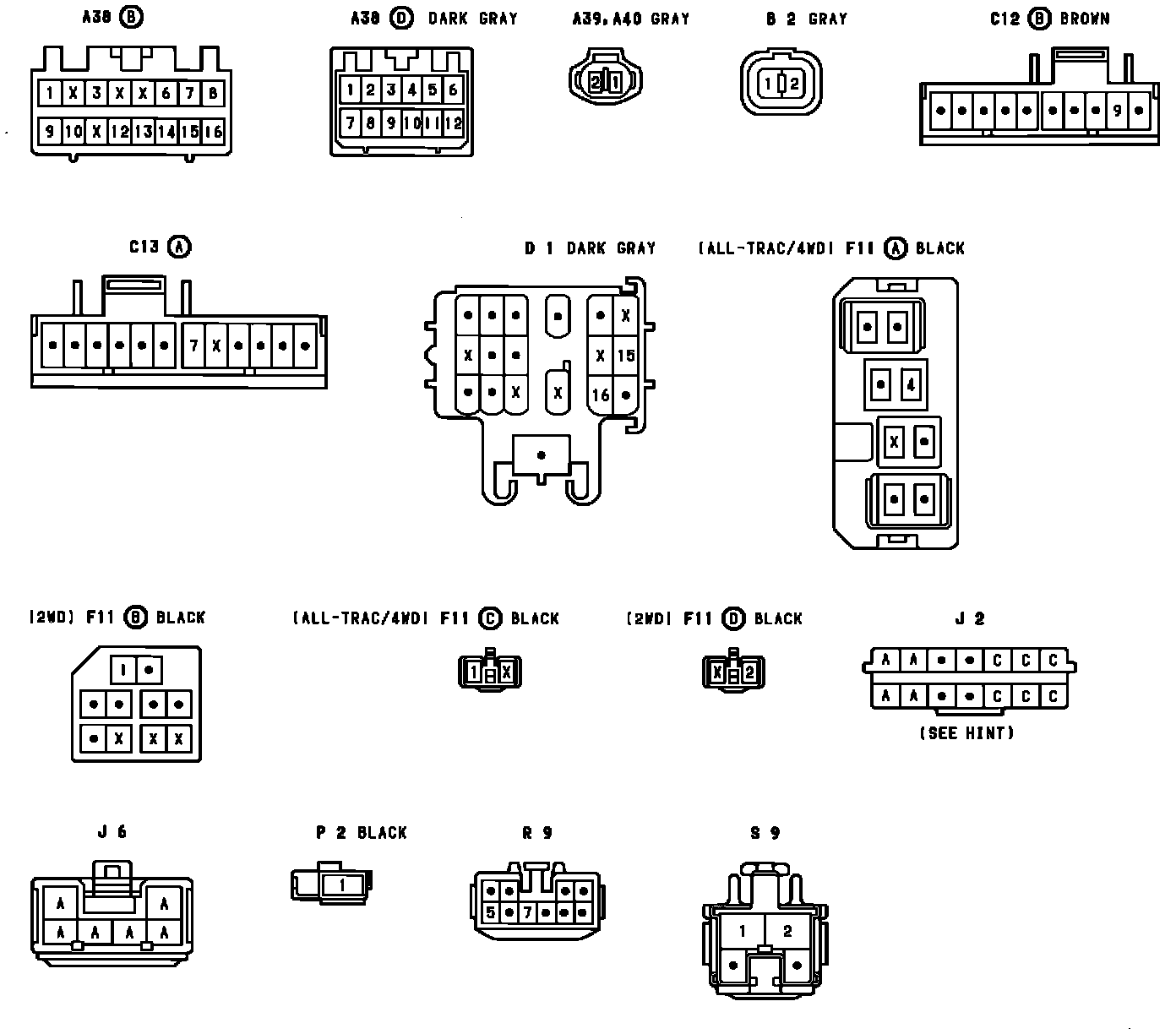

Connector Identification:
