Home >> Toyota >> 1993 >> Camry Wagon V6-180.5 2959cc 3.0L DOHC (3VZ-FE) >> Repair and Diagnosis >> Powertrain Management >> Relays and Modules - Powertrain Management >> Relays and Modules - Computers and Control Systems >> Engine Control Module >> Testing and Inspection >> Back Up Power Source Circuit

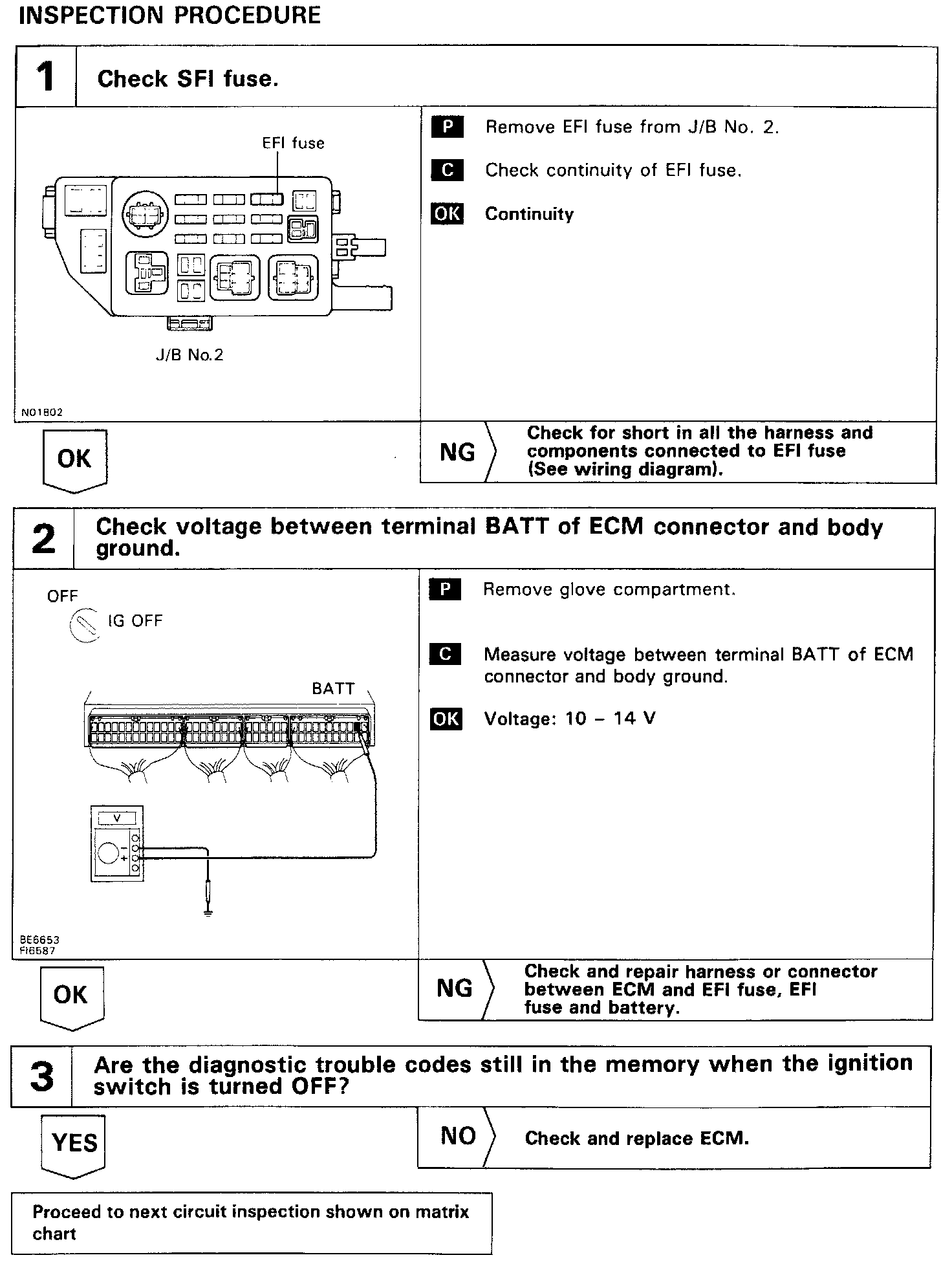

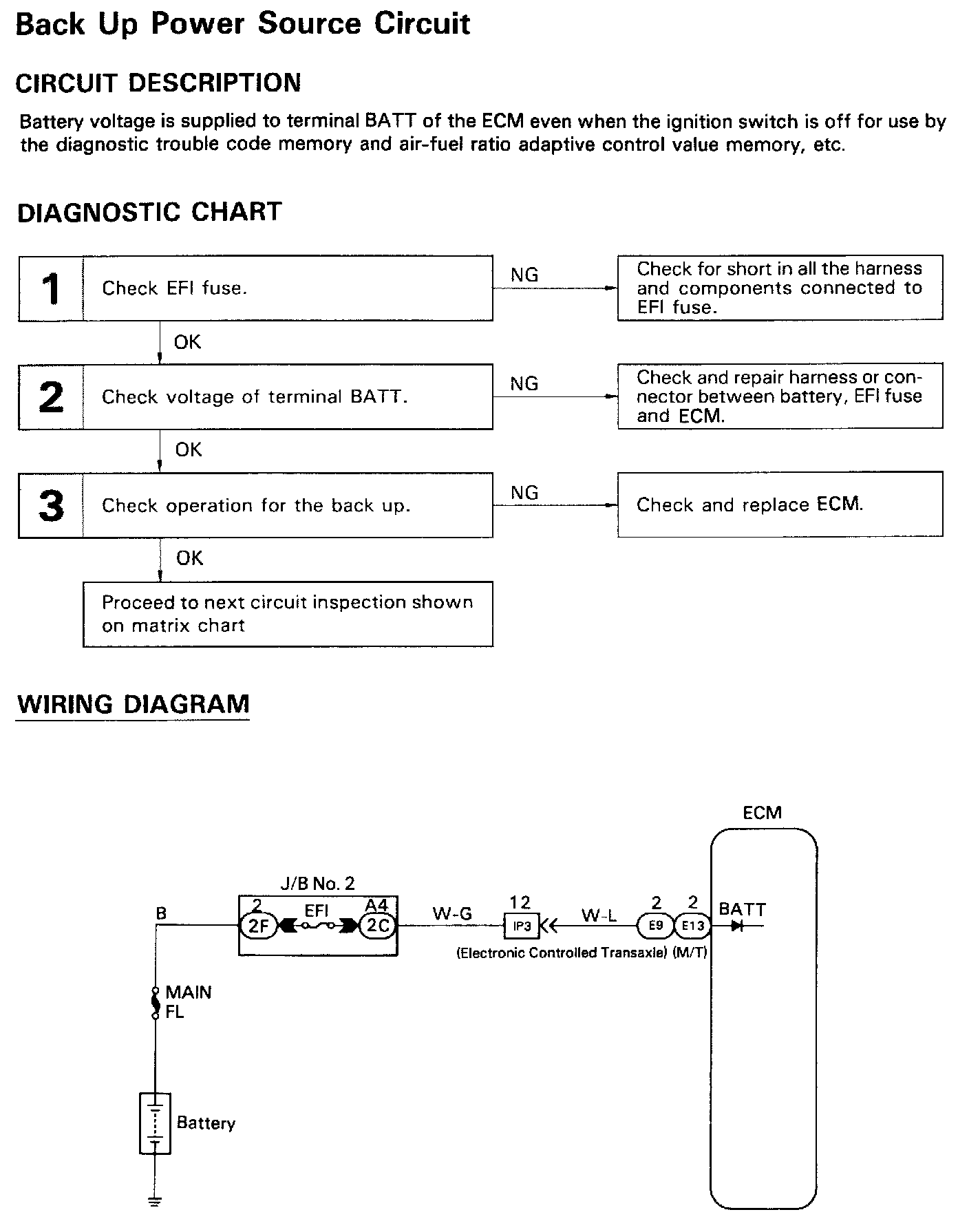

Back Up Power Source Circuit
