Camry Wagon V6-180.5 2959cc 3.0L DOHC (3VZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Powertrain Management
>>
Engine Control Module
Engine Control Module

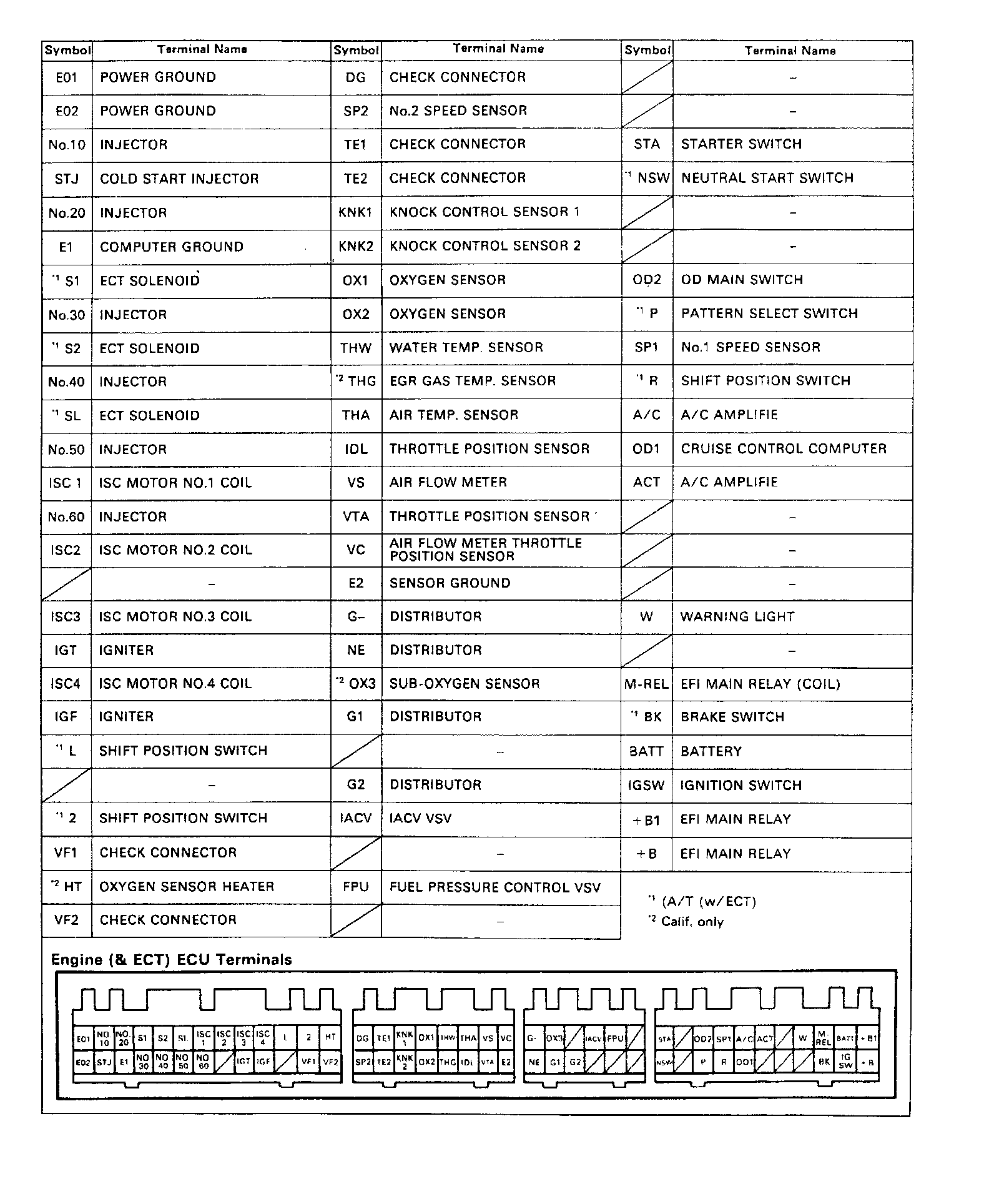

ECM Component Pin-Outs:
