Fuel Pressure Control Solenoid: Testing and Inspection

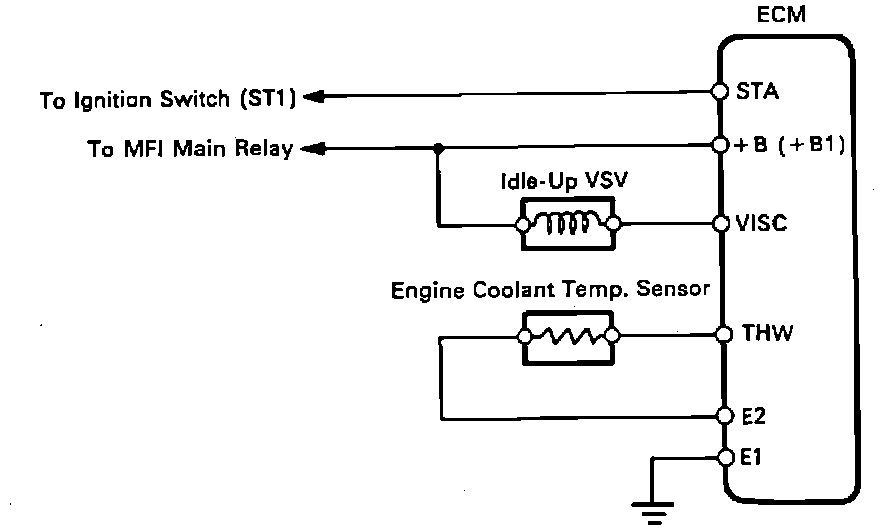

Fuel Pressure VSV Circuit Diagram:

Circuit Diagram

Fuel Pressure VSV Inspection - Checking Resistance:

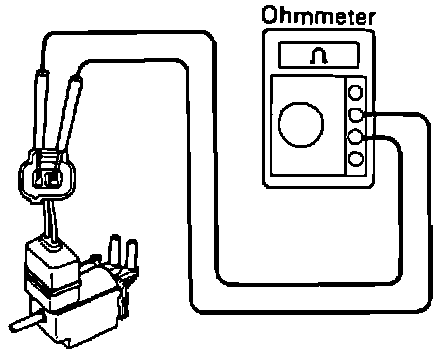

- Using an ohmmeter, check that there is continuity between the terminals.

Resistance: 33 - 39 ohms

- If there is no continuity, replace the VSV.

Fuel Pressure VSV Inspection - Checking For Short:

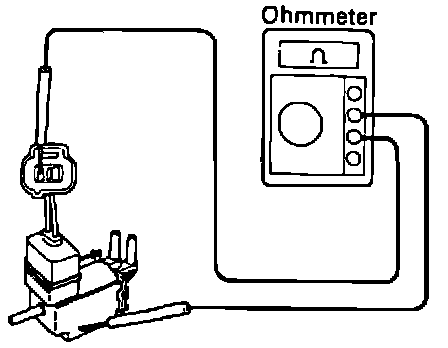

- Using an ohmmeter, check that there is no continuity between each terminal and body.

- If there is continuity, replace the VSV.

Fuel Pressure VSV Inspection - Checking Operation:

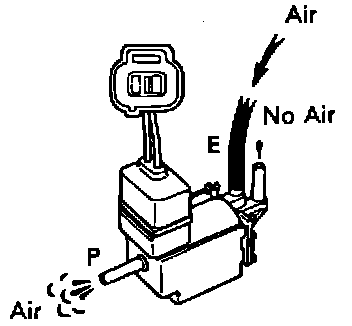

- Check that air flows from pipes E to P.

Fuel Pressure VSV Inspection - Checking Operation:

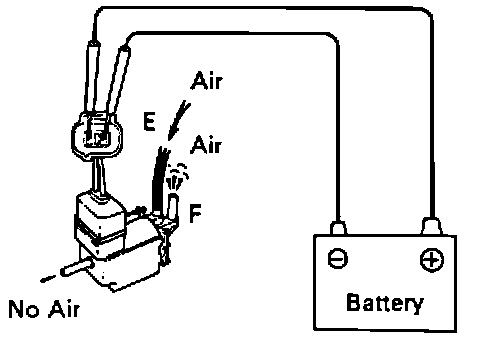

- Apply battery voltage across the terminals. Check that air flows from pipes E to F.
- If operation is not as specified. replace the VSV.
