Tercel Sedan 4-Door L4-1456cc 1.5L SOHC (3E-E)
>>
Repair and Diagnosis
>>
Locations
>>
Connector Locations
>>
Body
Body

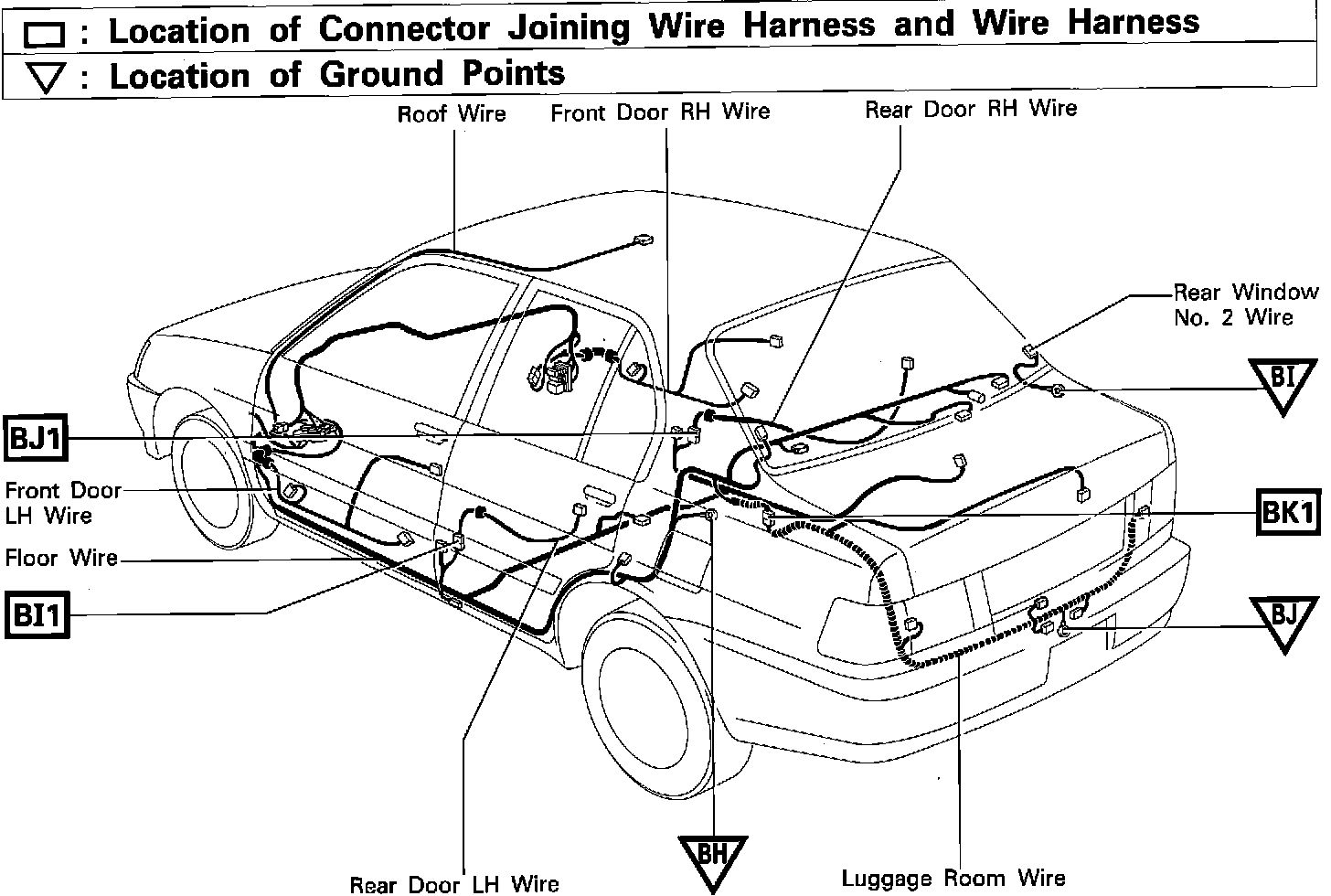

Harness To Harness Connector And Ground Point Locations:
CONNECTOR LOCATION

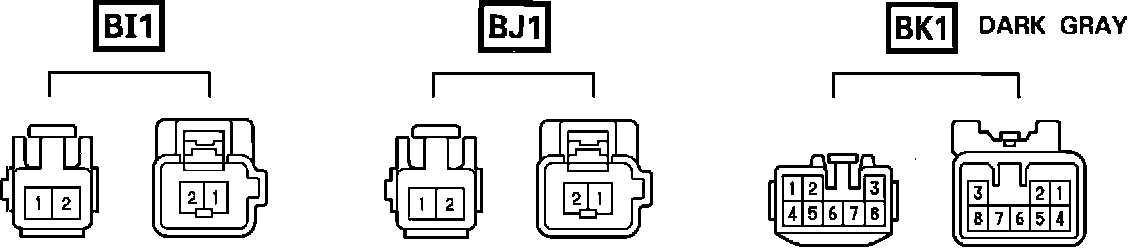

Connector Identification:
CONNECTOR IDENTIFICATION
