Instrument Panel and Center Console

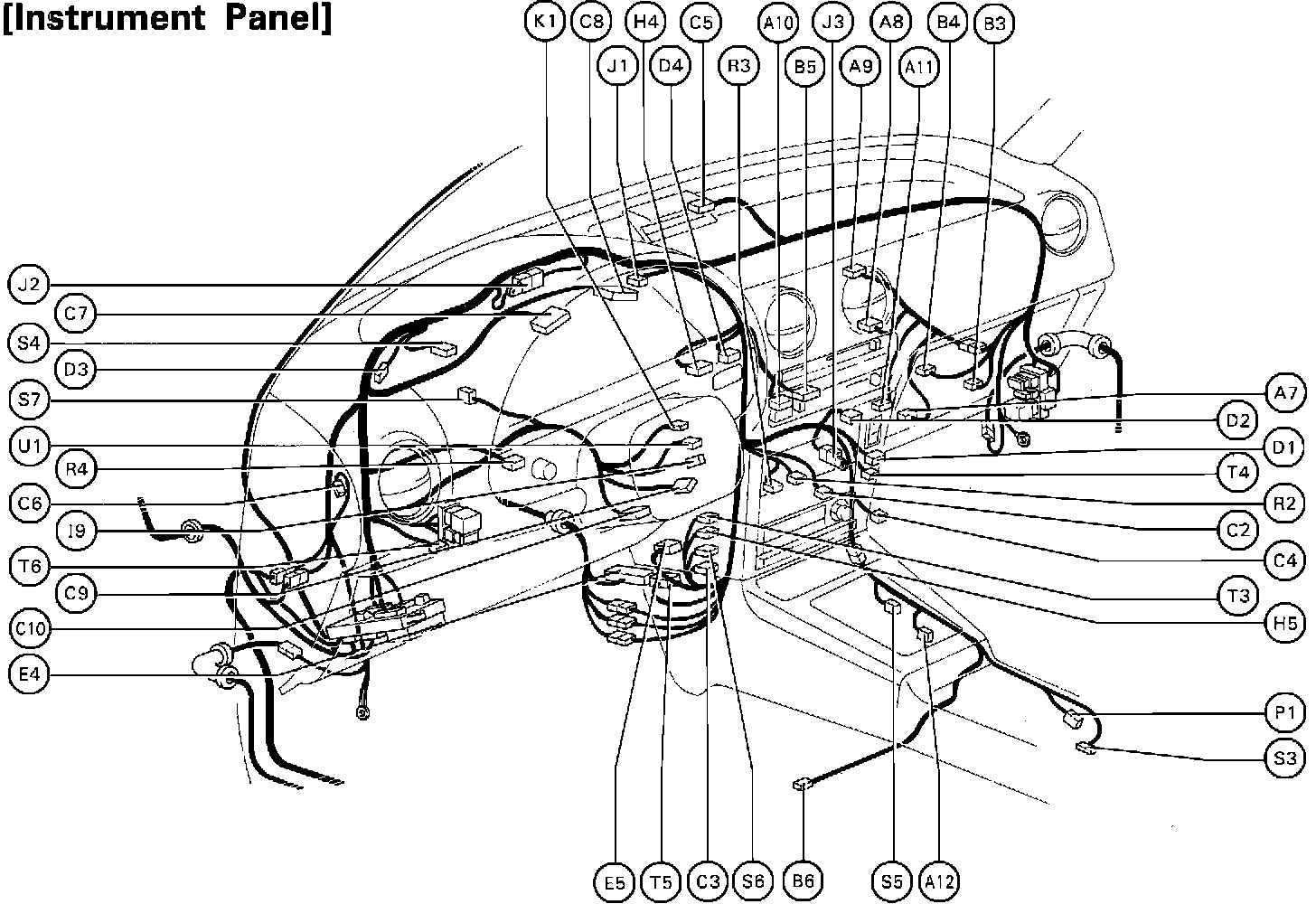

Instrument Panel Component Locations:

A 7 A/C Amplifier
A 8 A/C Dual Pressure SW
A 9 A/C Magnetic Clutch Relay
A 10 A/C SW
A 11 A/C Thermistor
A 12 A/T Indicator Light

B 3 Blower Motor
B 4 Blower Resistor
B 5 Blower SW
B 6 Buckle SW

C 2 Cigarette Lighter
C 3 Circuit Opening Relay (w/ Theft Deterrent System)
C 4 Circuit Opening Relay (w/o Theft Deterrent System)
C 5 Clock
C 6 Clutch Start SW (M/T)
C 7 Combination Meter
C 8
c 9 Combination SW
c 10

D 1 Daytime Running Light Relay
D 2 Defogger SW
D 3 Diode (for Headlight)
D 4 Diode (w/ Theft Deterrent System)

E 4 Engine ECU
E 5

H 4 Hazard SW
H 5 Headlight Relay (w/ Theft Deterrent System)

I 9 Ignition SW

J 1 Junction Connector
J 2 Junction Connector (for Earth)
J 3

K 1 Key Interlock Solenoid

P 1 Parking Brake SW

R 2 Radio and Player
R 3
R 4 Rheostat

S 3 Seat Belt Retractor SW (for USA)
S 4 Seat Belt Warning Relay
S 5 Shift Lock ECU
S 6 Starter Relay
S 7 Stop Light SW

T 3 Taillight Relay (w/ Theft Deterrent System)
T 4 Taillight Relay (w/o Theft Deterrent System)
T 5 Theft Deterrent ECU
T 6 Turn Signal Flasher

U 1 Unlock Warning SW
