Engine Compartment

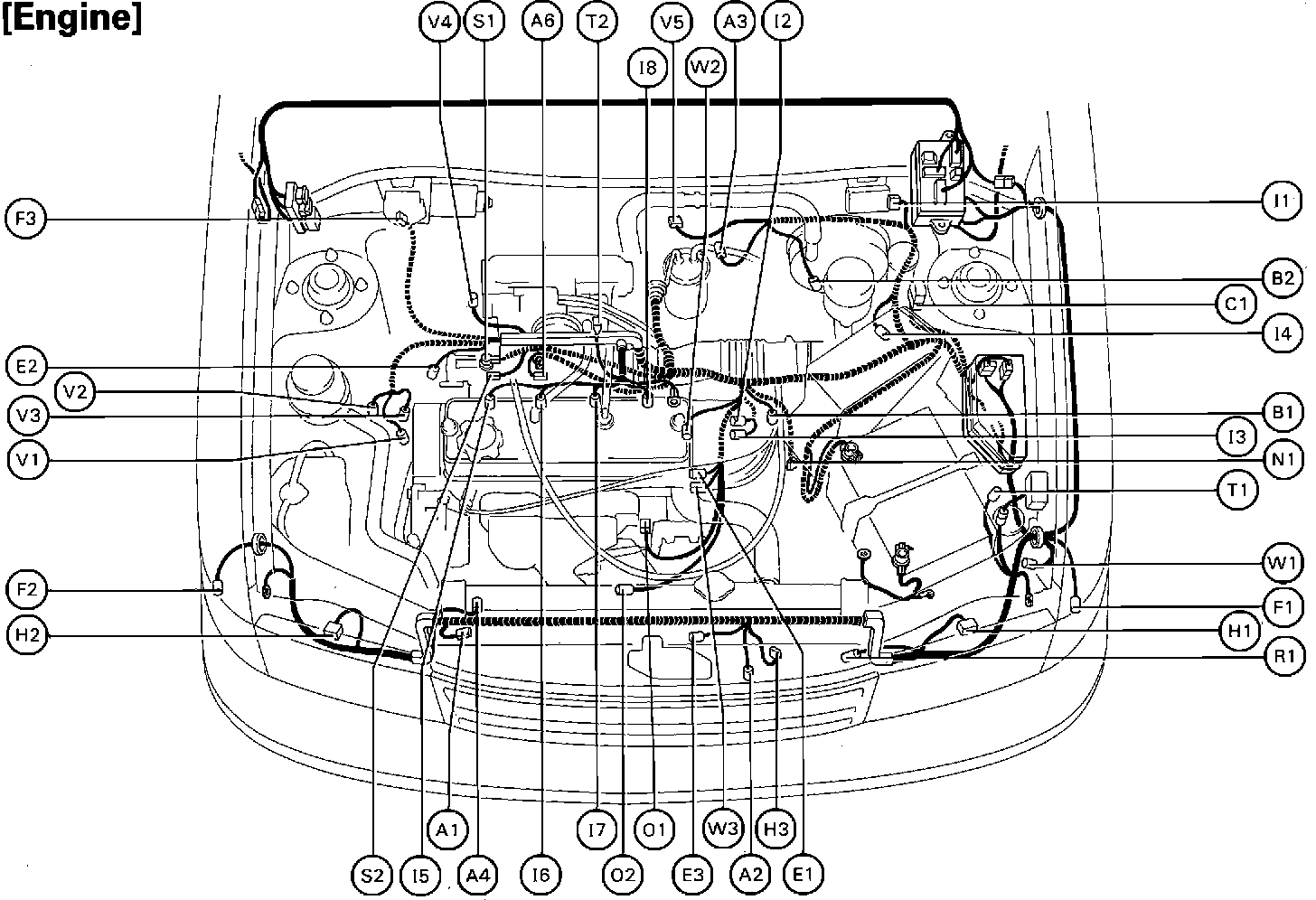

Engine Compartment Component Locations:

A 1 A/C Condenser Fan Motor
A 2 A/C High Pressure SW (w/ A/C) or Short Pin (w/o A/C)
A 3 A/C Idle-Up VSV
A 4 A/C Magnetic Clutch and Compressor Sensor
A 5 Alternator
A 6

B 1 Back-Up Light SW (M/T)
B 2 Brake Fluid Level SW

C 1 Check Connector

E 1 EFI Water Temp. Sensor
E 2 EGR Gas Temp. Sensor (for California)
E 3 Engine Hood Courtesy SW

F 1 Front Turn Signal Light and Clearance Light LH
F 2 Front Turn Signal Light and Clearance Light RH
F 3 Front Wiper Motor

H 1 Headlight LH
H 2 Headlight RH
H 3 Horn

I 1 Igniter
I 2 Ignition Coil and Distributor
I 3

I 4 In Air Temp. Sensor
I 5 Injector No. 1
I 6 Injector No. 2
I 7 Injector No. 3
I 8 Injector No. 4

N 1 Neutral Start SW and Back-Up Light SW (A/T)

O 1 Oil Pressure SW
O 2 Oxygen Sensor

R 1 Radiator Fan Motor

S 1 Starter
S 2

T 1 Theft Deterrent Horn
T 2 Throttle Position Sensor

V 1 VSV (for EGR)
V 2 VSV (for Fuel Pressure Up)
V 3 VSV (for Idle-Up)
V 4 VSV (for Throttle Opener)
V 5 Vacuum Sensor

W 1 Washer Motor
W 2 Water Temp. SW (for Radiator Fan)
W 3 Water Temp. Sender
