Body

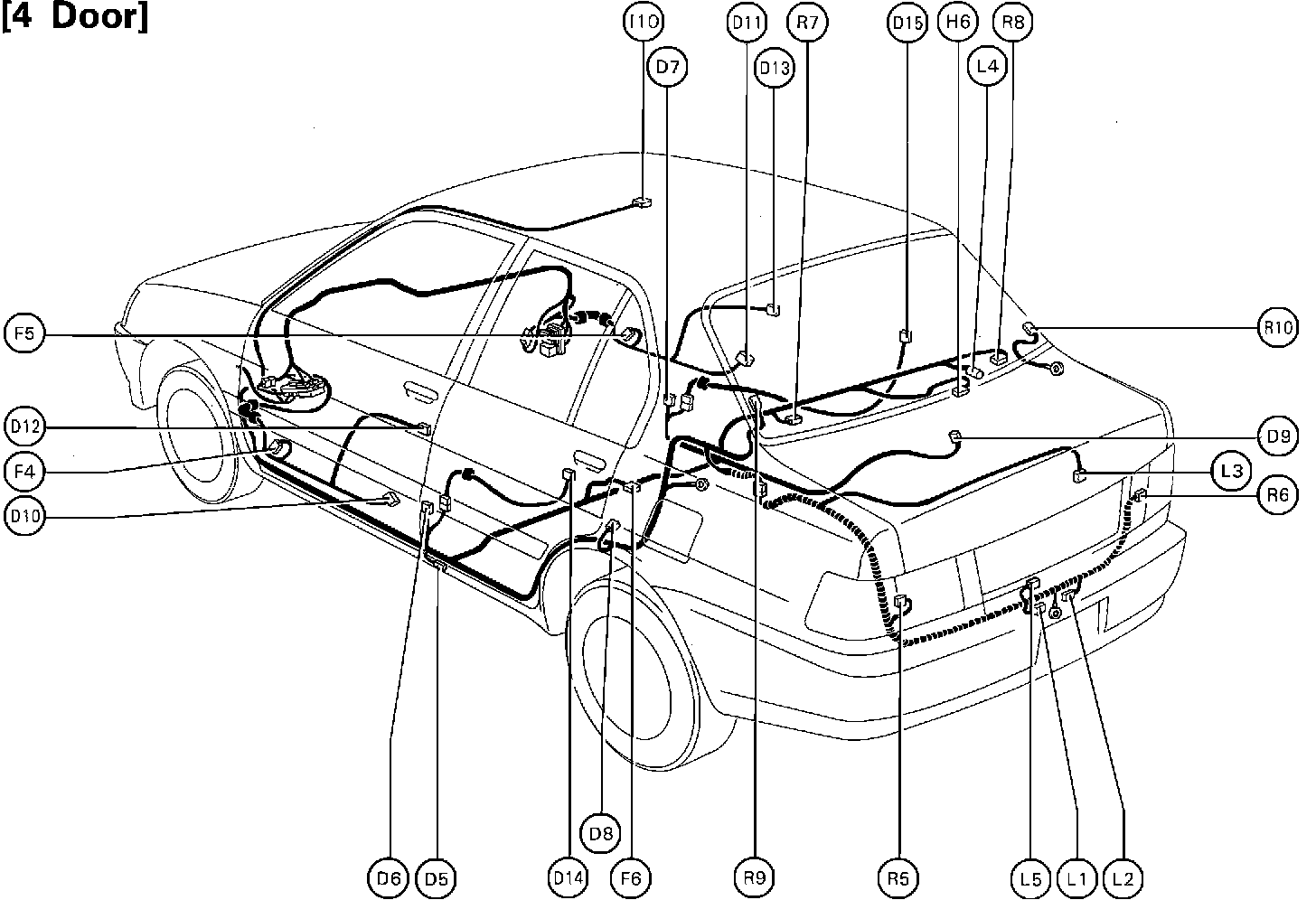

Body Component Locations 4-door:

D 5 Diode (w/ Theft Deterrent System)
D 6 Door Courtesy SW Front LH
D 7 Door Courtesy SW Front RH
D 8 Door Courtesy SW Rear LH
D 9 Door Courtesy SW Rear RH
D 10 Door Key Lock and Unlock SW LH (w/ Theft Deterrent
System)
D 11 Door Key Lock and Unlock SW RH (w/ Theft Deterrent
System)
D 12 Door Unlock Detection SW Front LH (w/ Theft
Deterrent System)
D 13 Door Unlock Detection SW Front RH (W/ Theft
Deterrent System)
D 14 Door Unlock Detection SW Rear LH (w/ Theft Deterrent
System).
D 15 Door Unlock Detection SW Rear RH (w/ Theft Deterrent
System)

F 4 Front Speaker LH
F 5 Front Speaker RH
F 6 Fuel Sender and Fuel Pump

H 6 High Mount Stop Light
