Blower Motor Switch: Service and Repair

BLOWER SPEED CONTROL SWITCH SWITCH REMOVAL
1. DISCONNECT NEGATIVE (-) CABLE FROM BATTERY.





2. REMOVE A/C CONTROL PANEL.

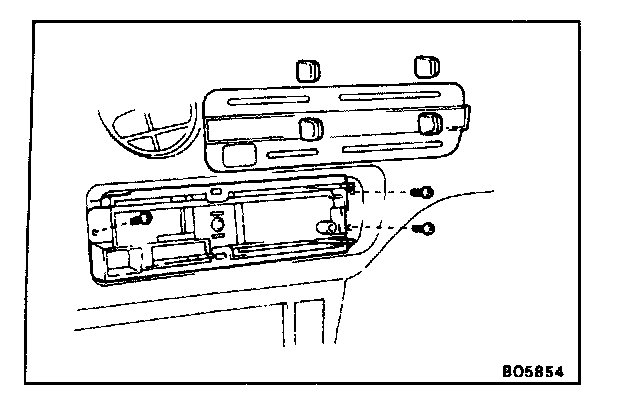

3. REMOVE AUDIO AND ASH TRAY.

4. REMOVE BLOWER SPEED CONTROL SWITCH.
(a) Remove the illumination light from the A/C control assembly.

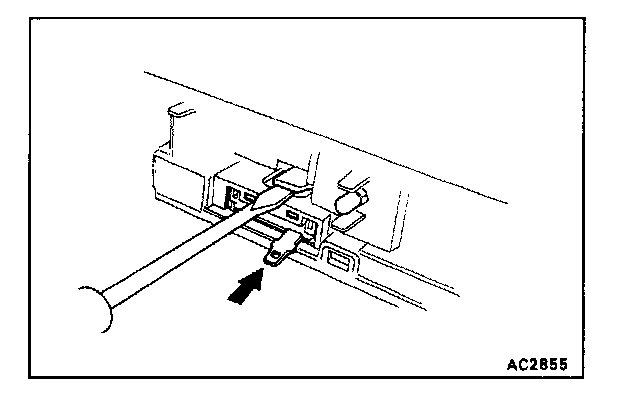

(b) Using a screwdriver, pry loose the clip and push out the blower speed control switch to rear of the A/C control assembly.

(c) Disconnect the connector from the blower speed control switch.
