Engine Compartment
Engine Compartment

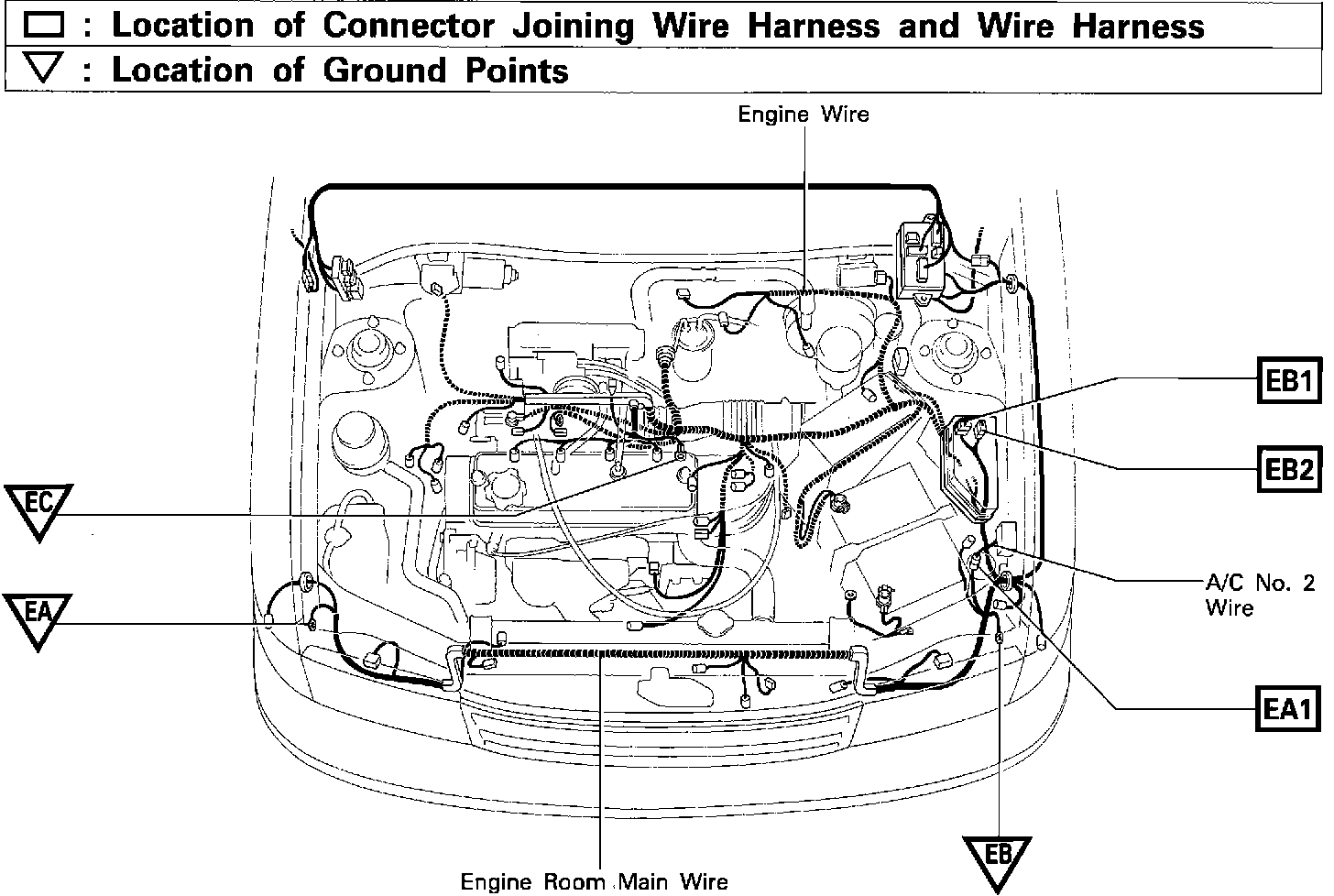

Harness To Harness Connector And Ground Point Locations:
CONNECTOR LOCATION

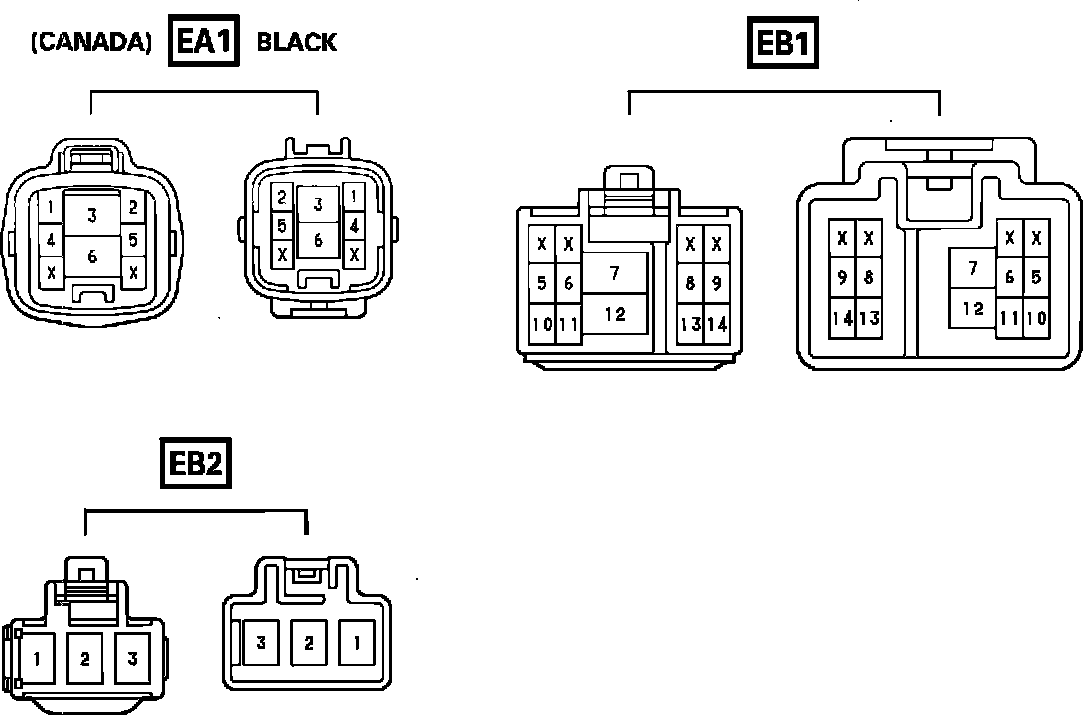

Connector Identification:
CONNECTOR IDENTIFICATION
