Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Toyota
>>
1992
>>
Tercel Sedan 4-Door L4-1456cc 1.5L SOHC (3E-E)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Powertrain Management
>>
Engine Control Module
Engine Control Module

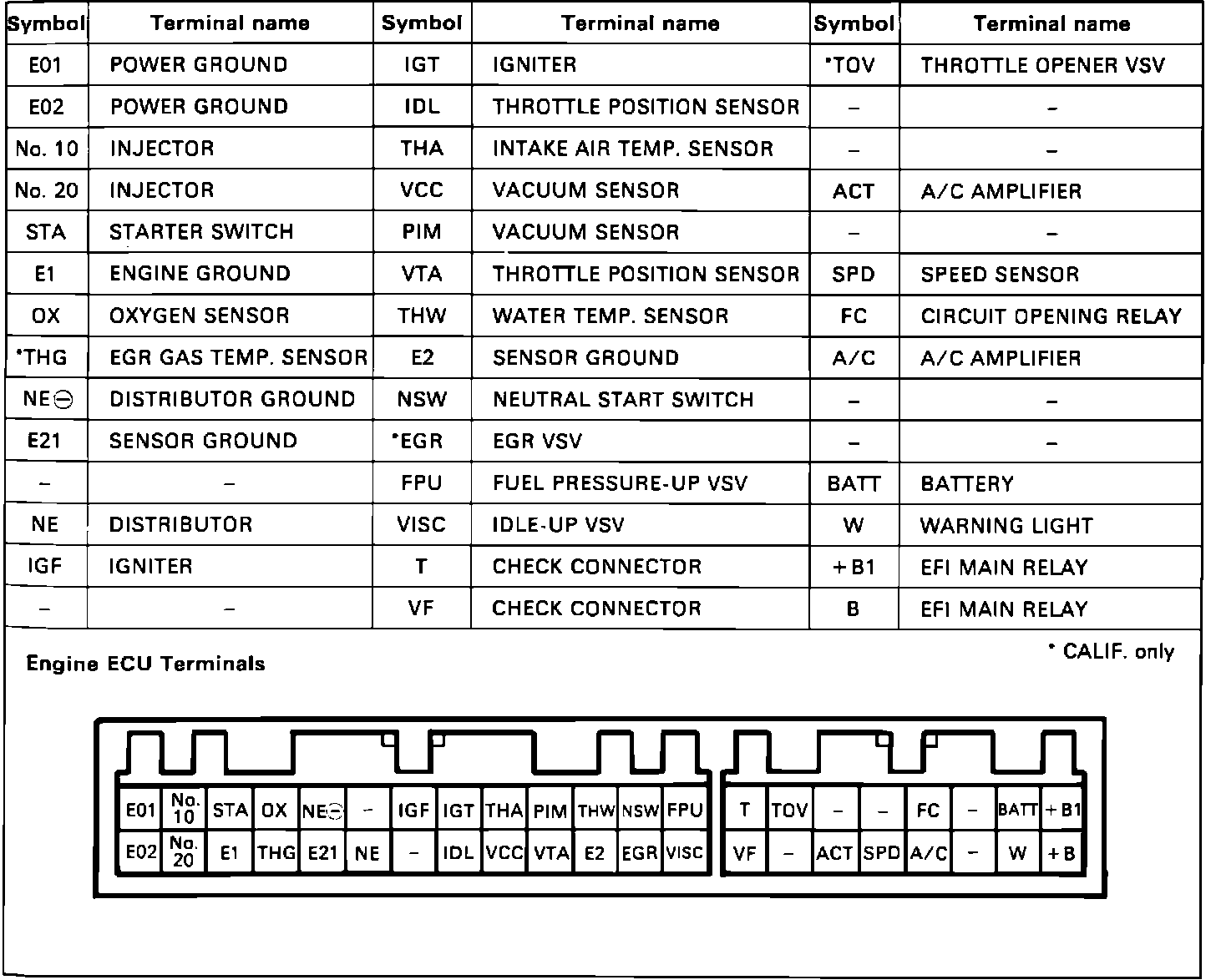

ECU Terminal Pin-outs:
