Front Airbag Sensor

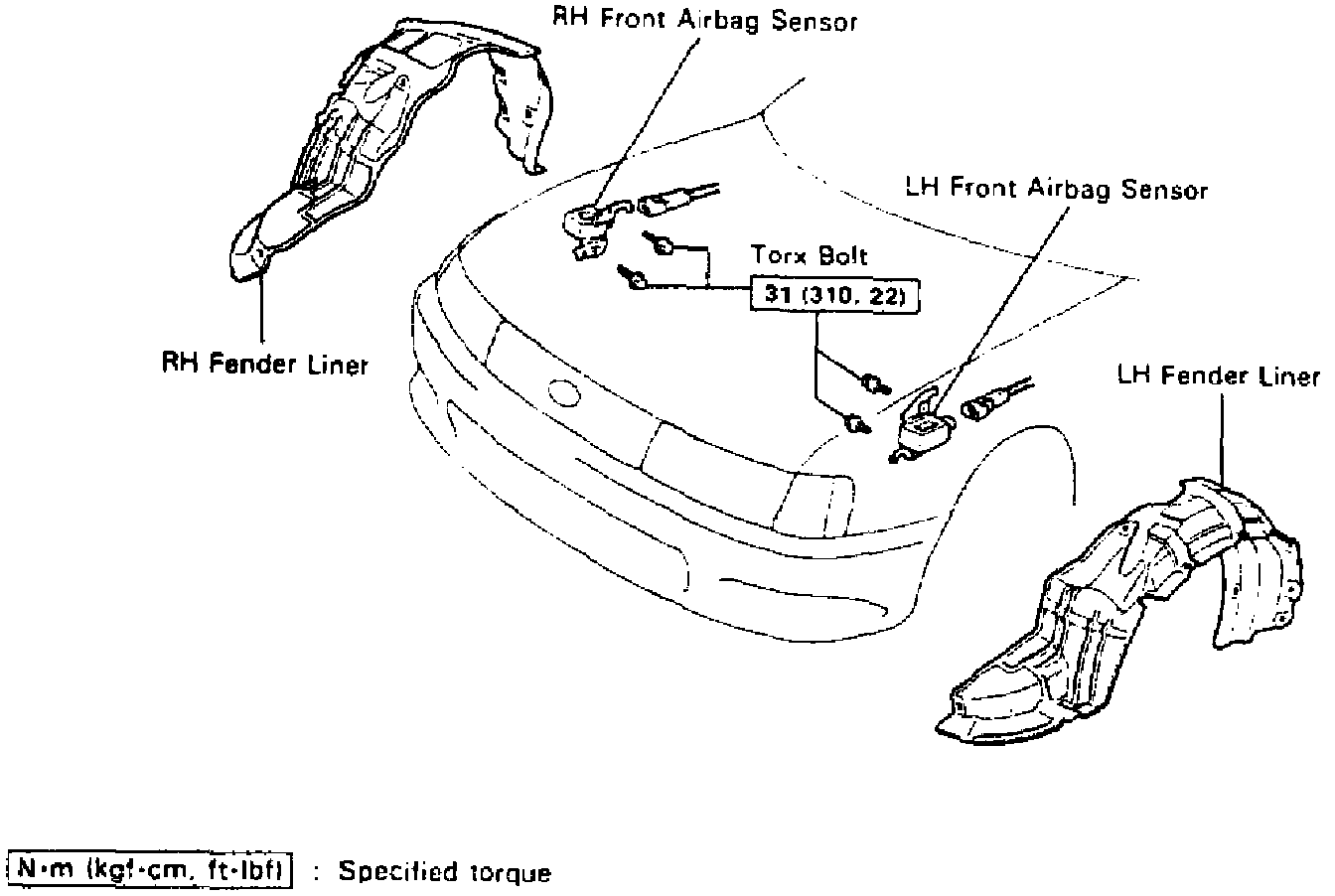

Fig. 57 Front Airbag Sensor Replacement.:

Fig 75 Front Airbag Sensor Replacement.:

1. Disable airbag system, refer to Air Bags and Seat Belts/Air Bags (Supplemental Restraint Systems)/Service and Repair.
2. Remove inner fender liners, Figs. 57, and 75.
3. Disconnect sensor electrical connectors.
4. Remove sensor attaching screws, then remove.

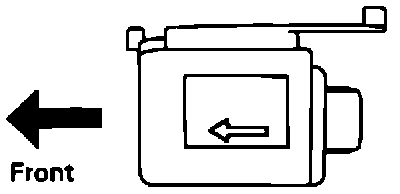

Fig. 59 Front Sensor Installation.:

Fig. 60 Front Sensor Installation.:

Fig 79 Front Sensor Installation.:

5. Reverse to install. Ensure sensor arrow is facing toward front of vehicle, Figs. 59, 60, and 79.
