A/T - Type T-II Fluid Only

REF.: TRANSMISSION & CLUTCH

NO.: TC93-001

DATE: JUNE 18, 1993

MODELS: JA82J (TURBO SUPRA)

A340Ei (TURBO SUPRA) AUTOMATIC TRANSMISSION FLUID

The new A340Ei automatic transmission used in the '93 Turbo Supra is designed to be used with a new Type T-II automatic transmission fluid only.

The Type T-II ATF cannot be mixed with Dexron(R) II, Type T or any other ATF.

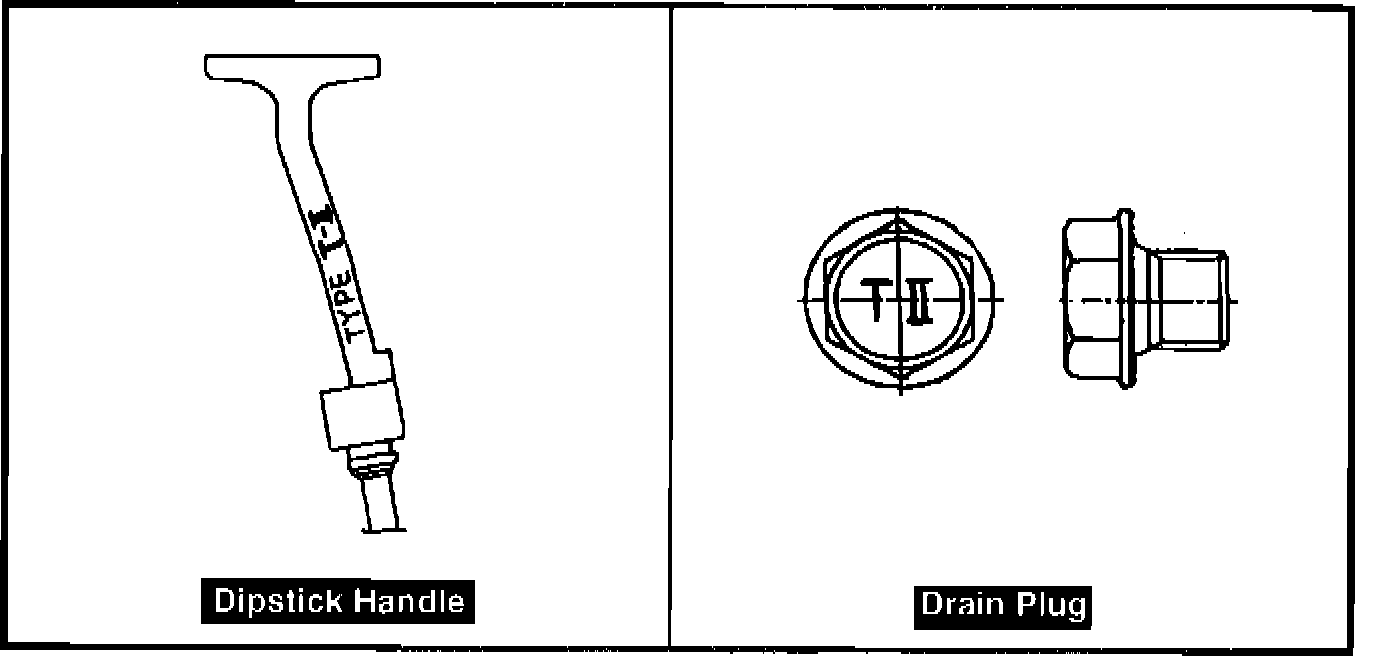

To identify vehicles that require the new Type T-II ATF, the handle of the automatic transmission dipstick and drain plug are marked as shown.

PART NUMBER INFORMATION:

Part Number Part Name

08886-80105* Type T-II, Automatic Transmission Fluid


* Sold in 4 Liter containers only.

Note:
The non-turbo Supra ATM A340E will continue to use Dexron(R) II.
