Component Test

OXYGEN SENSOR HEATER RESISTANCE

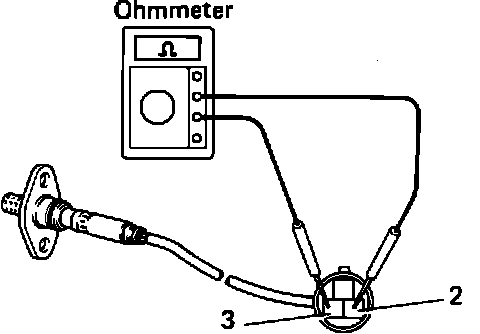

Using an Ohmmeter, measure the resistance between terminal 2 and 3.

Testing OS Heater Resistance:

Resistance (Cold): 3.0 - 3.6 ohms

If the heater element does not measure as specified, replace the Oxygen Sensor.
