Mechanical System Tests

NOTE: With this test, it can be determined whether the trouble lies within the electrical circuit or is a mechanical problem in the transmission.

ECT ECU Connector:

- Remove the cowl side trim of passenger side.

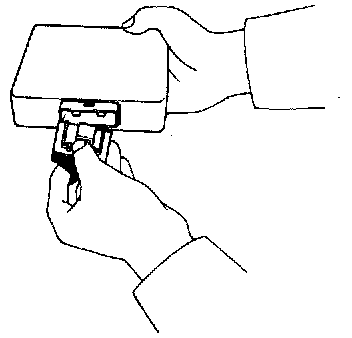

- With the engine OFF, disconnect the ECT ECU connector.

Manual Shifting Test:

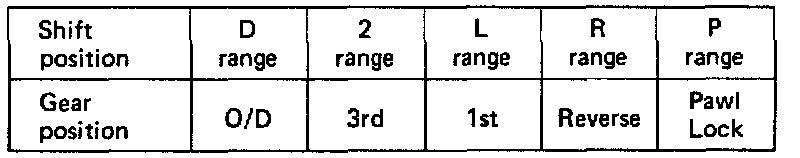

Table

- Check that the shift and gear positions correspond with the table.



NOTE: If the L, 2 and D range gear positions are difficult to distinguish, perform the following road test.

- While driving, shift through the L, 2 and D ranges. Check that the gear change corresponds to the shift position.
- If any abnormality is found in the above test, the problem lies in transmission itself.
- Reconnect the ECT ECU connector.
- Install the cowl side trim of passenger side.

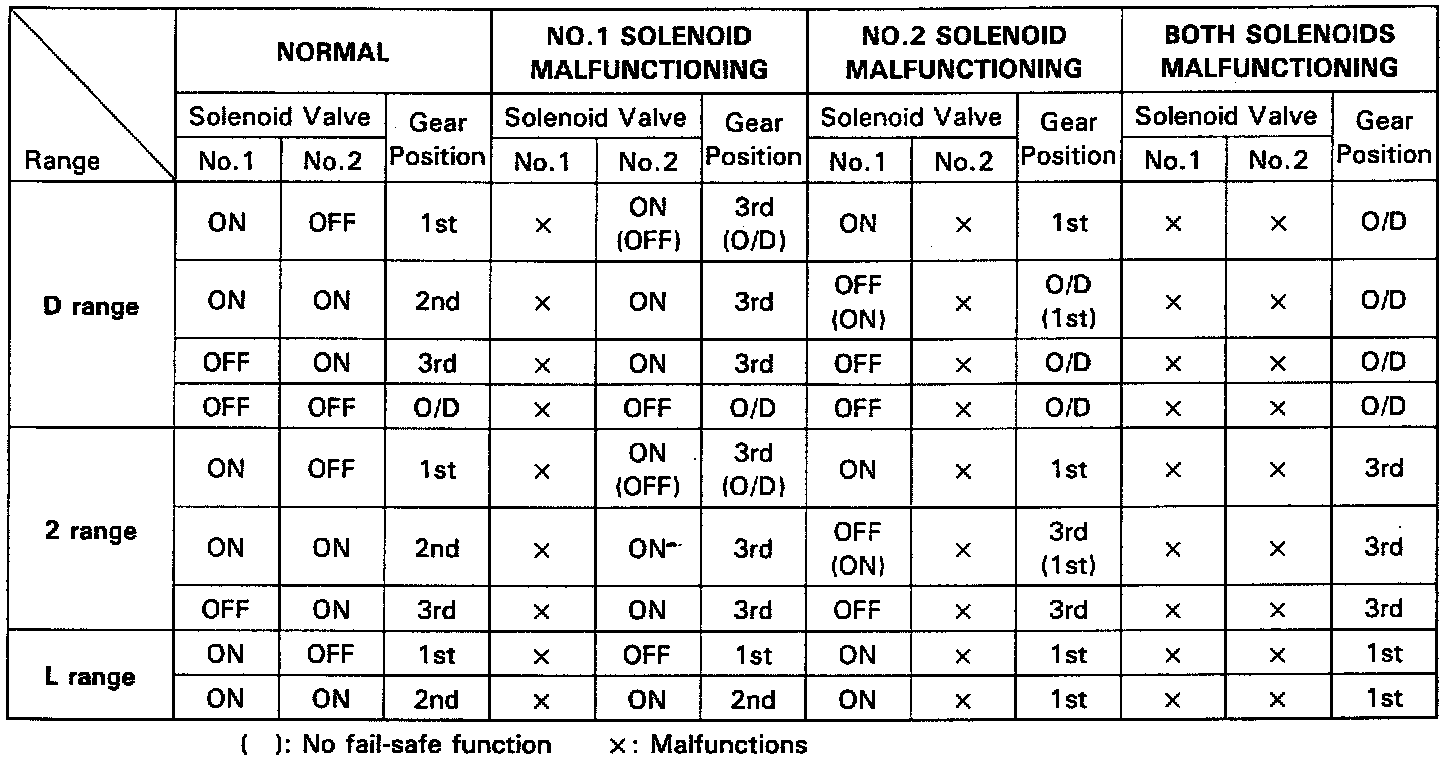

Posible Gear Position Versus Solenoid Operation:

Possible Gear Positions to Solenoid Operation
