Home >> Toyota >> 1992 >> Supra L6-3.0L DOHC (7M-GE) >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Lighting and Horns >> Horn Relay >> Locations

Horn Relay: Locations

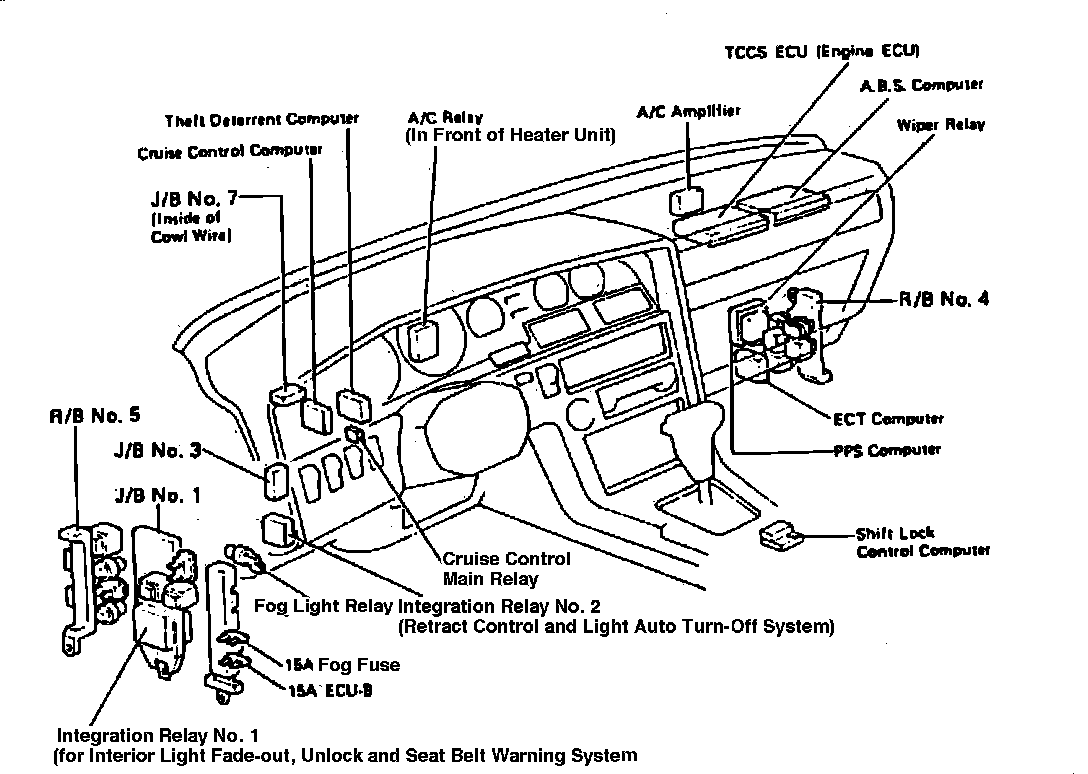

Instrument Panel Relay Locations:






Relay Block # 5
