Home
>>
Toyota
>>
1992
>>
Supra L6-3.0L DOHC (7M-GE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

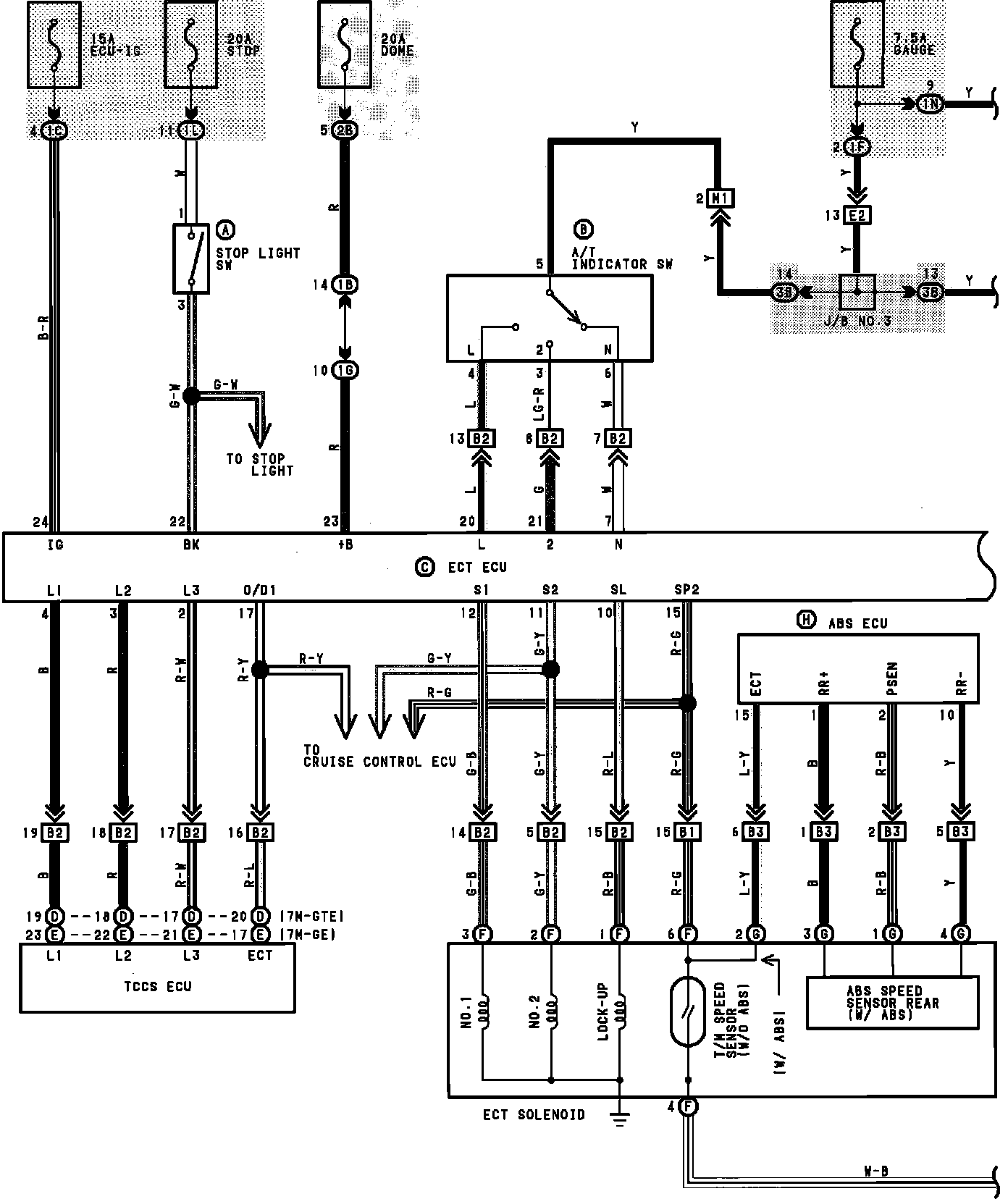

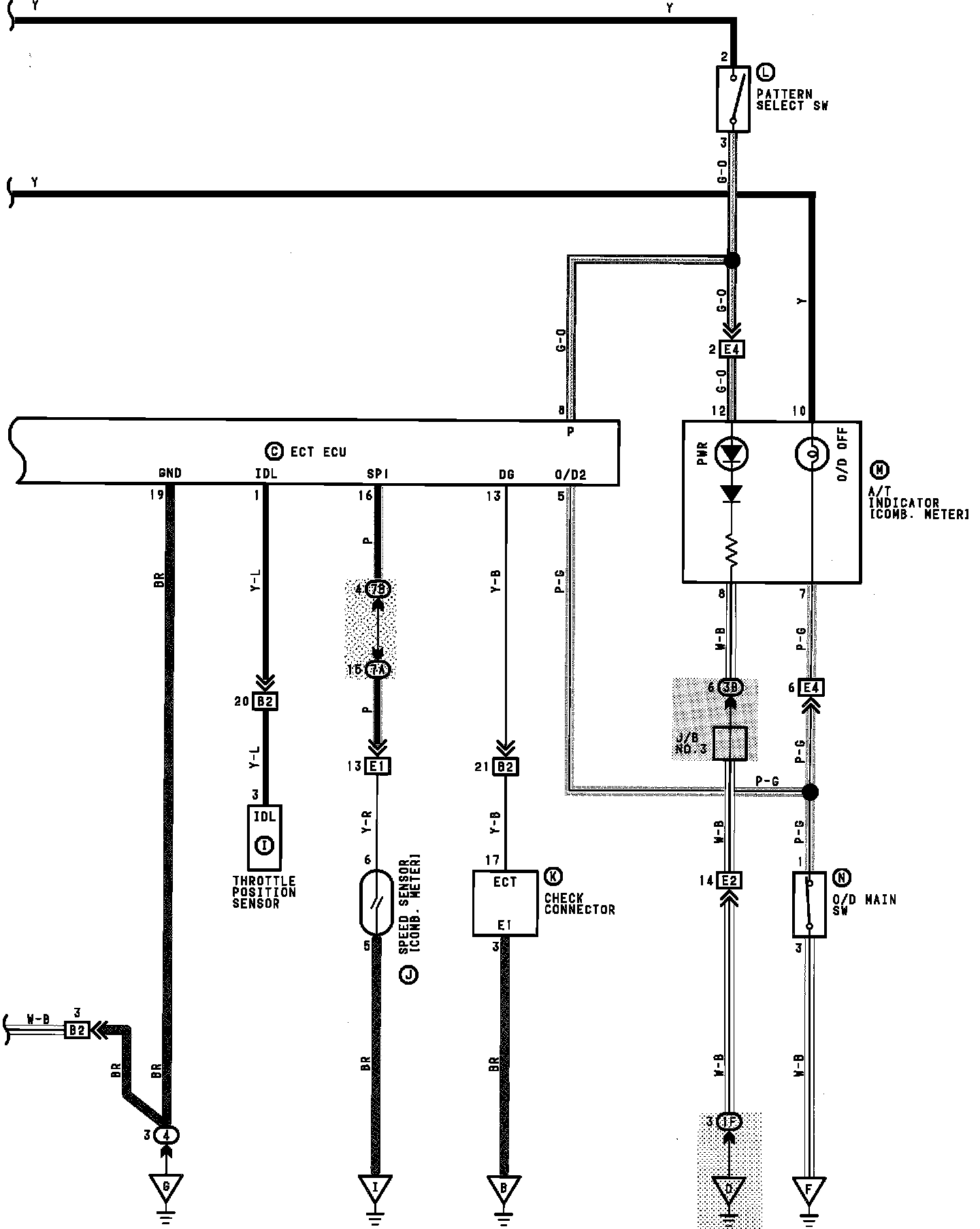

Electronic Controlled Transmission (ECT):
Electronic Controlled Transmission (ECT):
