Fuel Pressure Control Solenoid: Locations

CEC Component Locations:

AIR CLEANER:
The air cleaner is located on the RH side of the engine compartment.

CIRCUIT OPENING RELAY:
The circuit opening relay is located under the dash, behind the glove box, next to the ECU.

COLD START INJECTOR:
The cold start injector is located on the LH side of the engine, on the intake plenum.

COLD START INJECTOR TIME SWITCH:
The cold start injector time switch is located on the front of the engine, on the thermostat housing.

DASHPOT (DP):
The dashpot is located on the side of the throttle body.

EFI MAIN RELAY:
Located at front left side of engine compartment.

ENGINE CHECK CONNECTOR:
The diagnostic connector is located on the left side of the engine compartment between the master cylinder and the strut tower.

FUEL FILTER:
The fuel filter is located on the LH side of the engine compartment.

FUEL PRESSURE REGULATOR:
Located on the top, front of the engine, on the fuel rail.

FUEL PUMP:
The fuel pump is located in the fuel tank, in the rear of the vehicle.

FUEL PUMP RELAY:

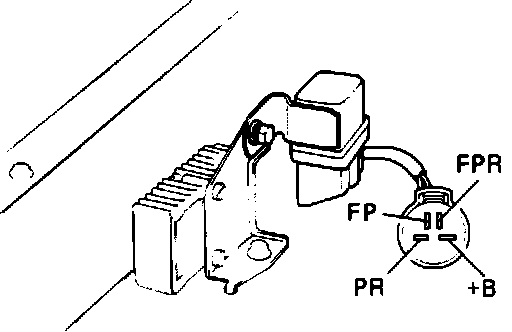

Fuel Pump Relay And Resistor:

The fuel pump relay is located in the rear, RH side of the engine compartment.

FUEL PUMP RESISTOR:
The fuel pump resistor is located in the rear, RH side of the engine compartment.

FUEL RAIL:

Fuel Rail:

The fuel rail is located on the top, LH side of the engine.

FUEL TANK:
The fuel tank is located under the rear of the vehicle.

INJECTORS:
The six injectors are located on the top, LH side of the cylinder head, below the fuel rail.

THROTTLE BODY:
The throttle body is located on the top, LH side of the engine, on the intake plenum.
