DIAGNOSIS CODE DETECTION DRIVING PATTERN
Purpose of the driving pattern.
(a) To simulate diagnosis code detecting condition after diagnosis code is recorded.
(b) To check that the malfunction is corrected when the repair is completed confirming that diagnosis code is no longer detected.




CODE NUMBER 21

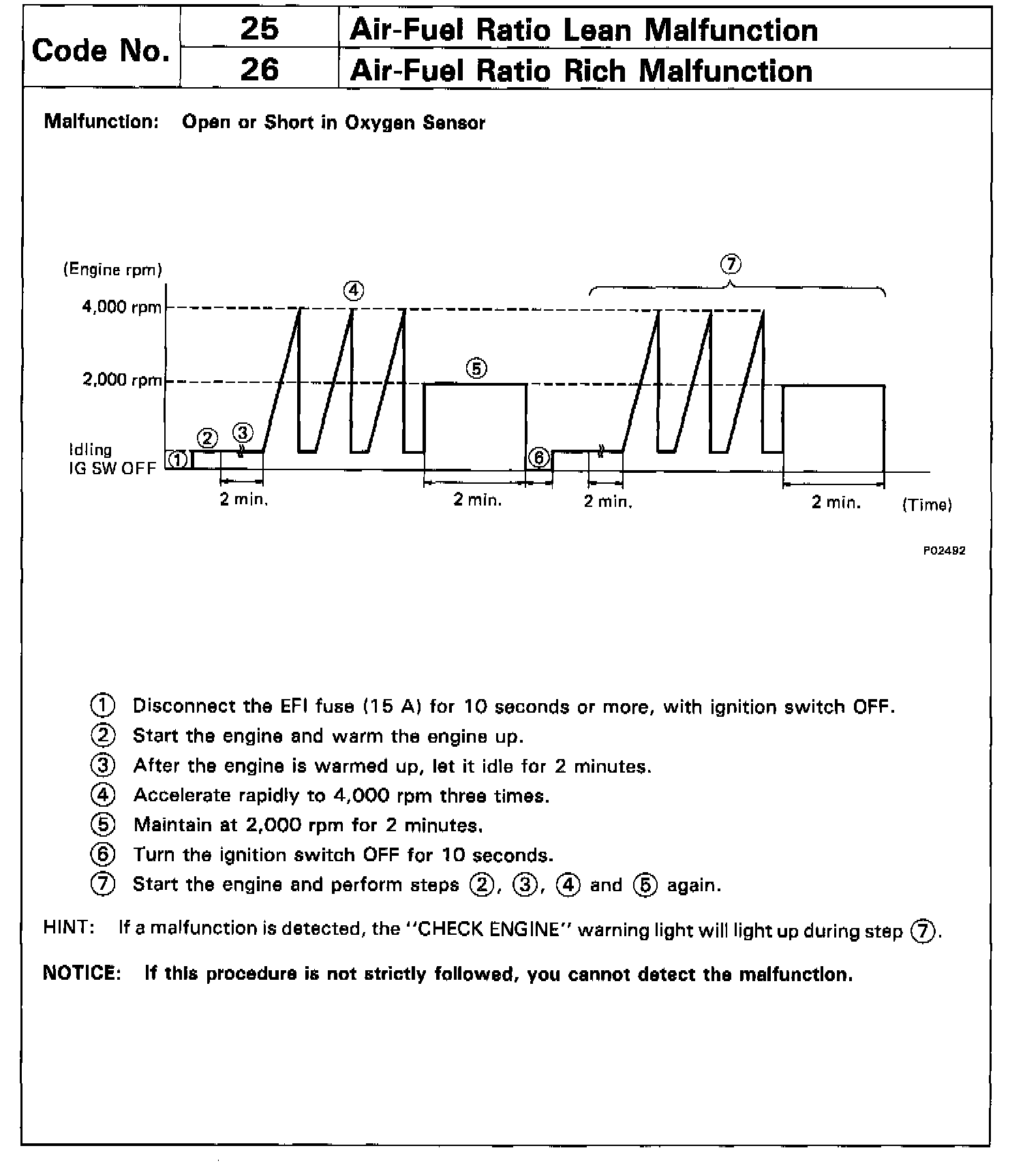

CODE NUMBER 25 and 26 Non-California Models

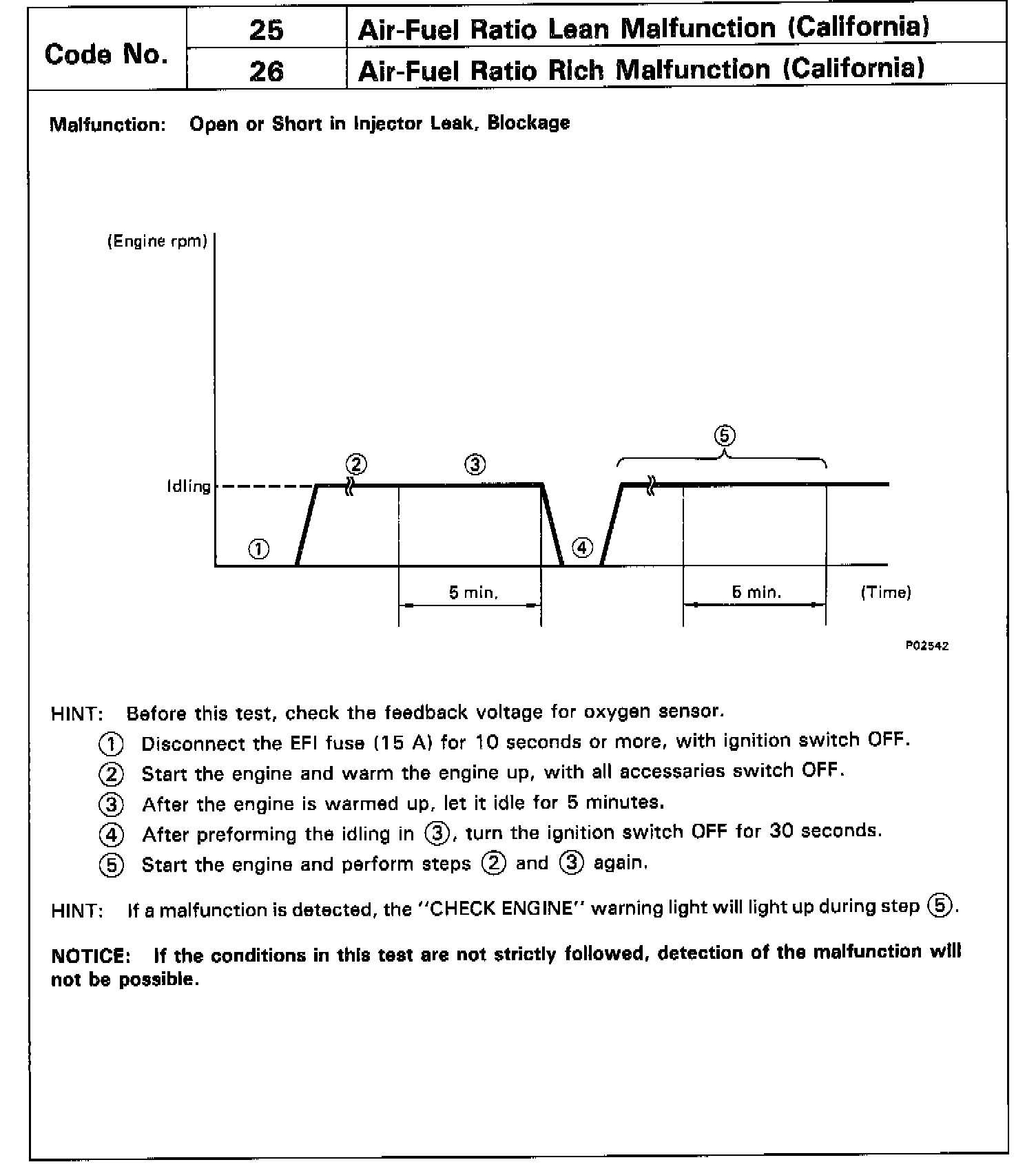

CODE NUMBER 25 and 26 California Models

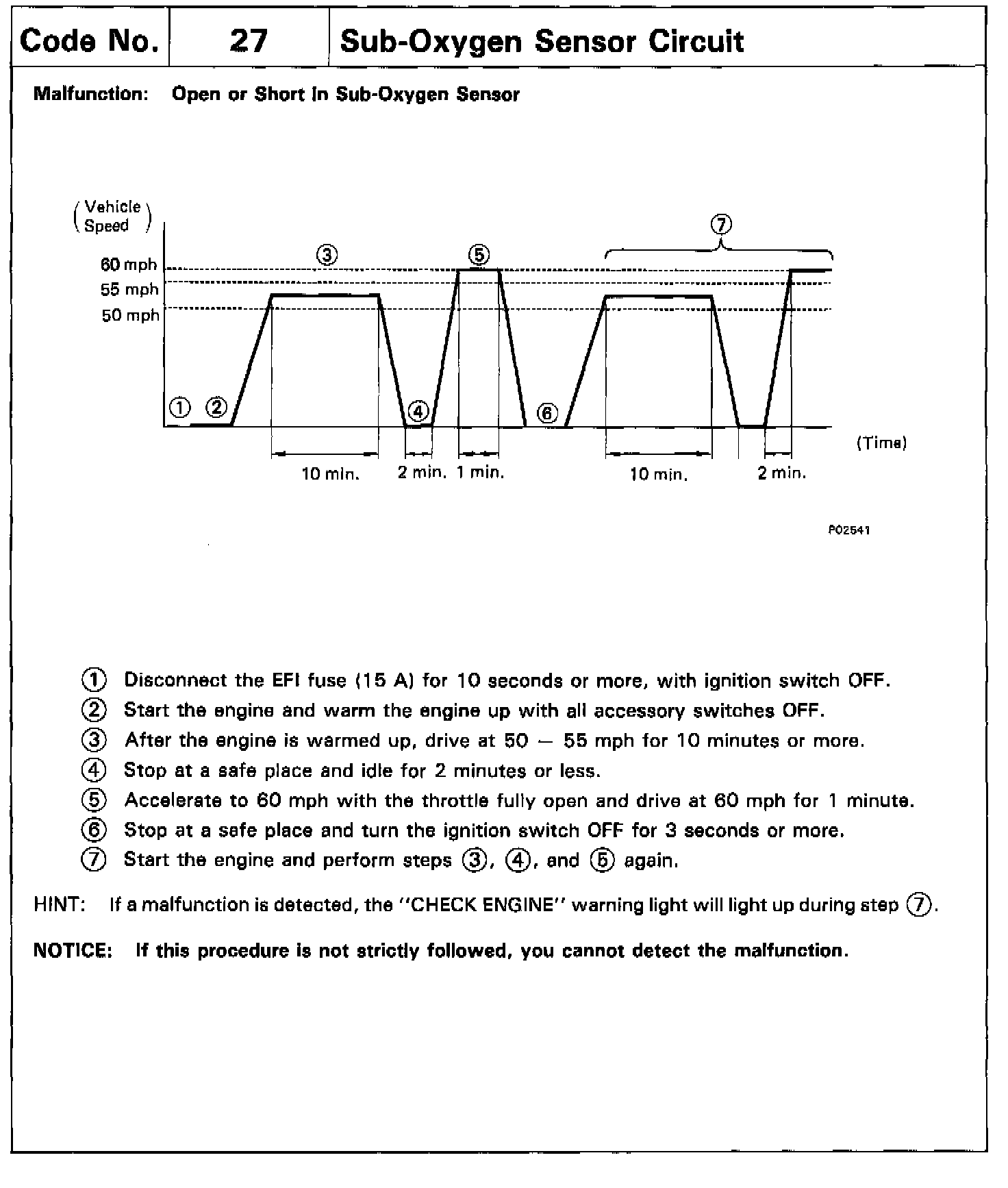

CODE NUMBER 27

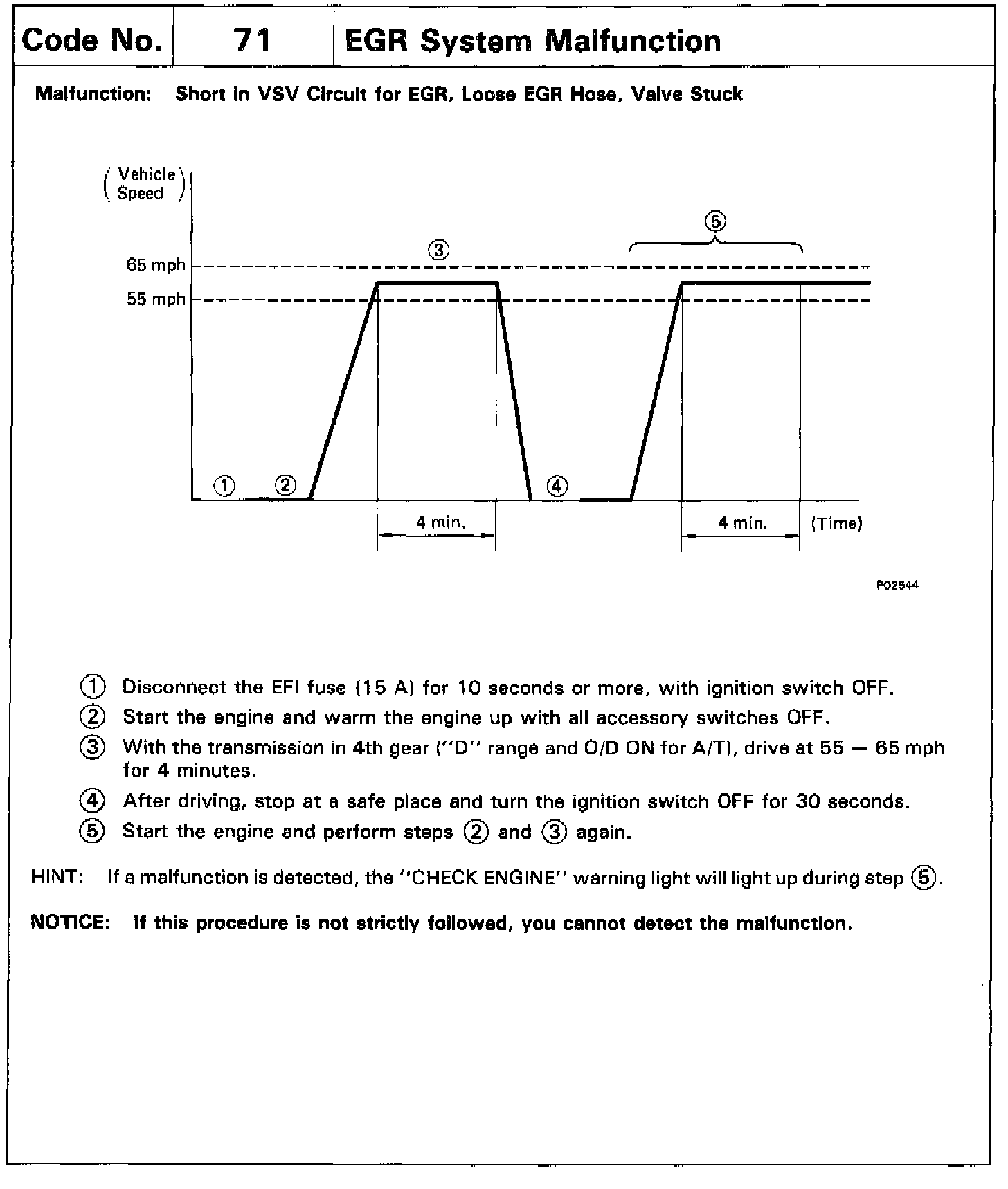

CODE NUMBER 71
