Home
>>
Toyota
>>
1992
>>
Supra L6-3.0L DOHC (7M-GE)
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse
>>
Locations
>>
J/B No.1
J/B No.1

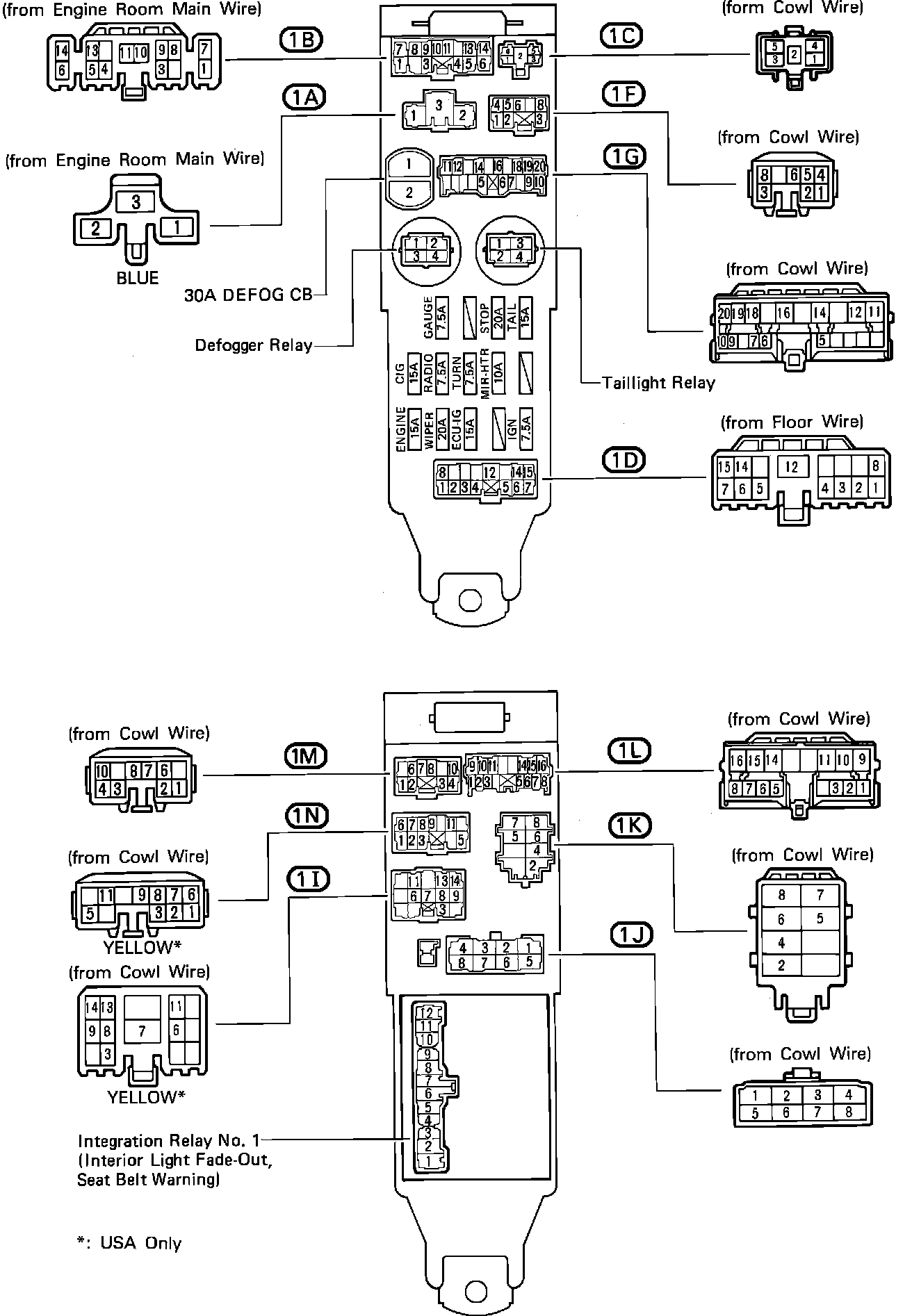

Fuse Panel: Junction Block No. 1 (Left Kick Panel):

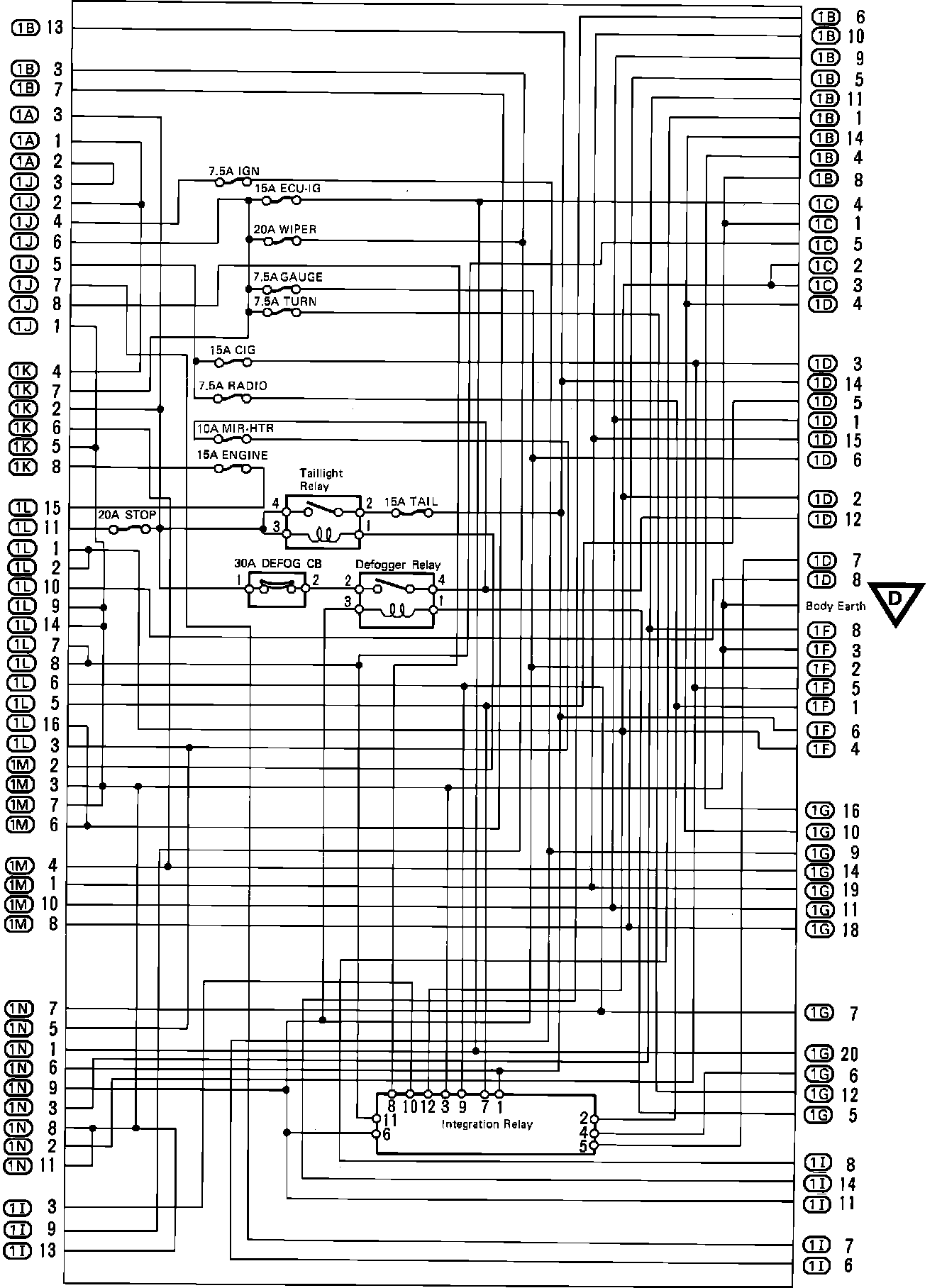

Fuse Panel: Junction Block No. 1 (Inner Circuit):
