Water Pump: Service and Repair

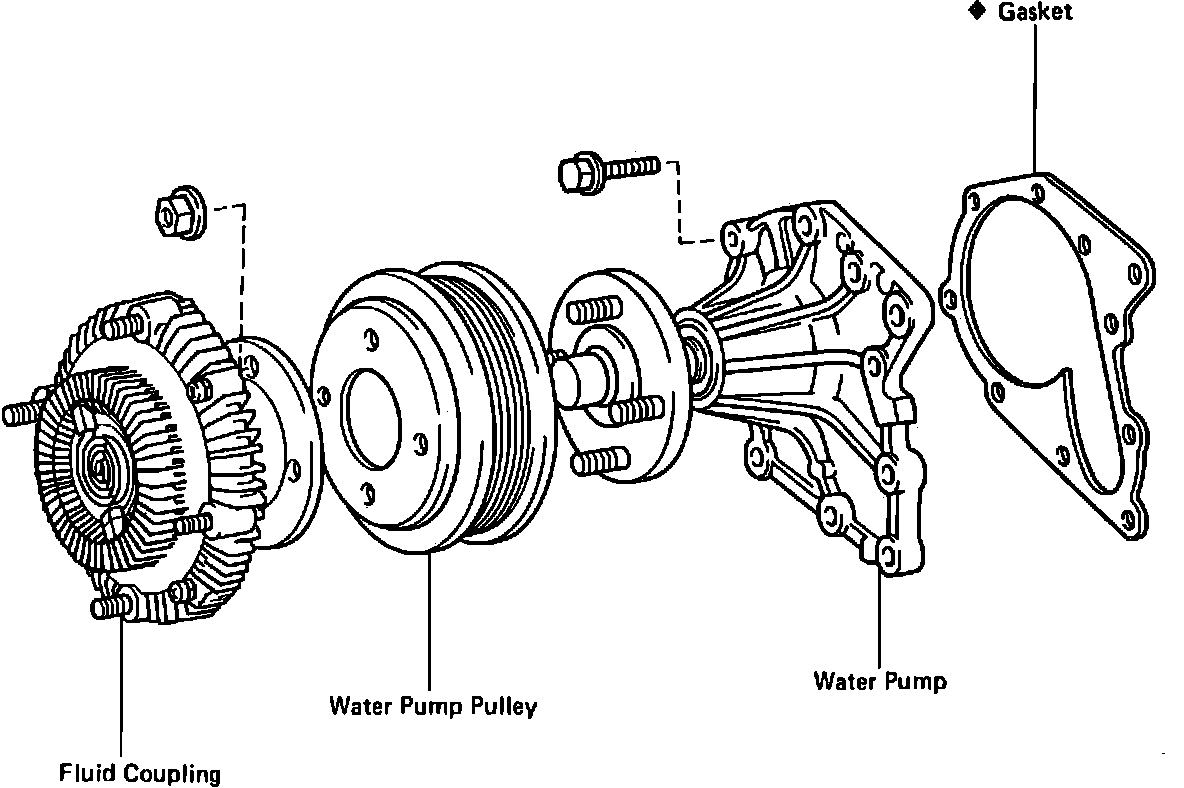

Fig. 11 Water Pump Assembly:

1. Drain cooling system.
2. If equipped, remove A/C compressor belt.
3. Remove alternator drive belt, fan clutch assembly and water pump pulley, Fig. 11.
4. Remove power steering air pipe.
5. Remove water pump attaching bolts, then the water pump.
