Brake Fluid Level Sensor/Switch

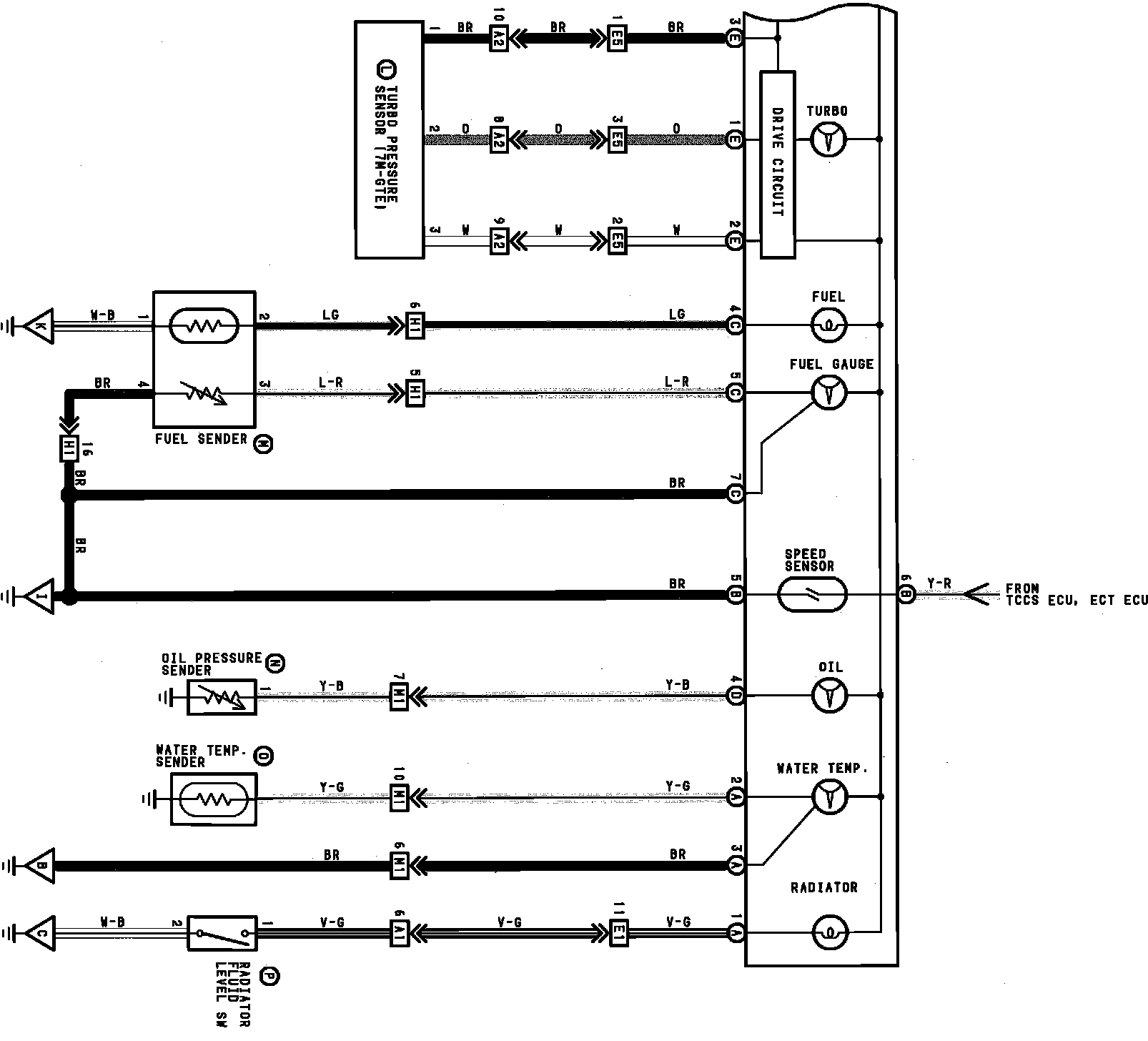

Gauges, Instrument Panel Circuit Board Wiring, Brake, Charge, Cooling Fan, Fuel & Rear Lights:

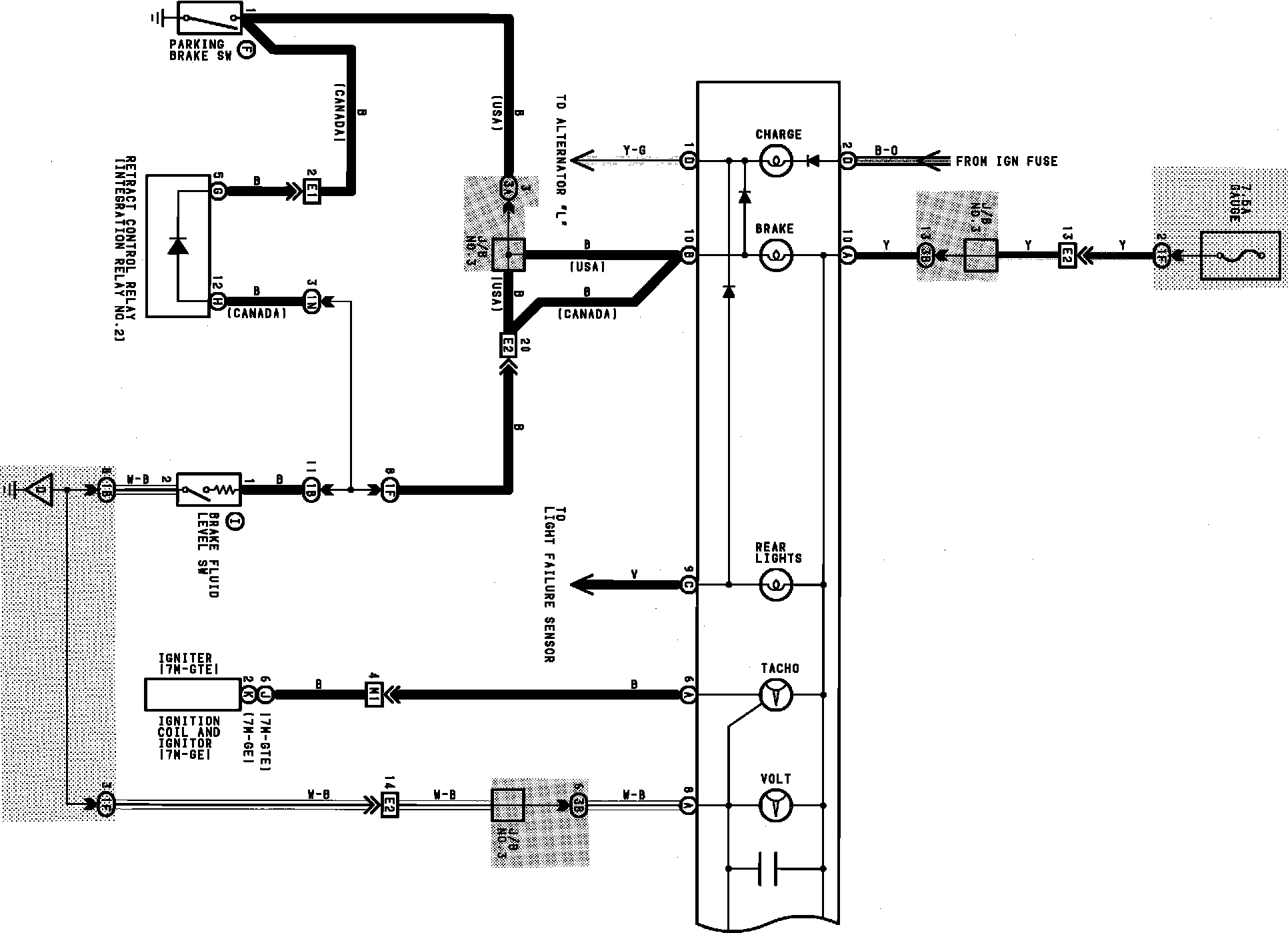

Gauges, Instrument Panel Circuit Board Wiring, Brake, Charge, Cooling Fan, Fuel & Rear Lights:
