Component Test

1. Disconnect the TPS connector.
2. Using an Ohmmeter and refering to the TPS Resistance Chart, measure the resistance between the terminals.

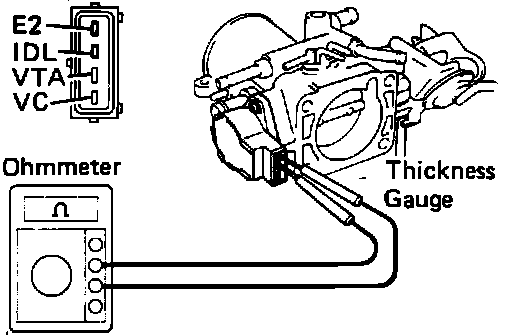

Checking TPS Resistance:

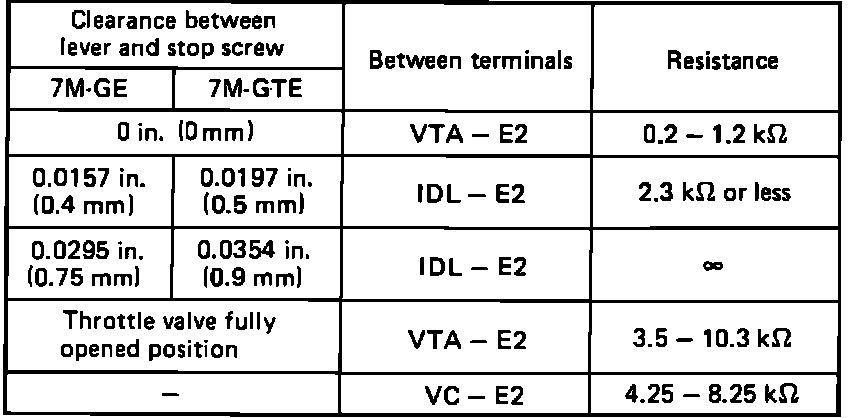

TPS Resistance Chart:

3. If readings are not as specified, replace the TPS.
4. Refer to ADJUSTMENT PROCEDURES and check adjustment setting.
5. Reconnect the TPS connector.
