Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Toyota
>>
1992
>>
Paseo L4-1497cc 1.5L DOHC (5E-FE)
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Relay Box
>>
Locations
>>
Relay Locations
Relay Locations

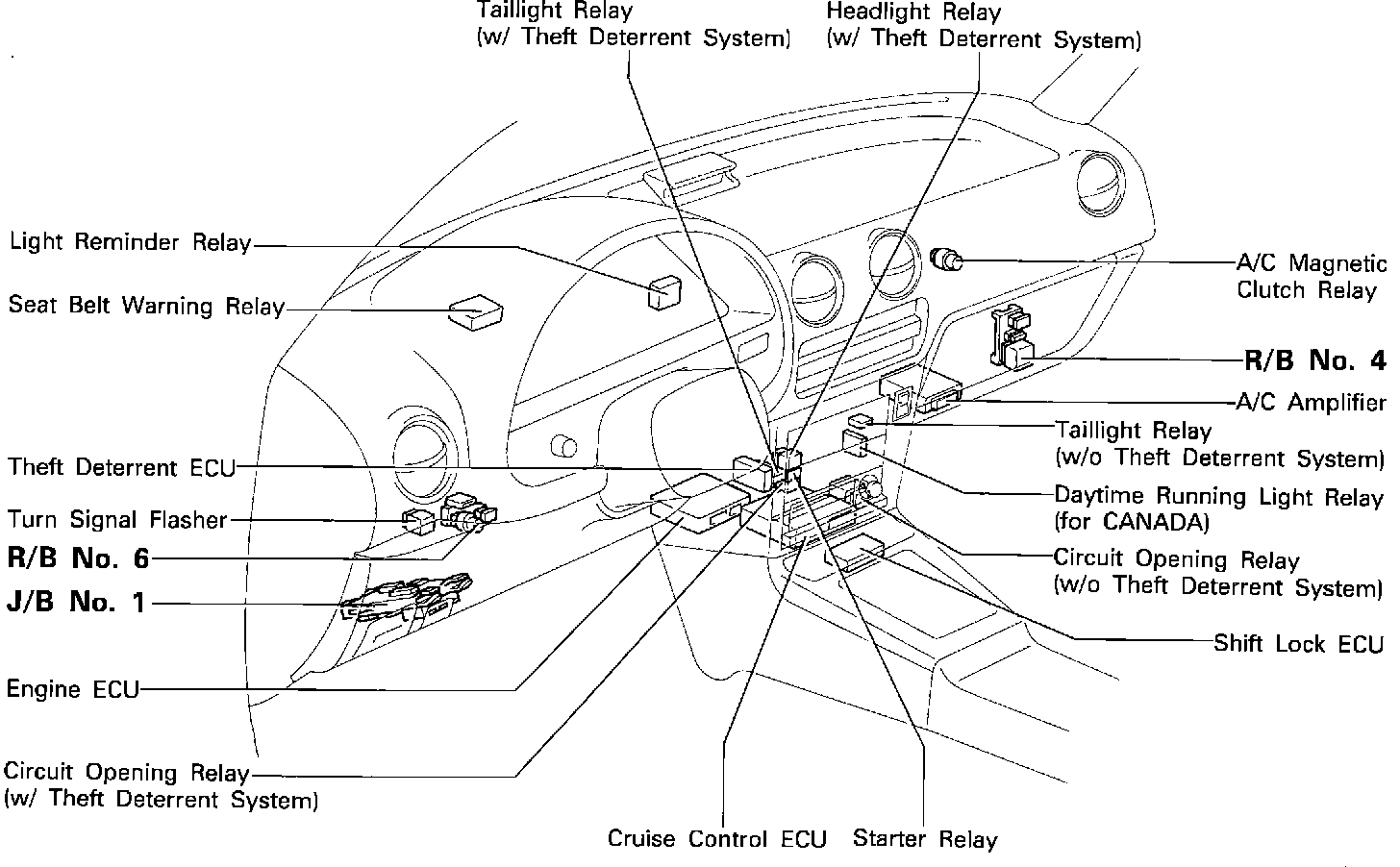

Relay Locations (Instrument Panel):

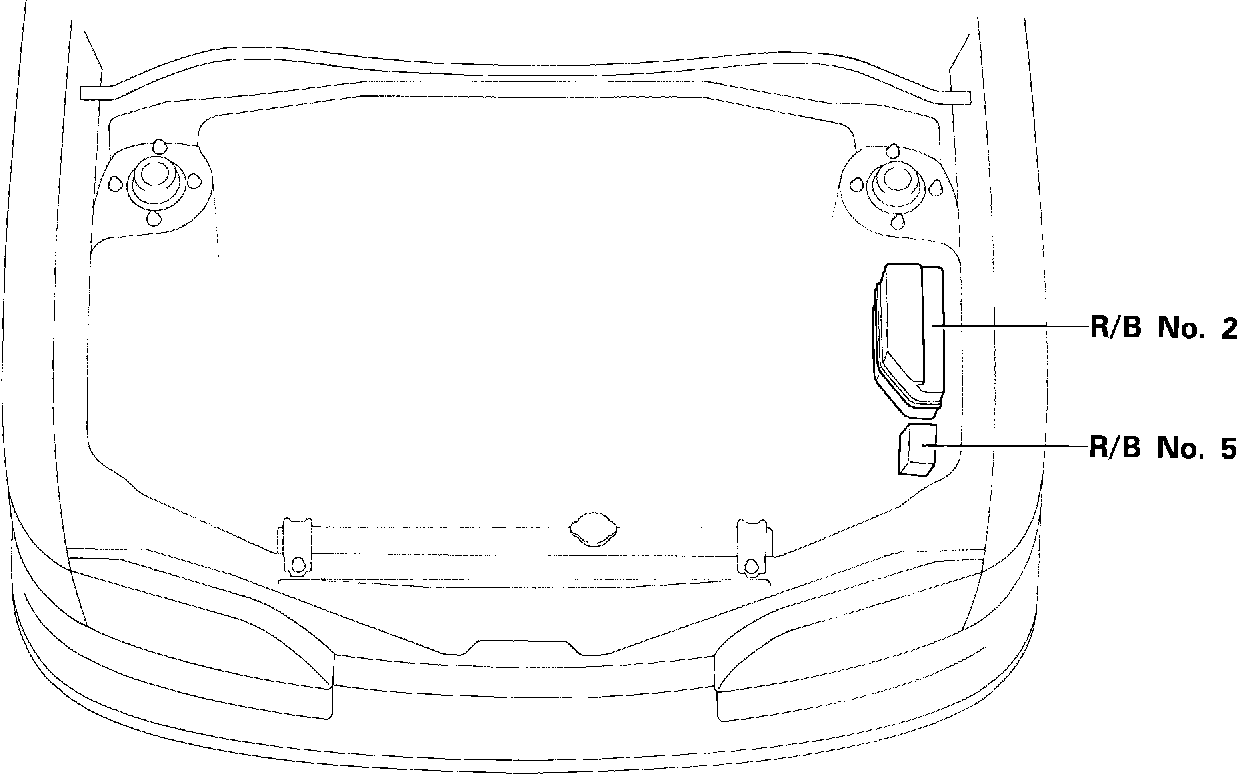

Relay Locations (Engine Compartment):
