Paseo L4-1497cc 1.5L DOHC (5E-FE)
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Relay Box
>>
Locations
>>
Relay Block No. 2
>>
Canada
Canada

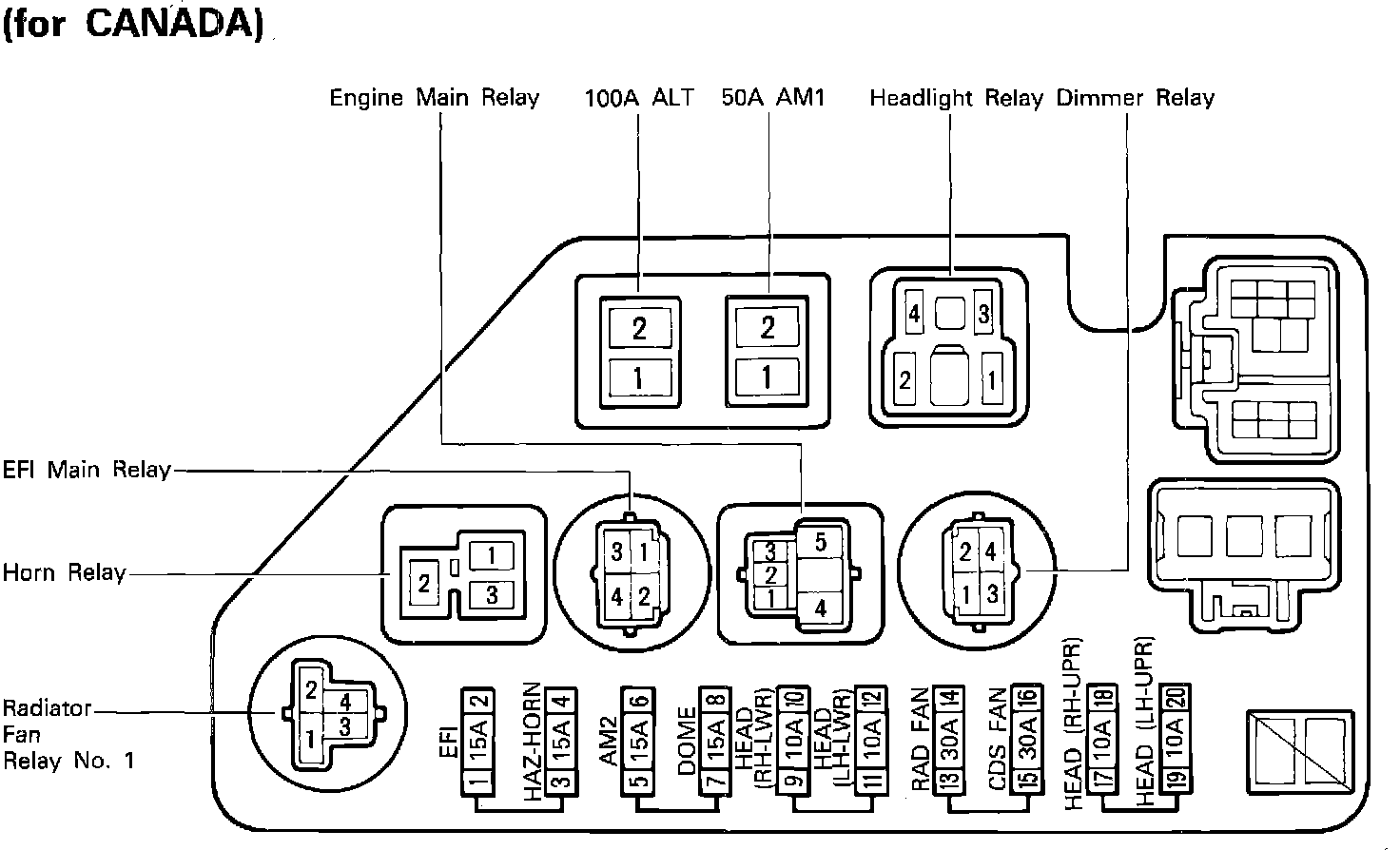

Relay Block No. 2 (Engine Compartment Left), Canada:
