Paseo L4-1497cc 1.5L DOHC (5E-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Transmission Control Systems
>>
Circuit Service Hints
Circuit Service Hints
Connector Identification:

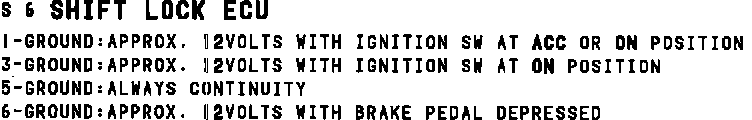

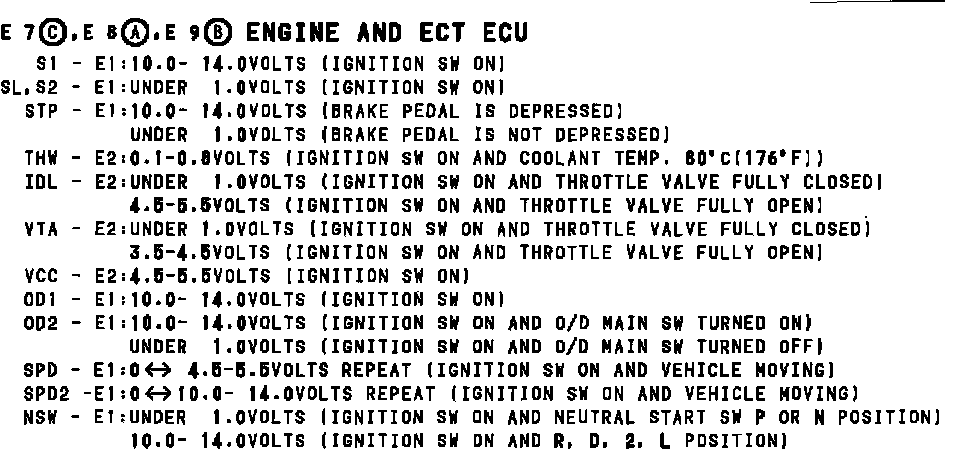

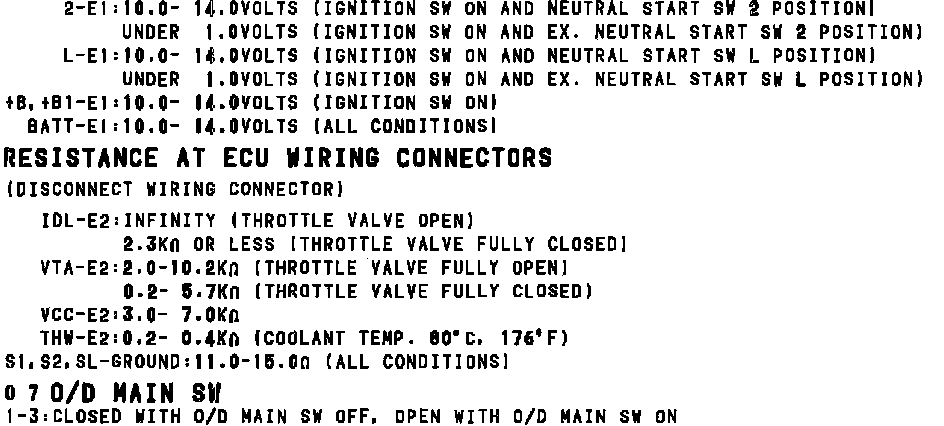

Service Hints:
Service Hints:
