Home
>>
Toyota
>>
1992
>>
Paseo L4-1497cc 1.5L DOHC (5E-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power and Ground Distribution
>>
Power Source
>>
Canada
Canada

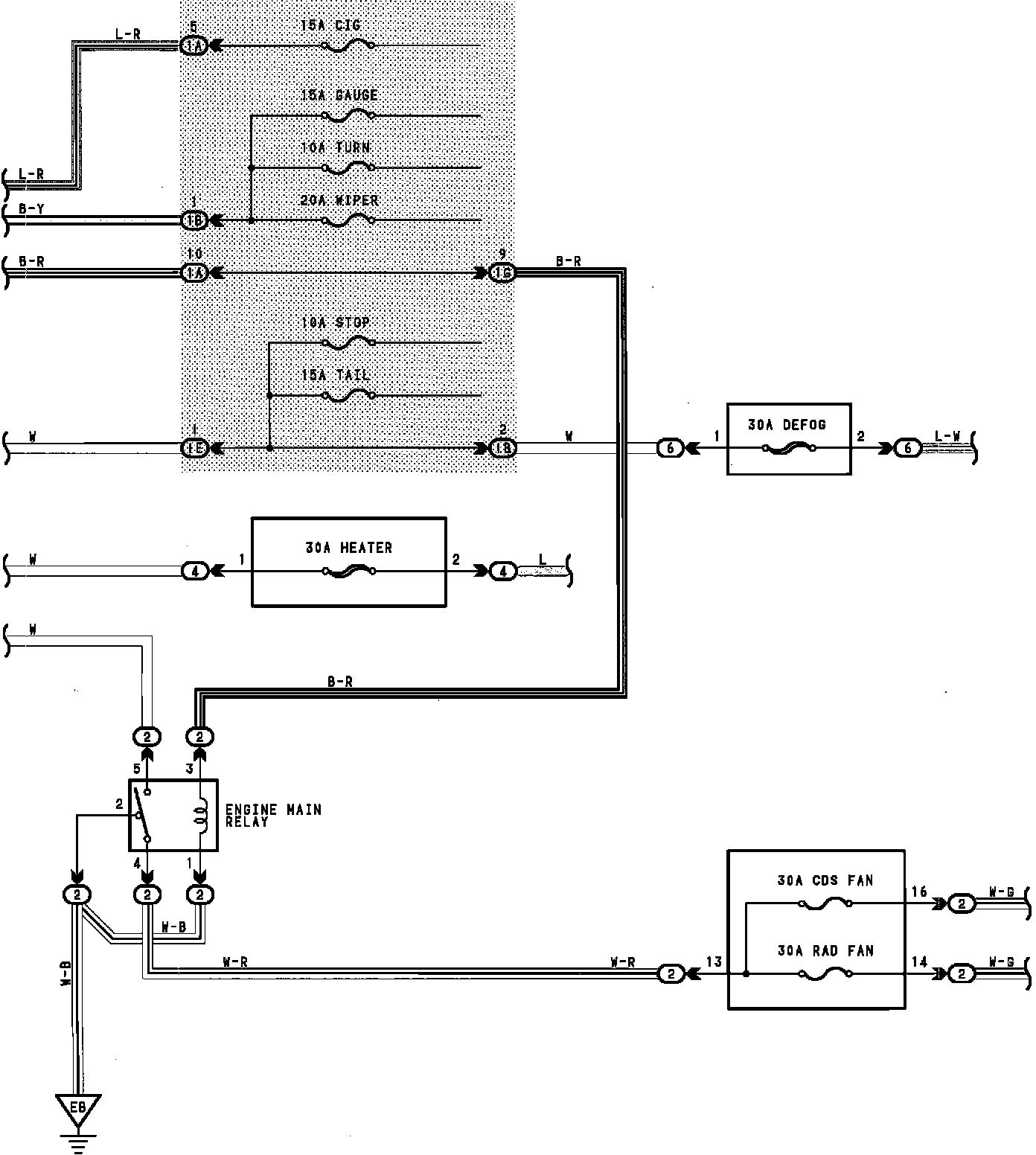

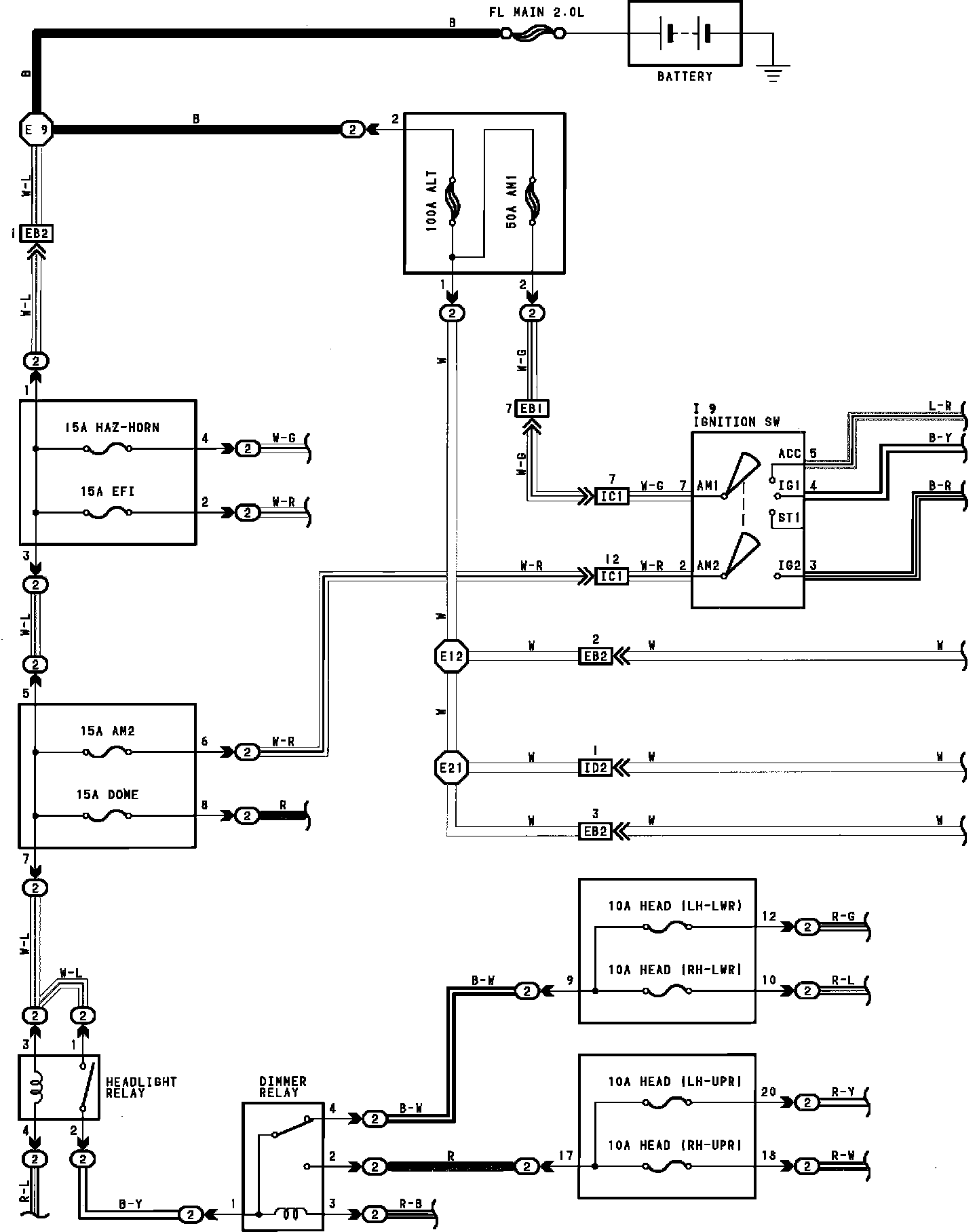

Power Source (Canada):
Power Source (Canada):
