Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Toyota
>>
1992
>>
MR2 L4-122 1998cc 2.0L DOHC Turbo (3S-GTE)
>>
Repair and Diagnosis
>>
Specifications
>>
Electrical Specifications
>>
Engine Control Module
>>
ECM Resistance Charts
ECM Resistance Charts

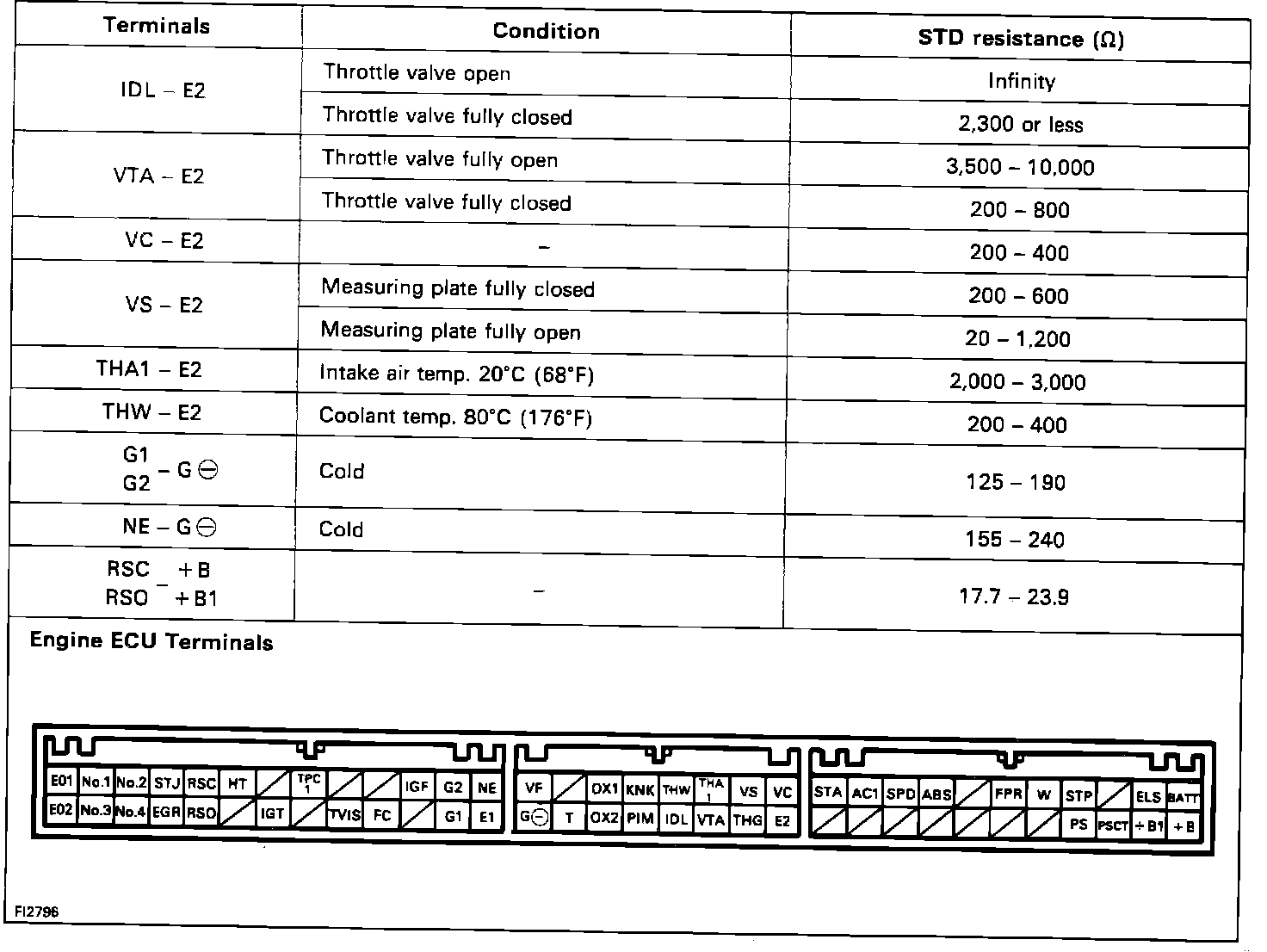

ECU Resistance Chart:
