Relay Locations

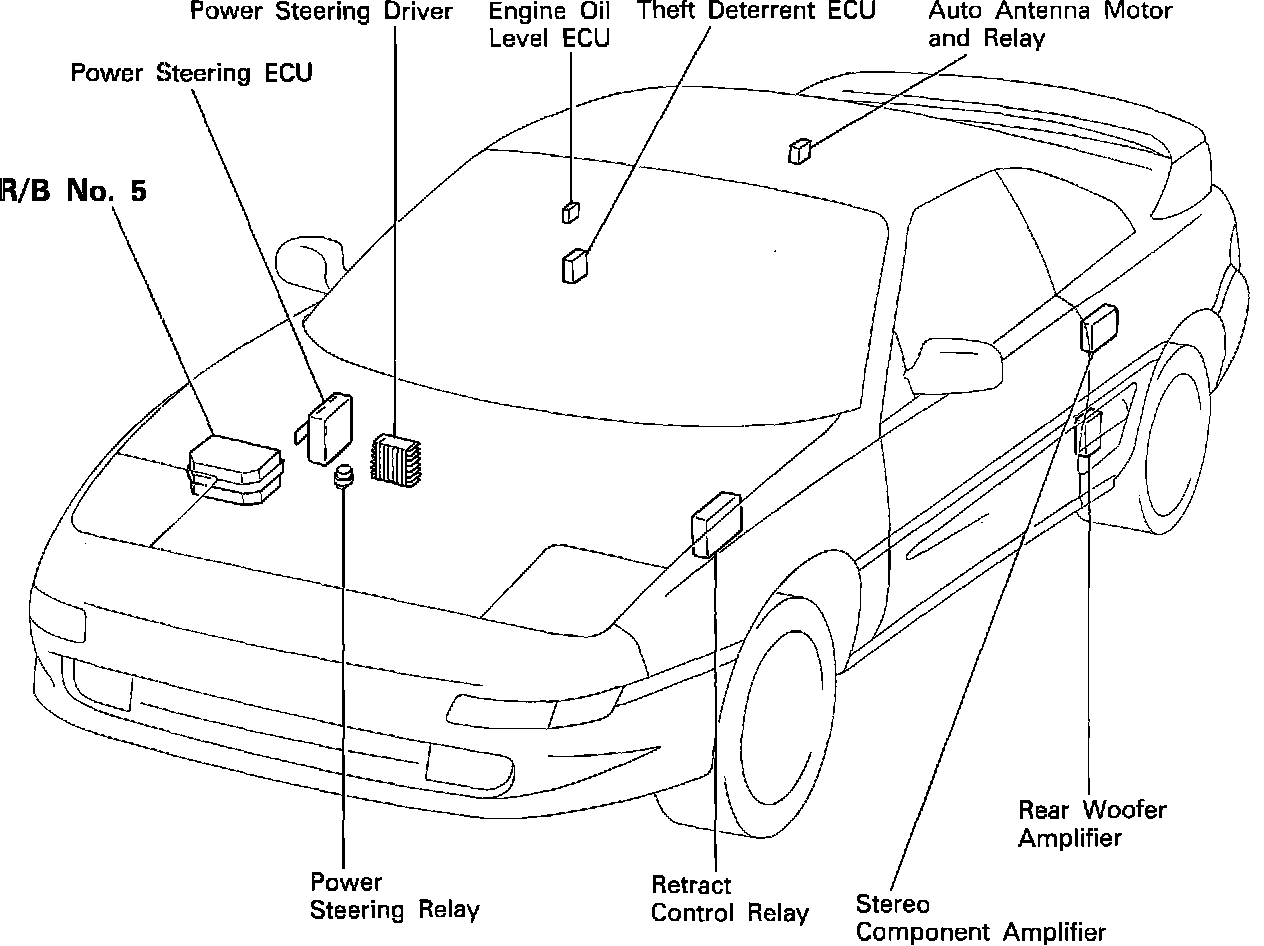

Body Relay Locations:

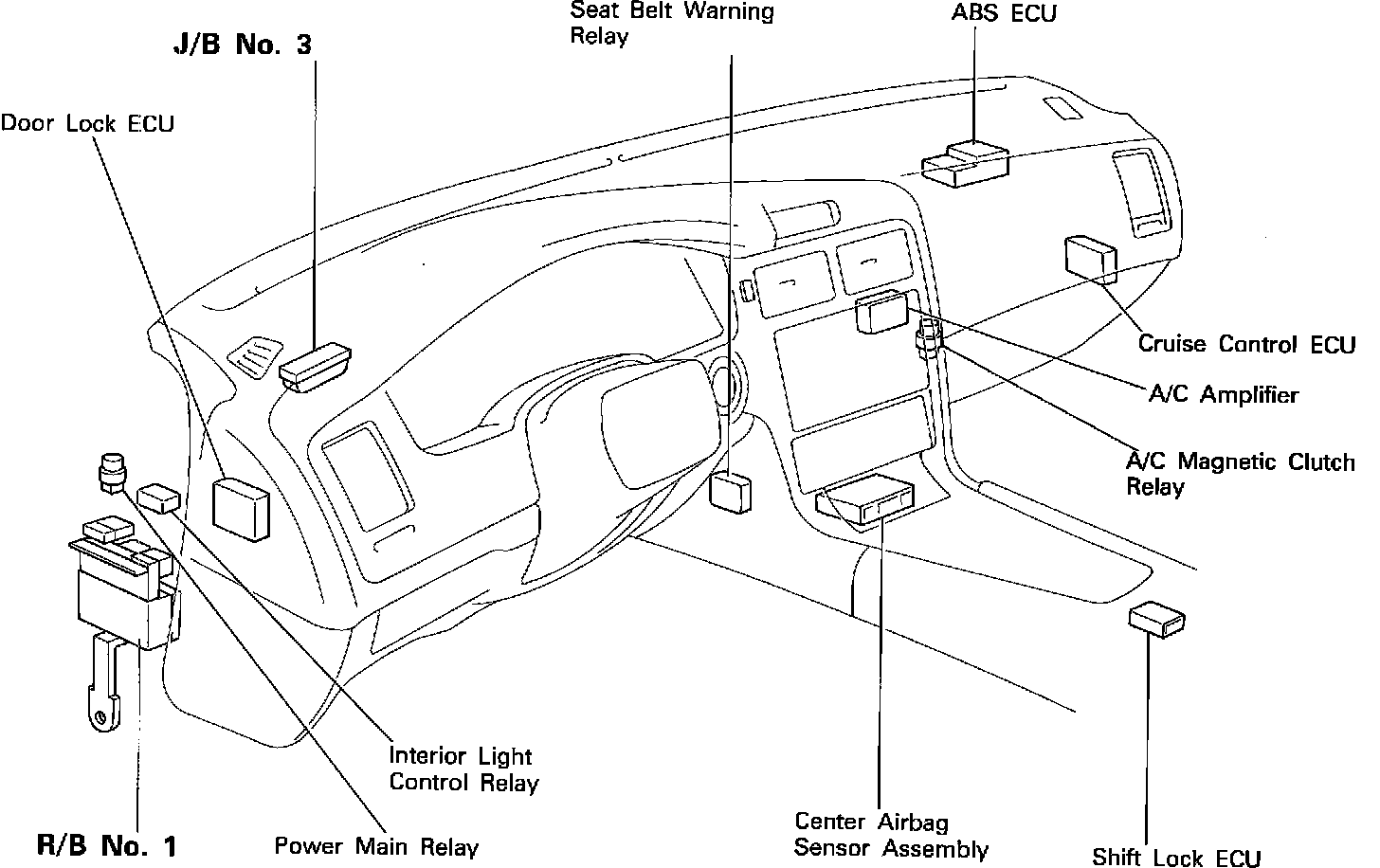

Instrument Panel Relay Locations:

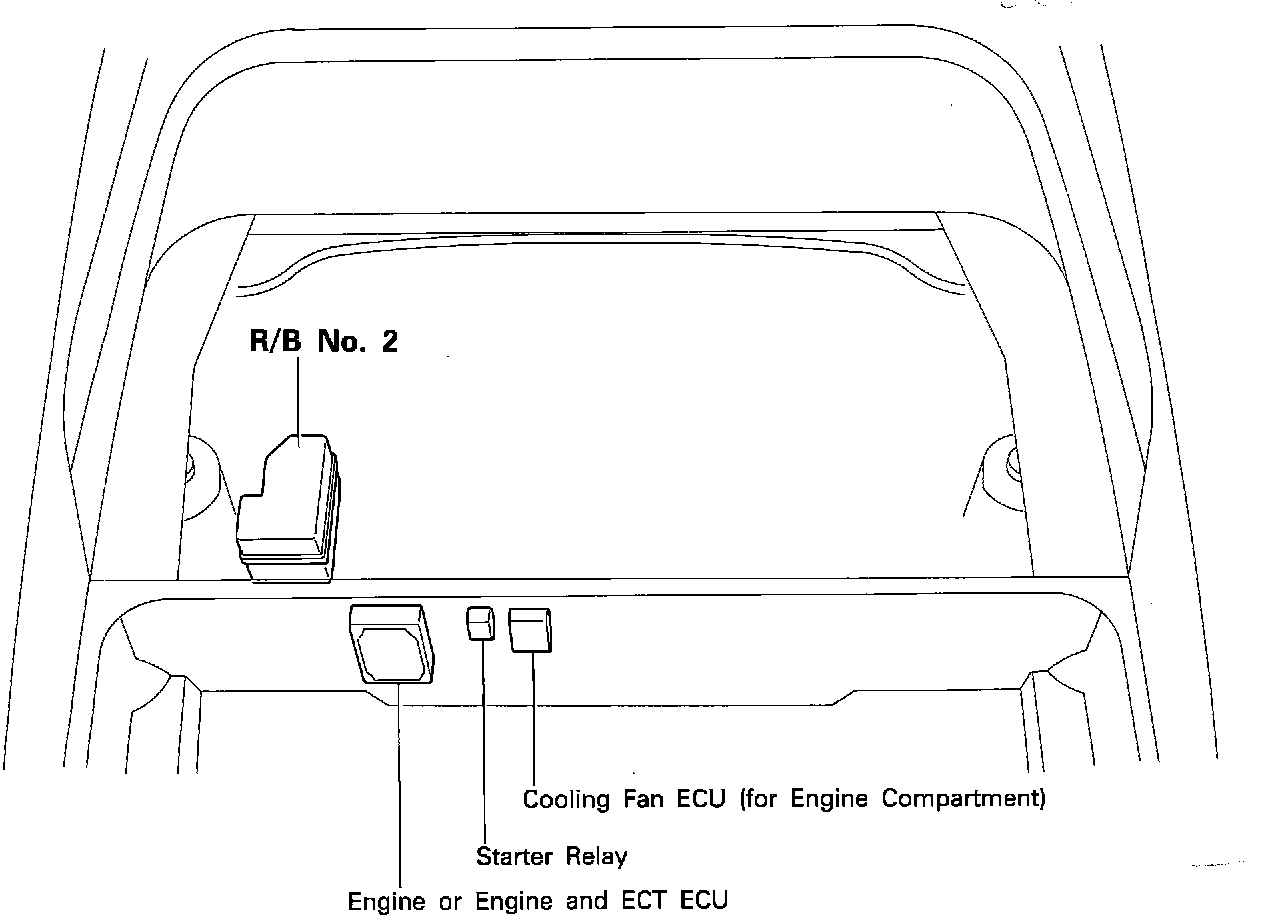

Engine Compartment Relay Locations:
