MR2 L4-122 1998cc 2.0L DOHC Turbo (3S-GTE)
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Relay Box
>>
Locations
>>
Relay Block No. 2
Relay Block No. 2

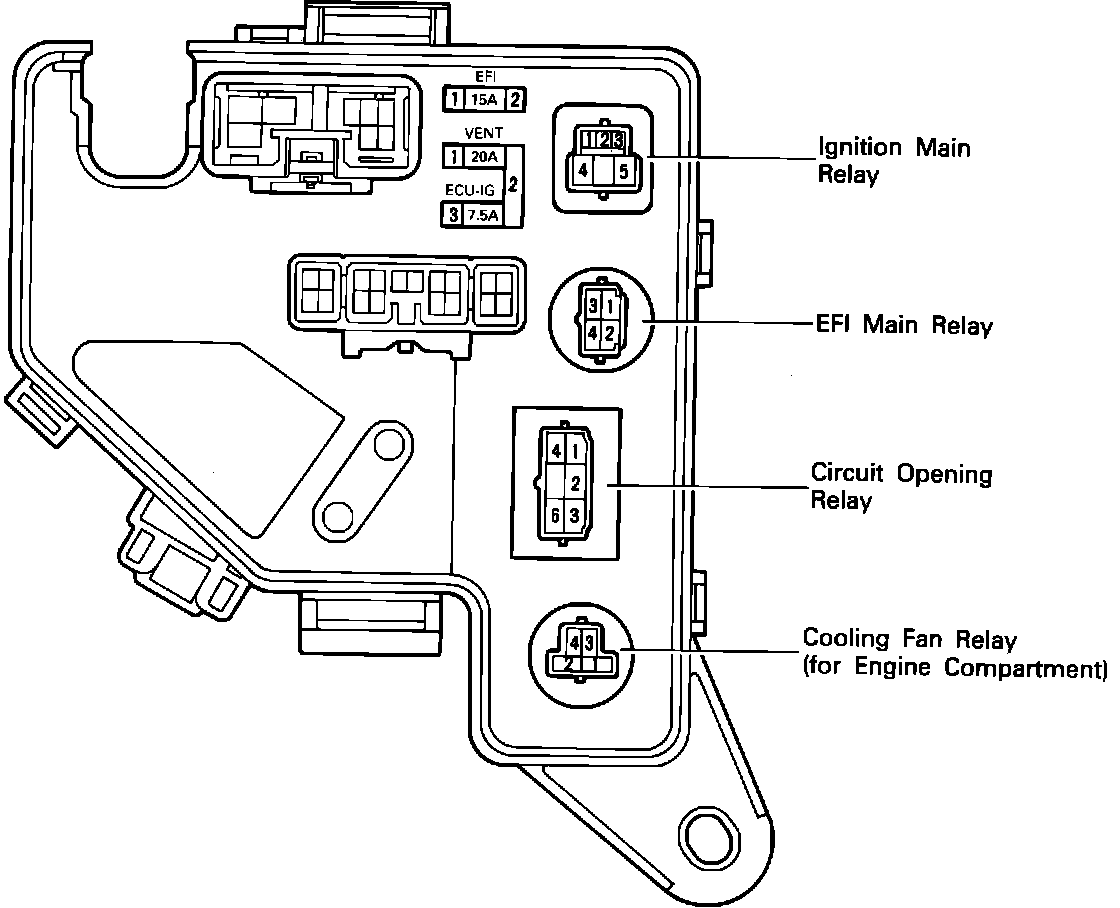

Relay Box No. 2 (Engine Compartment Left):
