Locations
>>
Connector Locations
>>
Engine Compartment
Engine Compartment

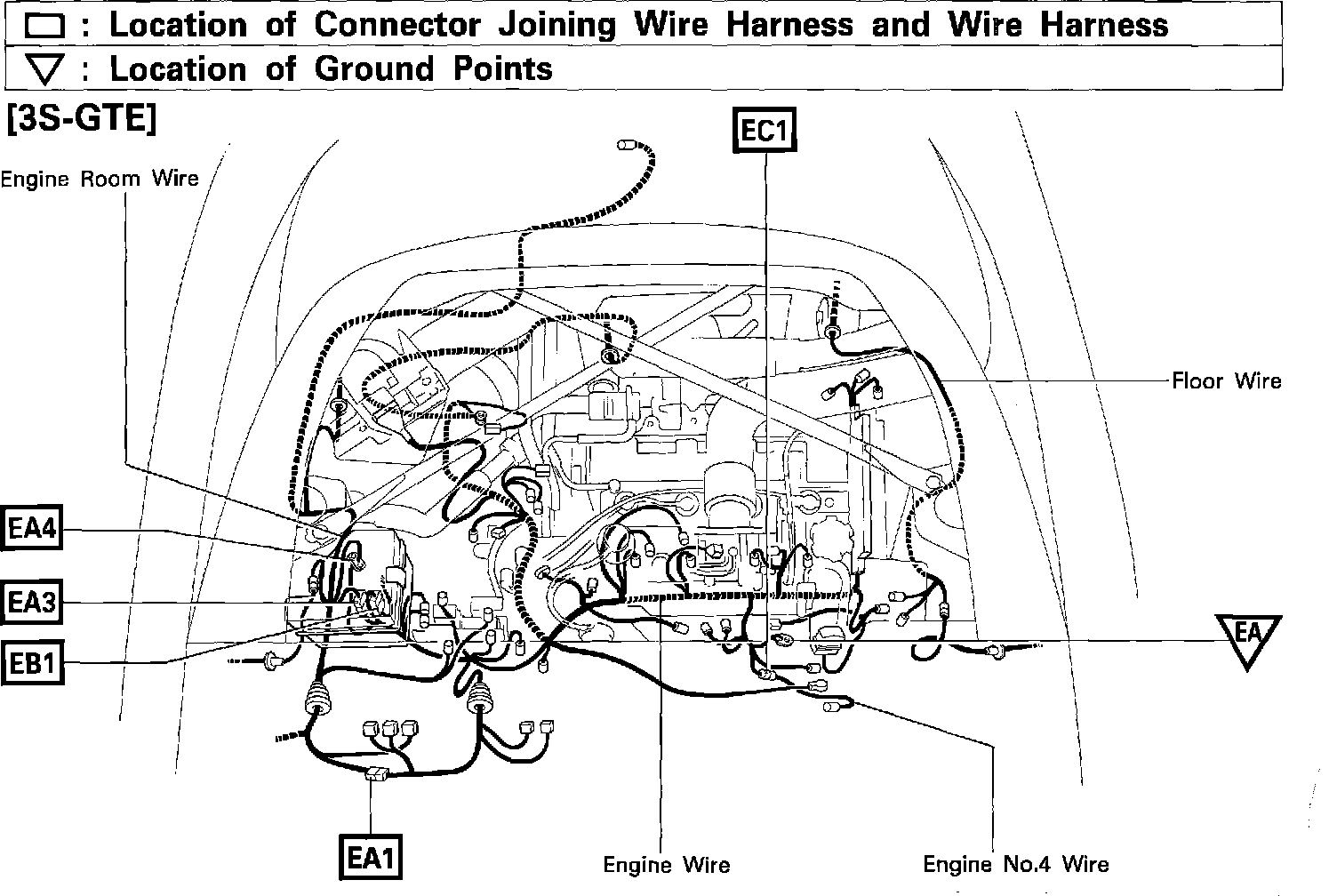

Engine Compartment Ground Point And Connector Locations:
CONNECTOR LOCATION
Connector Joining Wire Harness & Wire Harness:
CONNECTOR IDENTIFICATION
