Engine Compartment

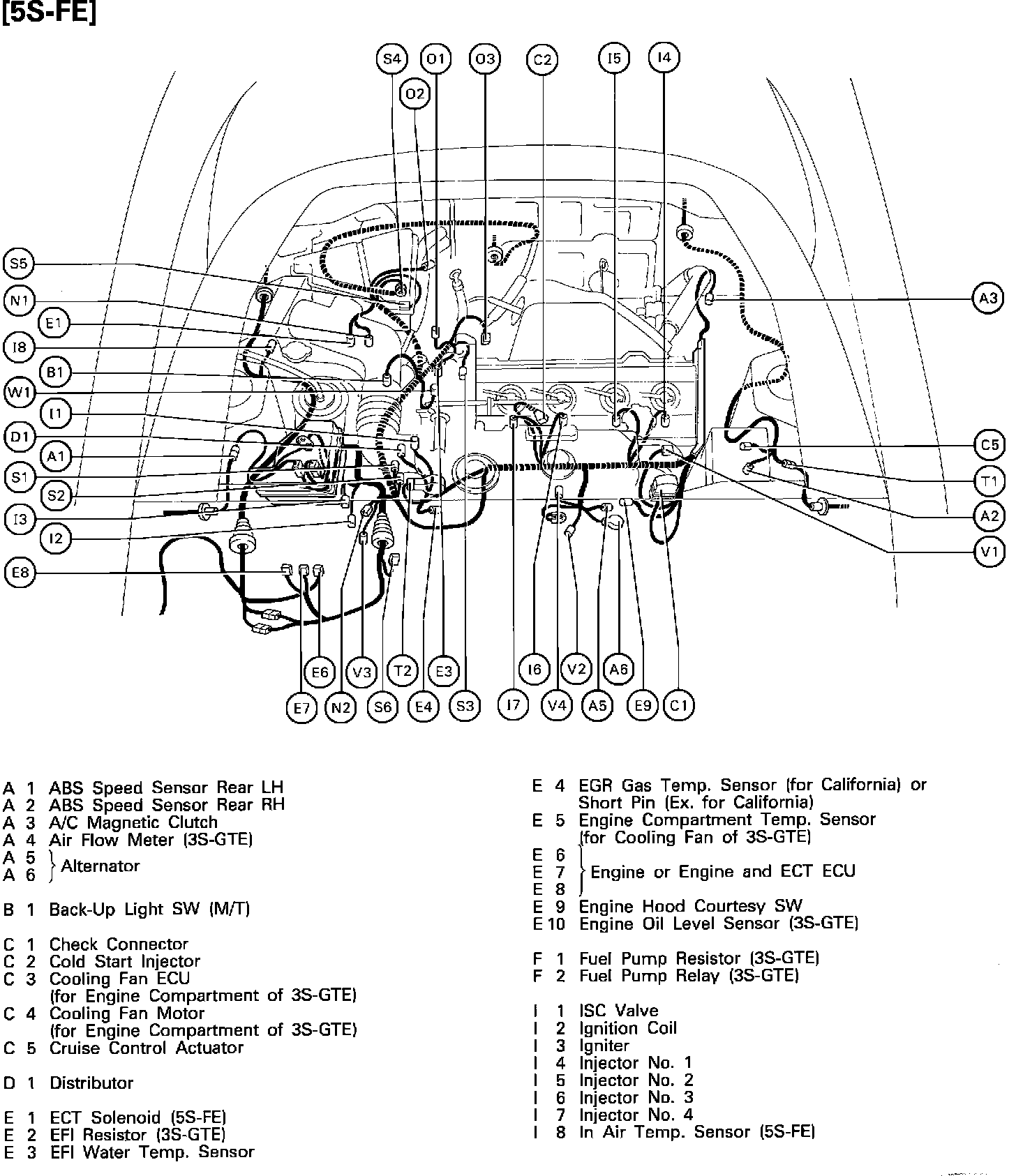

Engine Compartment Component Locations:

A 1 ABS Speed Sensor Rear LH
A 2 ABS Speed Sensor Rear RH
A 3 A/C Magnetic Clutch
A 4 Air Flow Meter (3S-GTE)
A 5 Alternator
A 6

B 1 Back-Up Light SW (M/T)

C 1 Check Connector
C 2 Cold Start Injector
C 3 Cooling Fan ECU (for Engine Compartment of 3S-GTE)
C 4 Cooling Fan Motor (for Engine Compartment of 3S-GTE)
C 5 Cruise Control Actuator

D 1 Distributor

E 1 ECT Solenoid (5S-FE)
E 2 EFI Resistor (3S-GTE)
E 3 EFI Water Temp. Sensor

E 4 EGR Gas Temp. Sensor (for California) or Short Pin
(Ex. for California)
E 5 Engine Compartment Temp. Sensor or Cooling Fan of
3S-GTE)
E 6
E 7 Engine or Engine and ECT ECU
E 8
E 9 Engine Hood Courtesy SW
E 10 Engine Oil Level Sensor (3S-GTE)

F 1 Fuel Pump Resistor (3S-GTE)
F 2 Fuel Pump Relay (3S-GTE)

I 1 ISC Valve
I 2 Ignition Coil
I 3 Igniter
I 4 Injector No. 1
I 5 Injector No. 2
I 6 Injector No. 3
I 7 Injector No. 4
I 8 In Air Temp. Sensor (5S-FE)

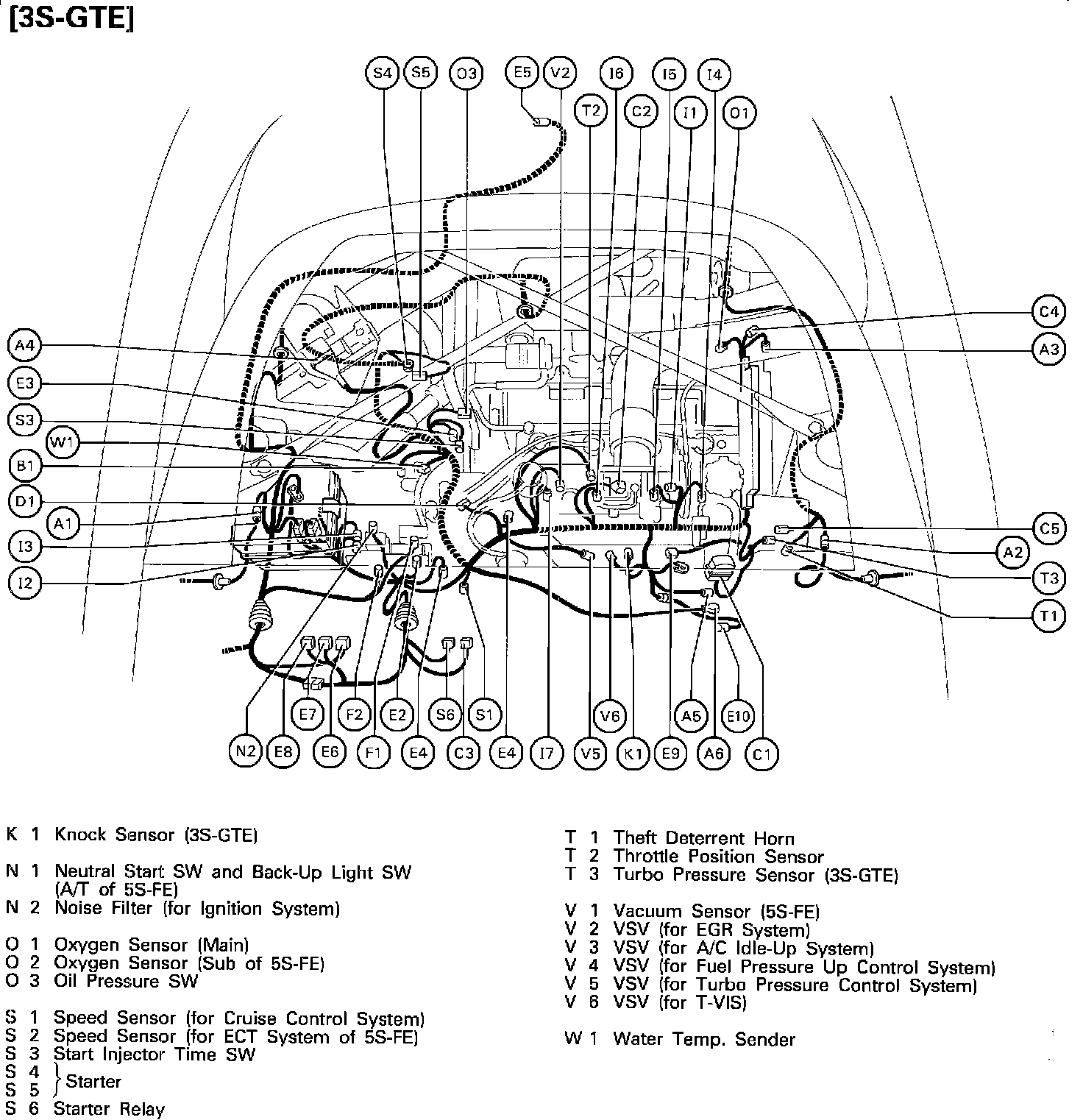

Engine Compartment Component Locations:

K 1 Knock Sensor (3S-GTE)

N 1 Neutral Start SW and Back-Up Light SW (A/T of 5S-FE)
N 2 Noise Filter (for Ignition System)

O 1 Oxygen Sensor (Main)
O 2 Oxygen Sensor (Sub of 5S-FE)
O 3 Oil Pressure SW

S 1 Speed Sensor (for Cruise Control System)
S 2 Speed Sensor (for ECT System of 5S-FE)
S 3 Start lnjector Time SW
S 4 Starter
S 5
S 6 Starter Relay

T 1 Theft Deterrent Horn
T 2 Throttle Position Sensor
T 3 Turbo Pressure Sensor (3S-GTE)

V 1 Vacuum Sensor (5S-FE)
V 2 VSV (for EGR System)
V 3 VSV (for A/C Idle-Up System)
V 4 VSV (for Fuel Pressure Up Control System)
V 5 VSV (for Turbo Pressure Control System)
V 6 VSV (for T-VIS)

W 1 Water Temp. Sender
