Shift Interlock Switch: Testing and Inspection

INSPECT SHIFT LOCK CONTROL SWITCH

(a)Disconnect the shift lock control switch connector.

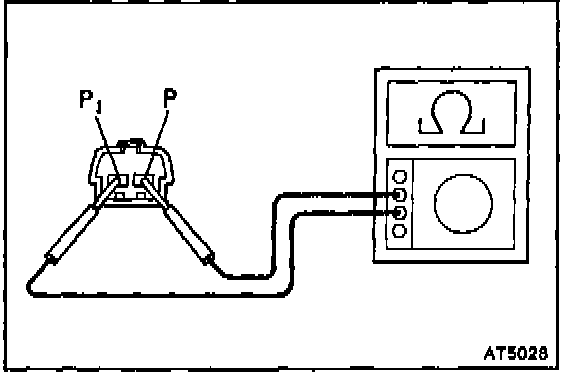

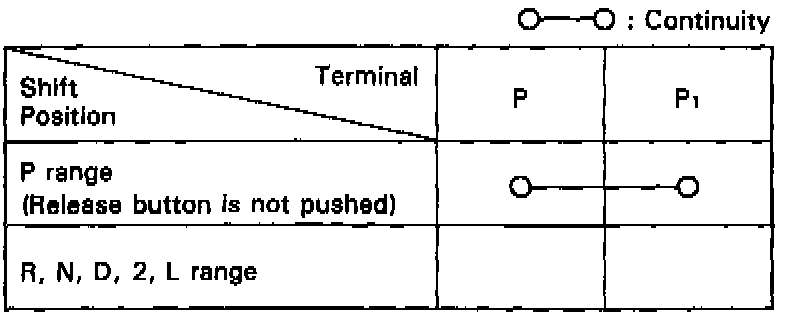

(b) Check whether there is continuity between terminals.
