Corolla Sedan L4-96.8 1587cc 1.6L DOHC (4A-FE)
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Power Source
Power Source

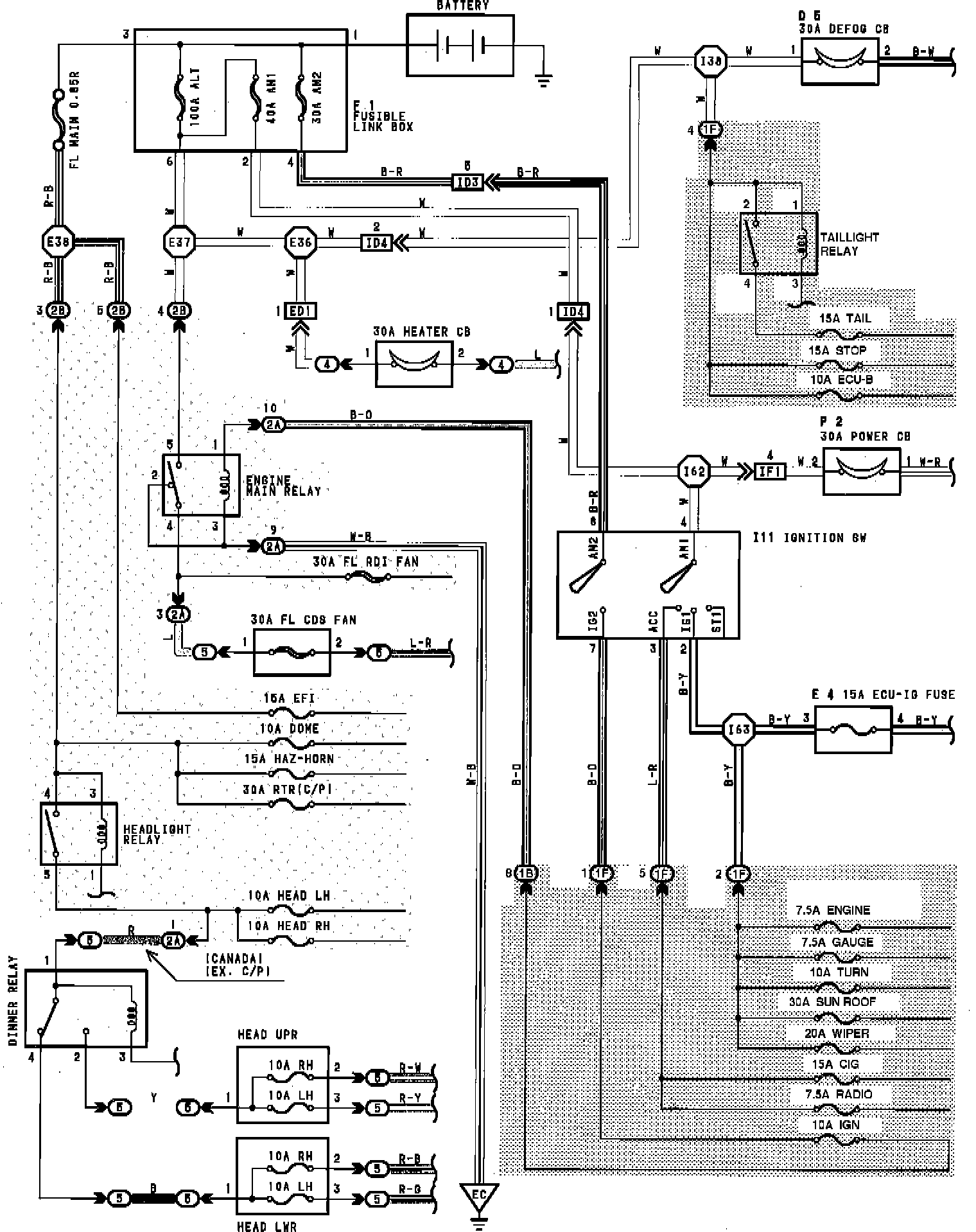

Power Source (4A-FE Engine):
