Instrument Panel and Center Console

Locations Of Connector Joining Wire Harness, Wire Harness & Ground Points:

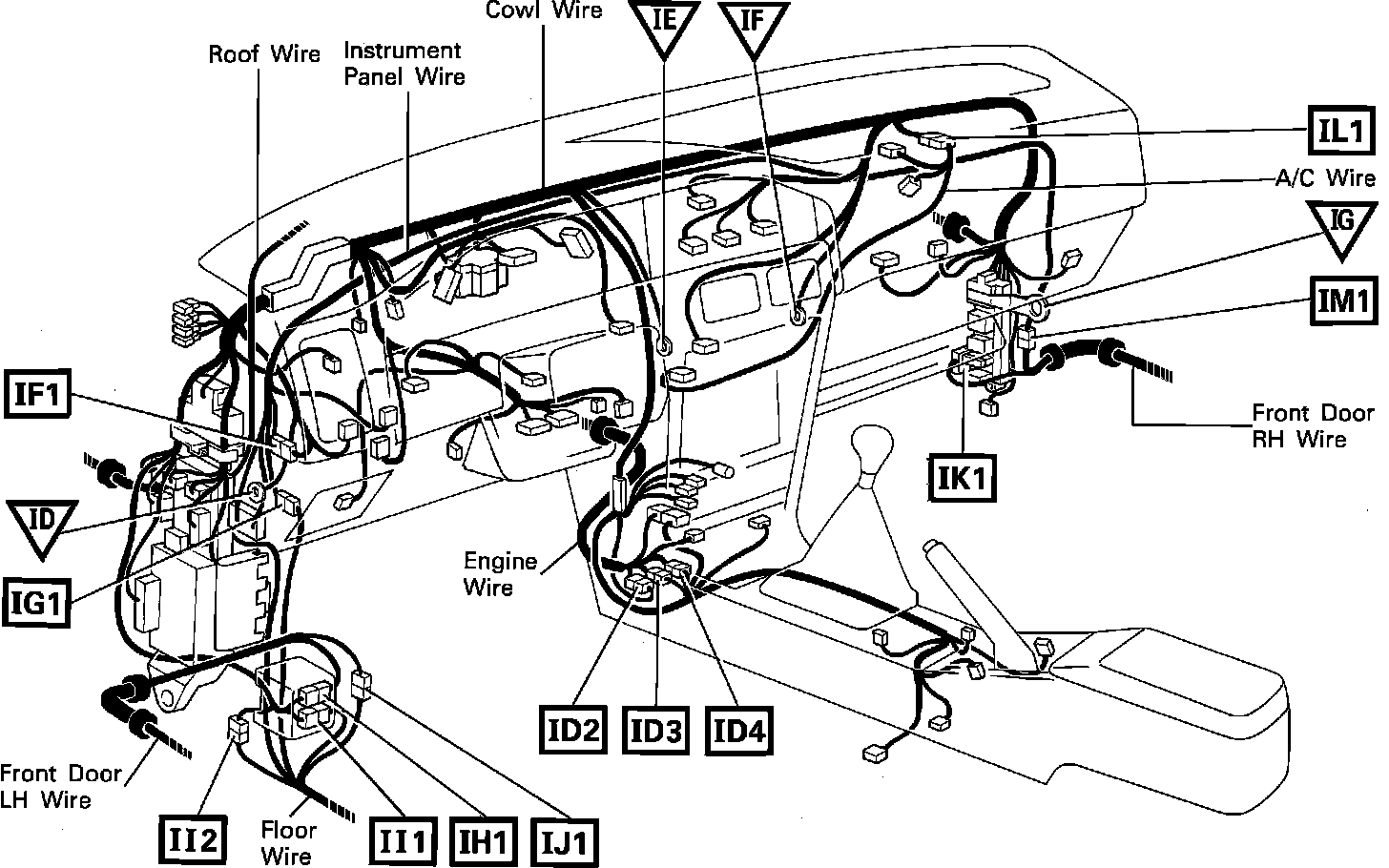

CONNECTOR LOCATION



Connector Joining Wire Harness & Wire Harness:

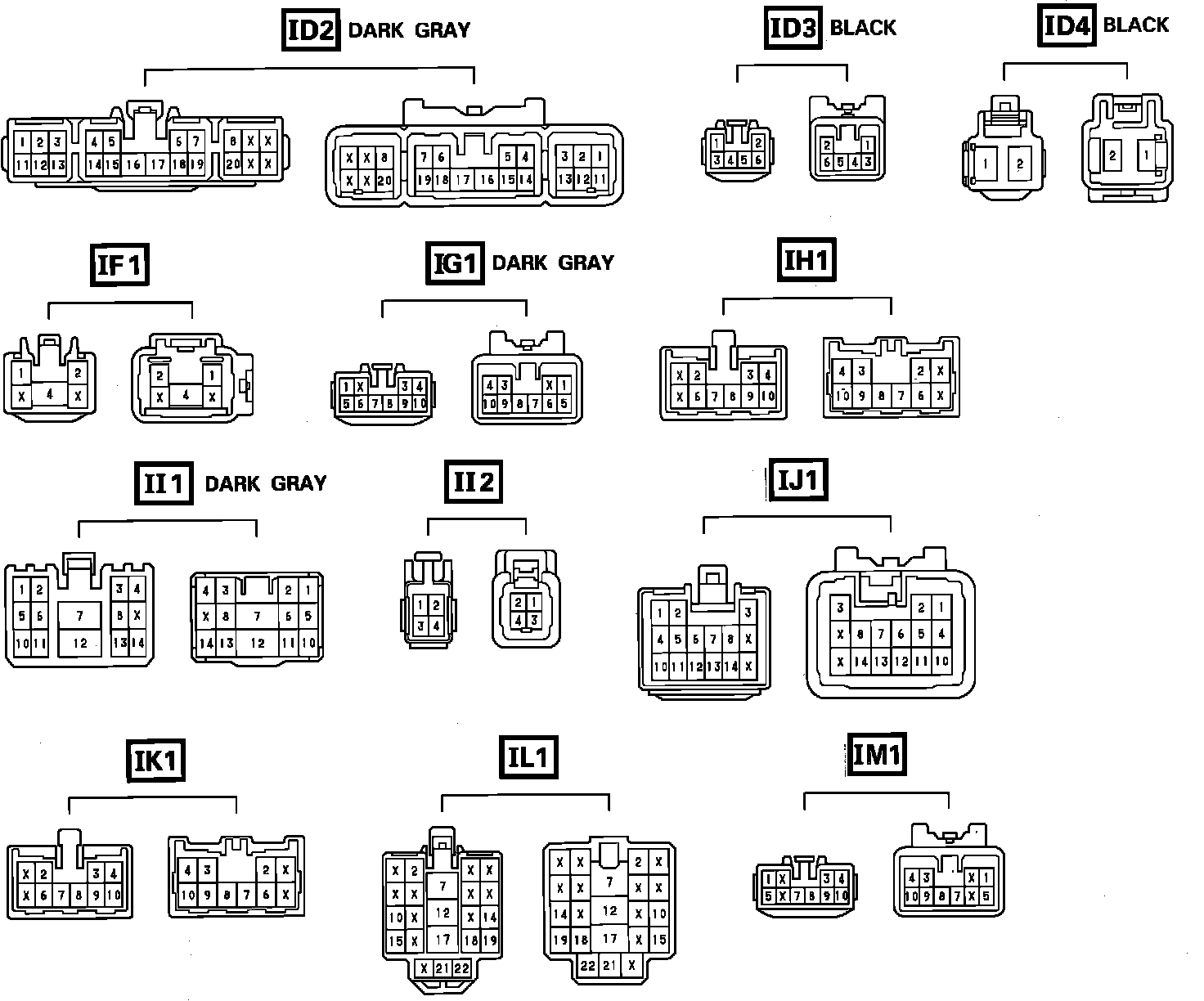

CONNECTOR IDENTIFICATION
