Locations
>>
Connector Locations
>>
Body
Body

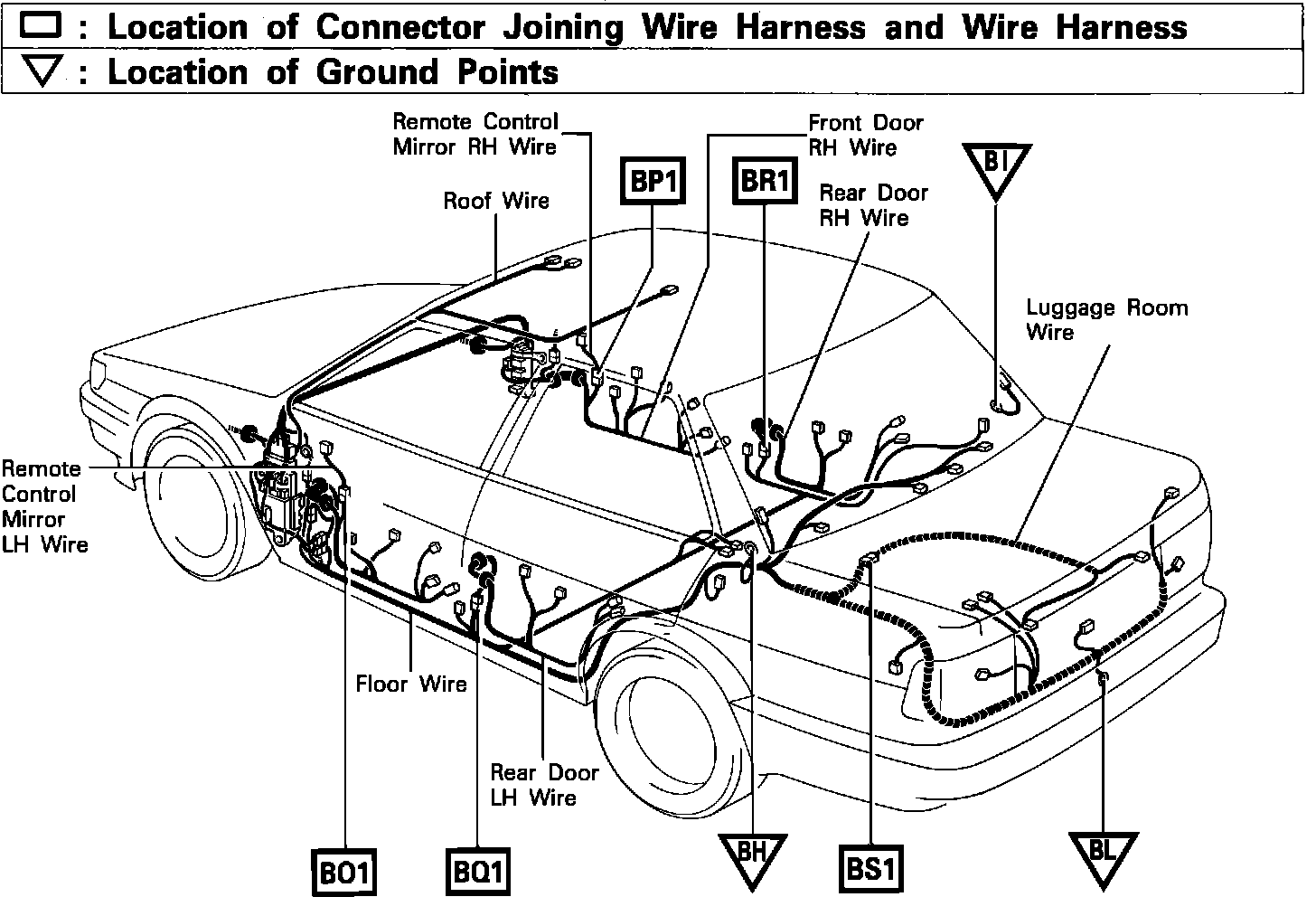

Location Of Connector Joining Wire Harness, Wire Harness And Ground Points:
CONNECTOR LOCATION

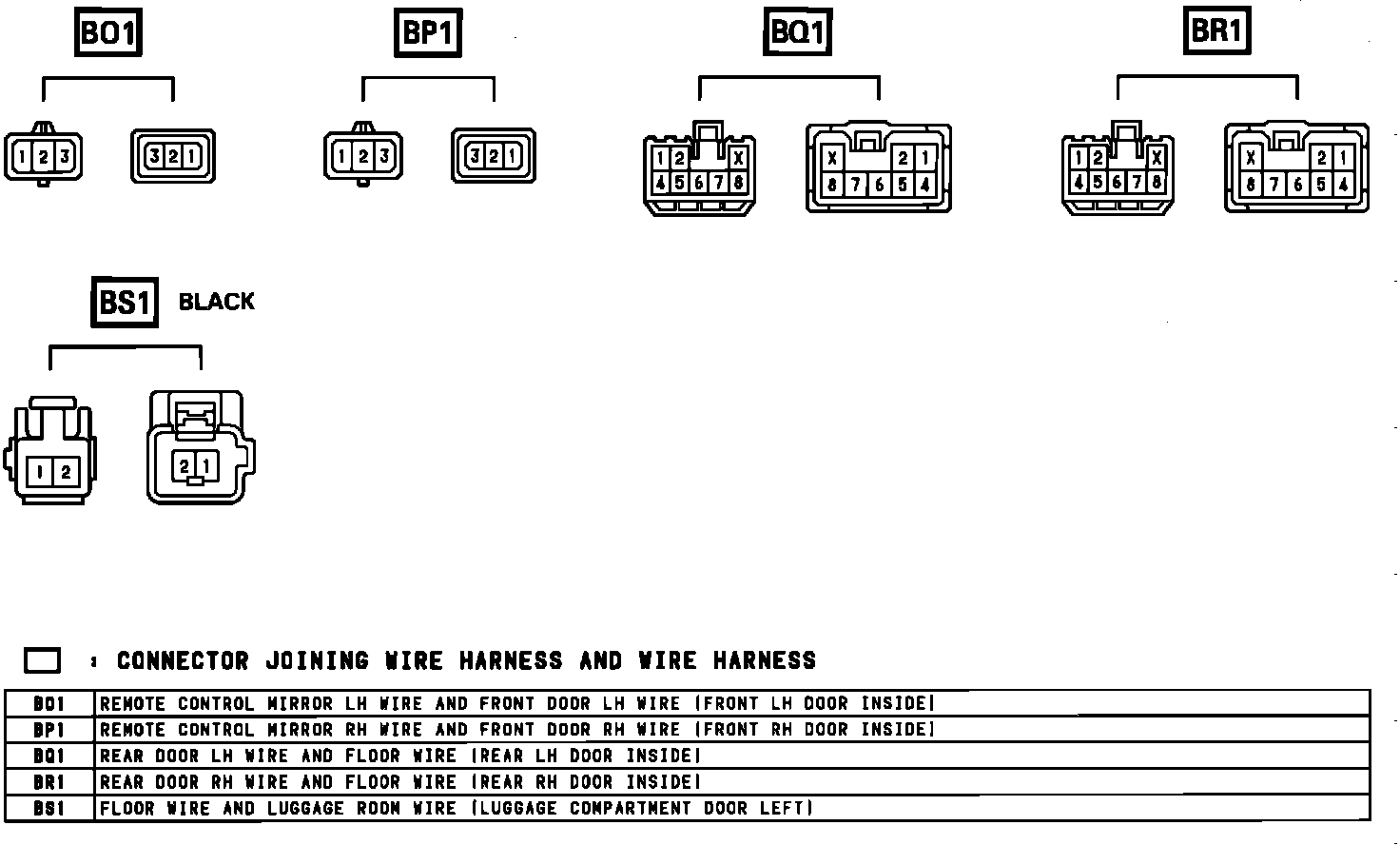

Connector Joining Wire Harness And Wire Harness:
CONNECTOR IDENTIFICATION
