Engine Compartment

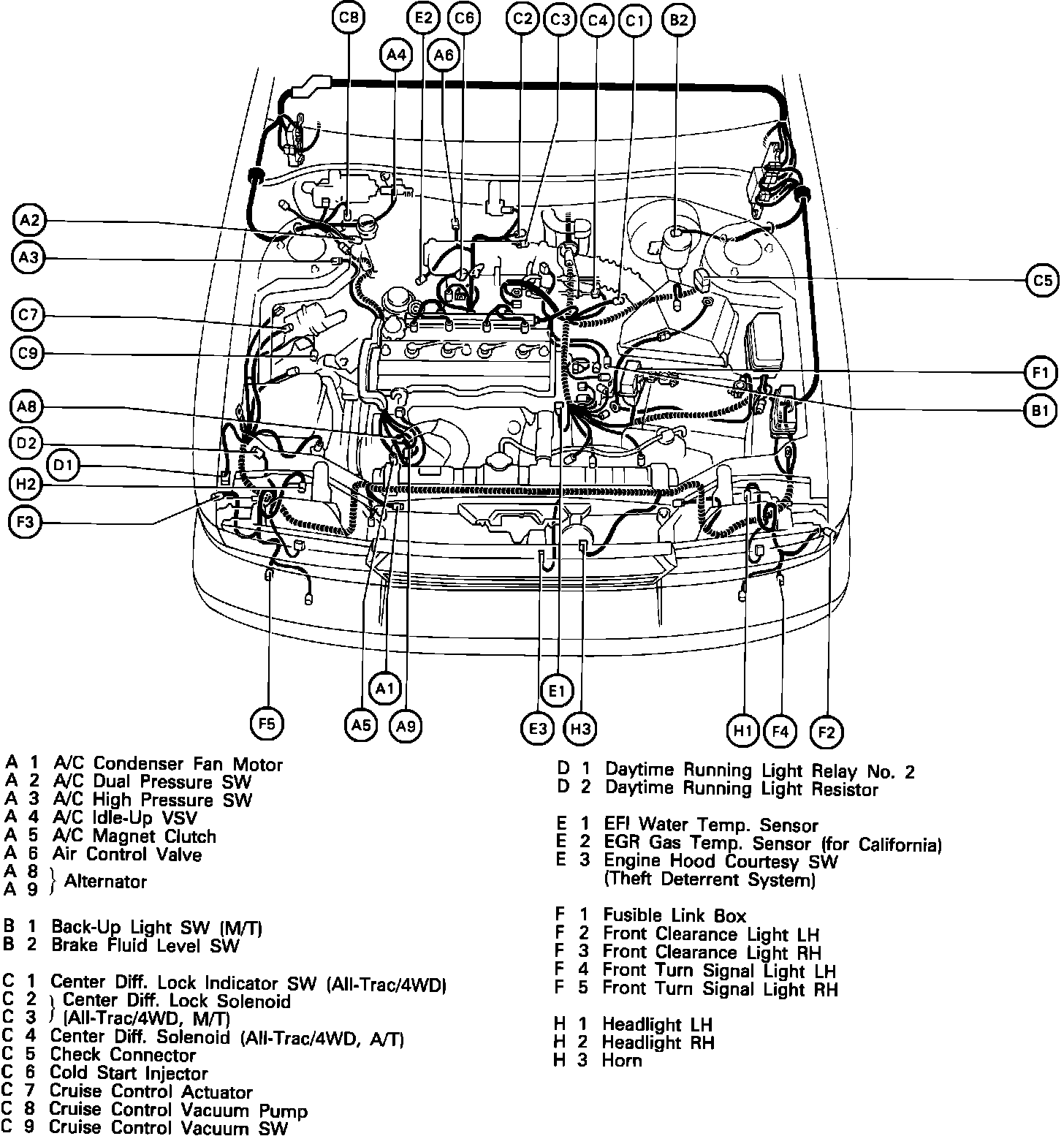

Position Of Parts In Engine Compartment:

A 1 A/C Condenser Fan Motor
A 2 A/C Dual Pressure SW
A 3 A/C High Pressure SW
A 4 A/C Idle-Up VSV
A 5 A/C Magnet Clutch
A 6 Air Control Valve
A 8
A 9 Alternator

B 1 Back-Up Light SW (M/T)
B 2 Brake Fluid Level SW
C 1 Center Diff. Lock Indicator SW (All-Trac/4WD)
C 2 Center Diff. Lock Solenoid
C 3 (All-Trac/4WD, M/T)
C 4 Center Diff. Solenoid (All-Trac/4WD, A/T)
C 5 Check Connector
C 6 Cold Start Injector
C 7 Cruise Control Actuator
C 8 Cruise Control Vacuum Pump
C 9 Cruise Control Vacuum SW

D 1 Daytime Running Light Relay No. 2
D 2 Daytime Running Light Resistor
E 1 EFI Water Temp. Sensor
E 2 EGR Gas Temp. Sensor (for California)
E 3 Engine Hood Courtesy SW (Theft Deterrent System)

F 1 Fusible Link Box
F 2 Front Clearance Light LH
F 3 Front Clearance Light RH
F 4 Front Turn Signal Light LH
F 5 Front Turn Signal Light RH
H 1 Headlight LH
H 2 Headlight RH
H 3 Horn

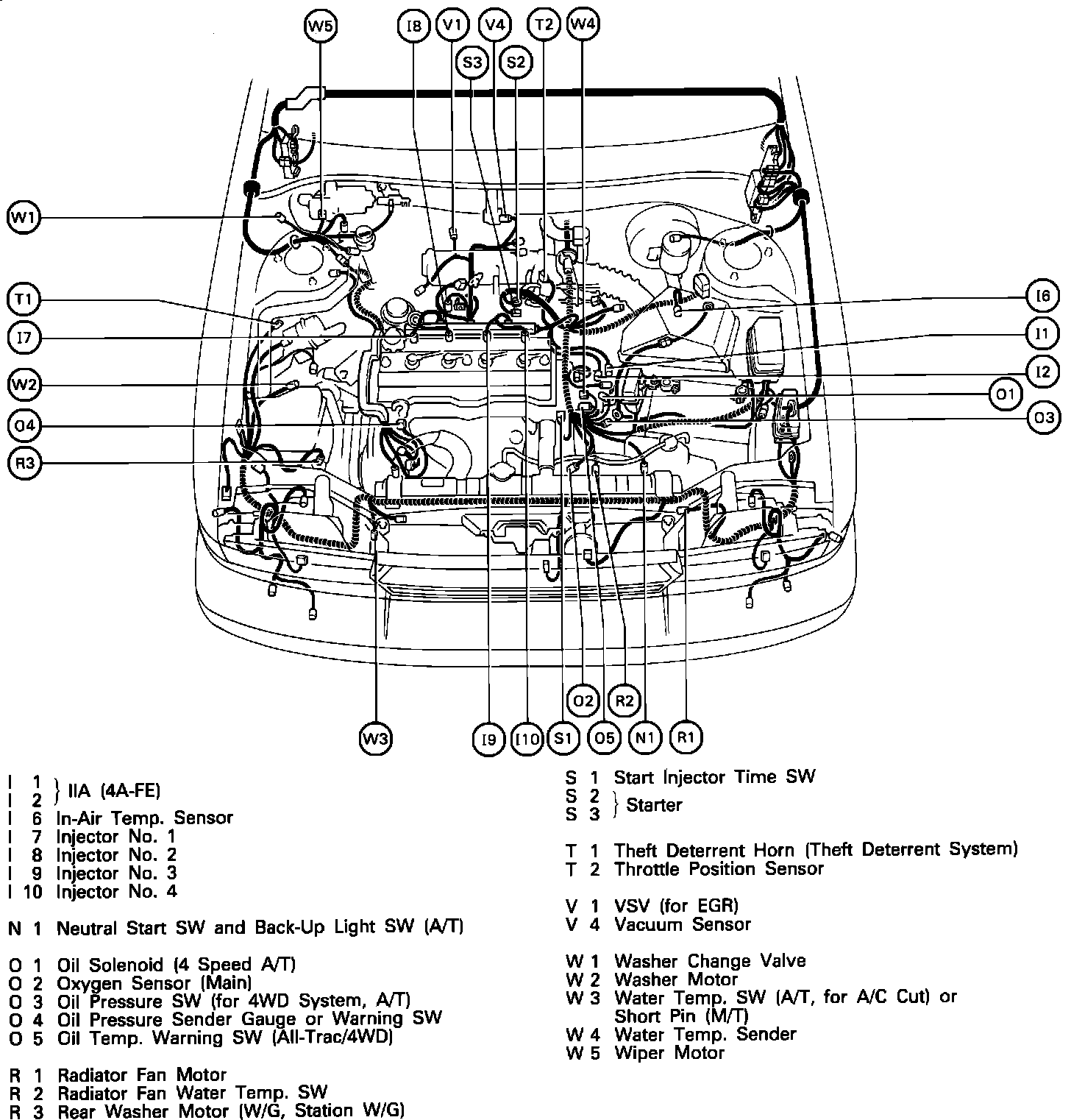

Position Of Parts In Engine Compartment:

I 1 IIA (4A-FE)
I 2
I 6 In-Air Temp. Sensor
I 7 Injector No. 1
I 8 lnjector No. 2
I 9 Injector No. 3
I 10 Injector No. 4

N 1 Neutral Start SW and Back-Up Light SW (A/T)

0 1 Oil Solenoid (4 Speed A/T)
0 2 Oxygen Sensor (Main)
0 3 Oil Pressure SW (for 4WD System, A/T)
0 4 Oil Pressure Sender Gauge or Warning SW
0 5 Oil Temp. Warning SW (All-Trac/4WD)

R 1 Radiator Fan Motor
R 2 Radiator Fan Water Temp. SW
R 3 Rear Washer Motor (W/G, Staton W/G)

S 1 Start lnjector Time SW
S 2
S 3 Starter

T 1 Theft Deterrent Horn (Theft Deterrent System)
T 2 Throttle Position Sensor

V 1 VSV (for EGR)
V 4 Vacuum Sensor

W 1 Washer Change Valve
W 2 Washer Motor
W 3 Water Temp. SW (A/T, for A/C Cut) or Short Pin (M/T)
W 4 Water Temp. Sender
W 5 Wiper Motor
