Body

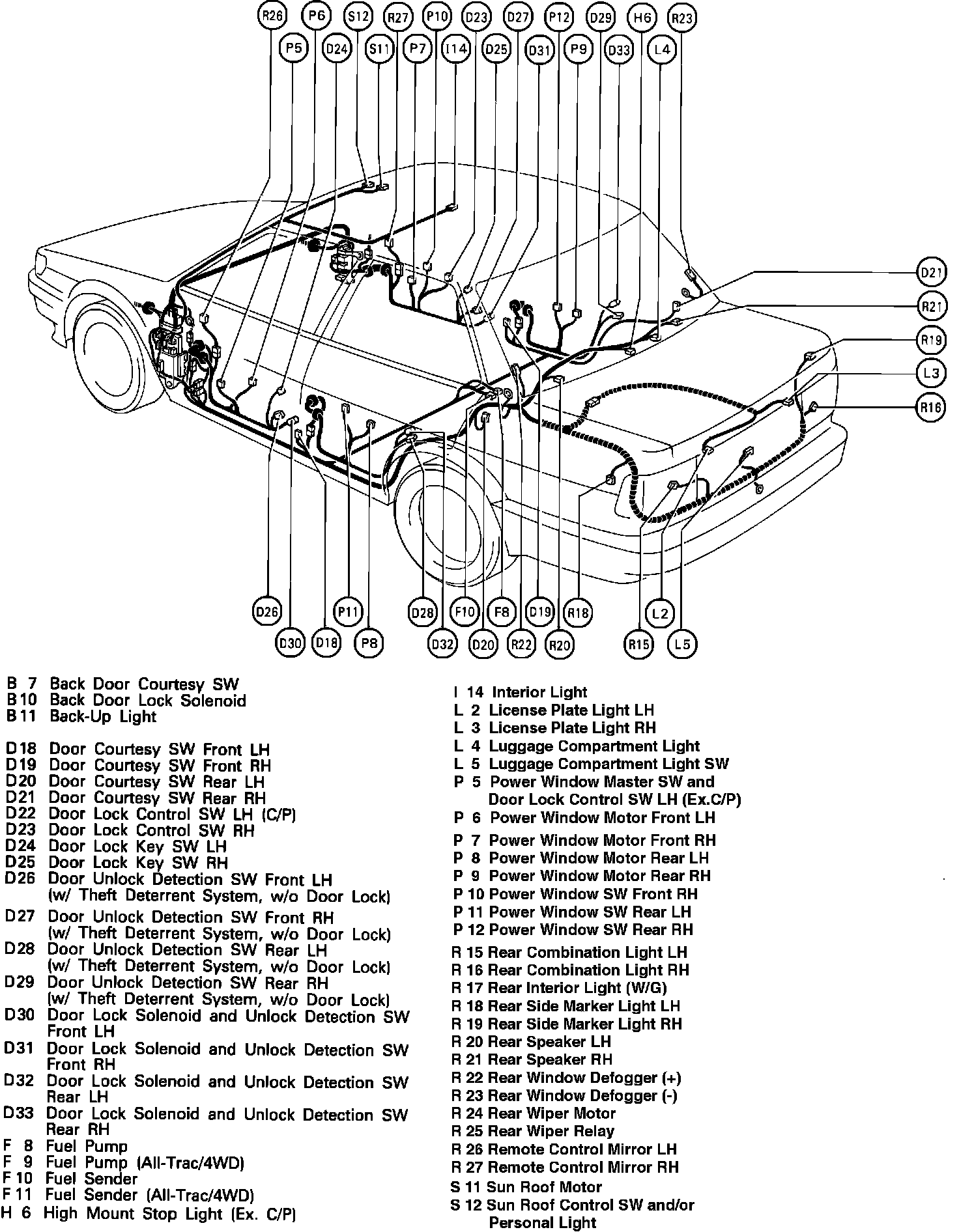

Postion Of Parts In Body:

B 7 Back Door Courtesy SW
B 10 Back Door Lock Solenoid
B 11 Back-Up Light

D 18 Door Courtesy SW Front LH
D 19 Door Courtesy SW Front RH
D 20 Door Courtesy SW Rear LH
D 21 Door Courtesy SW Rear RH
D 22 Door Lock Control SW LH (C/P)
D 23 Door Lock Control SW RH
D 24 Door Lock Key SW LH
D 25 Door Lock Key SW RH
D 26 Door Unlock Detection SW Front LH (w/ Theft
Deterrent System, w/o Door Lock)

D 27 Door Unlock Detection SW Front RH (w/ Theft
Deterrent System, w/o Door Lock)
D 28 Door Unlock Detection SW Rear LH (w/ Theft Deterrent
System, w/o Door Lock)
D 29 Door Unlock Detection SW Rear RH (w/ Theft Deterrent
System, w/o Door Lock)
D 30 Door Lock Solenoid and Unlock Detection SW Front LH
D 31 Door Lock Solenoid and Unlock Detection SW Front RH
D 32 Door Lock Solenoid and Unlock Detection SW Rear LH
D 33 Door Lock Solenoid and Unlock Detection SW Rear RH

F 8 Fuel Pump
F 9 Fuel Pump (All-Trac/4WD)
F 10 Fuel Sender
F 11 Fuel Sender (All-Trac/4WD)

H 6 High Mount Stop Light (Ex. C/P)
