Upper Valve Body

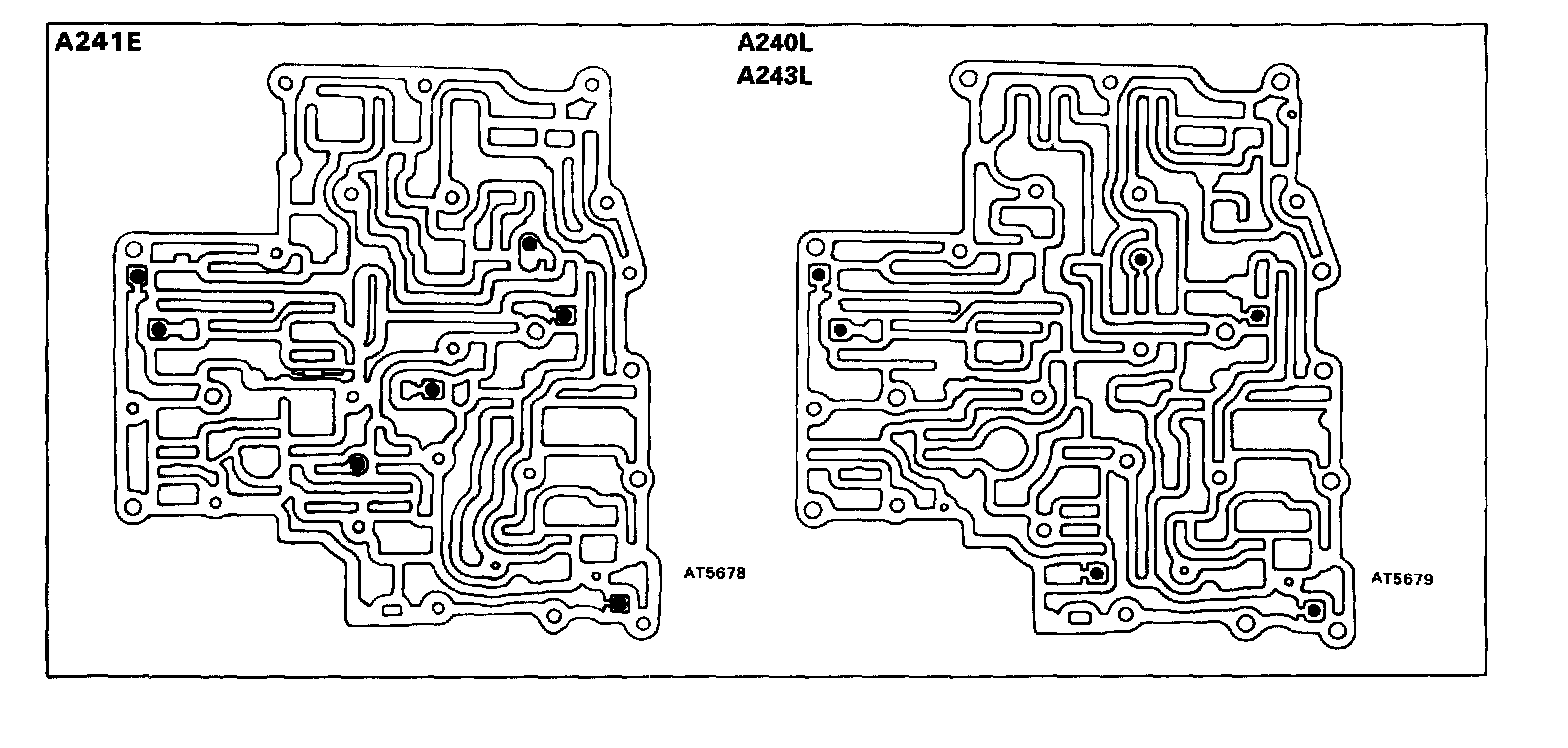

COMPONENTS

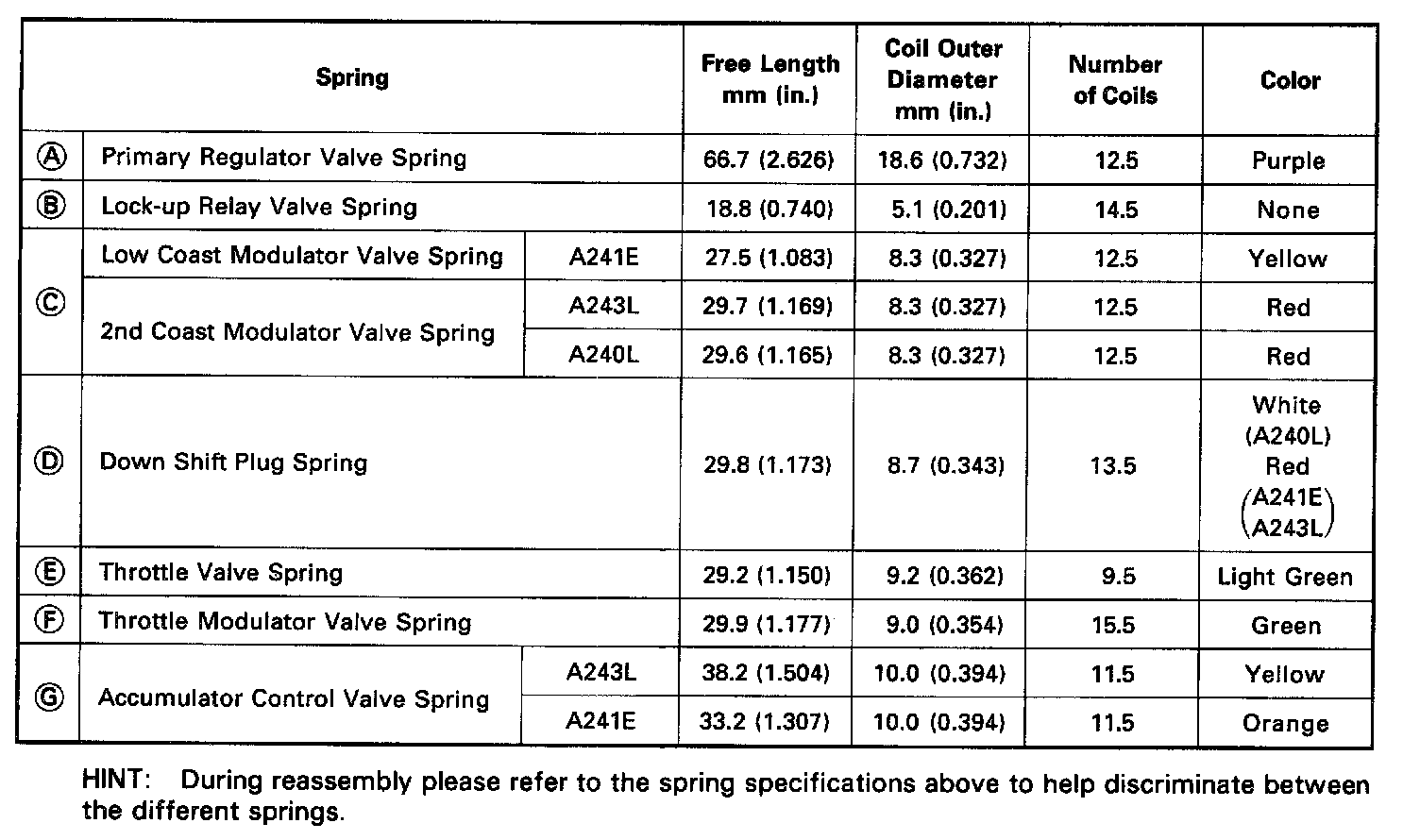

Specifications Of Valve Body Spring:
SPECIFICATIONS OF VALVE BODY SPRING

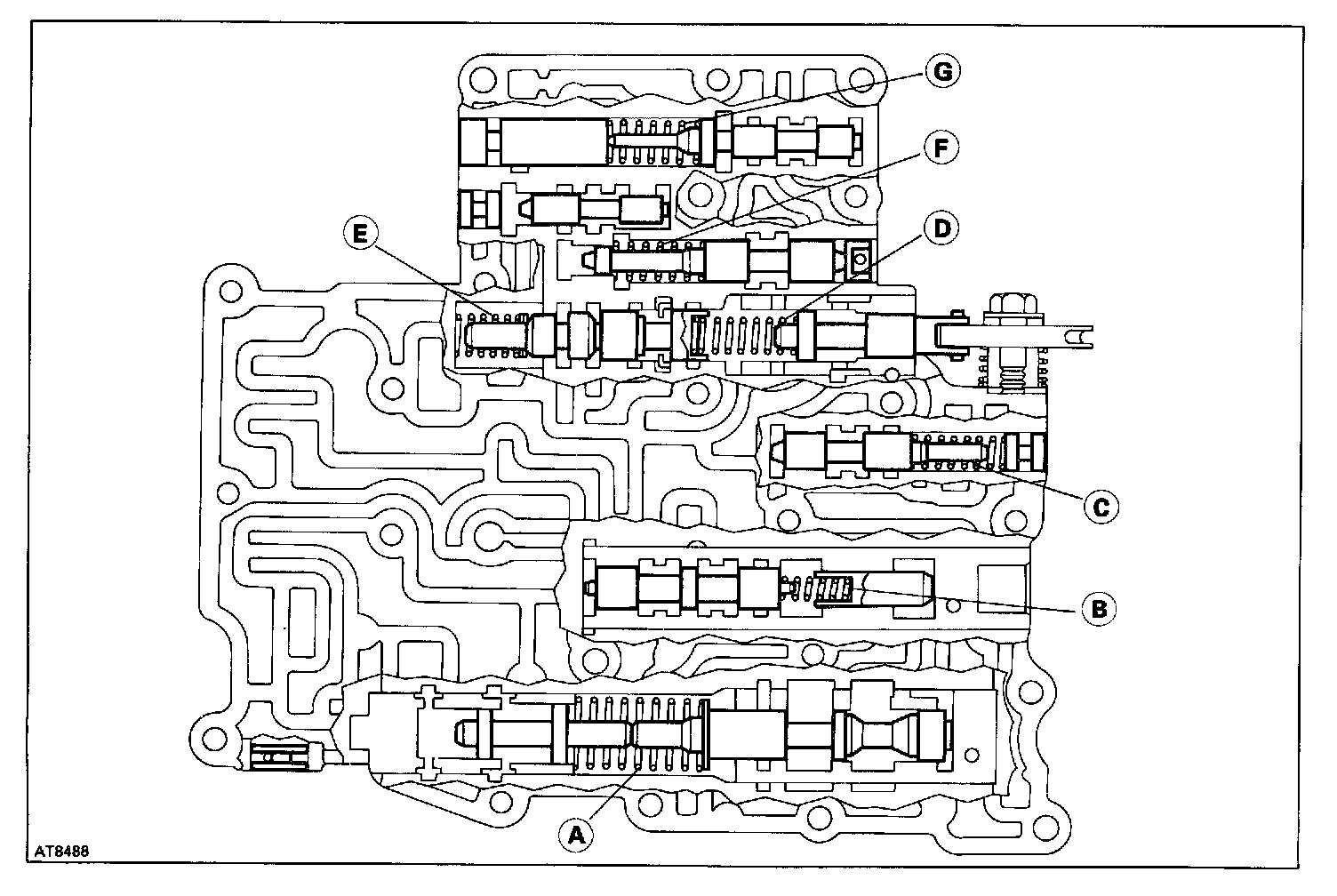

Sectional View Of Valve Body:
SECTIONAL VIEW OF VALVE BODY

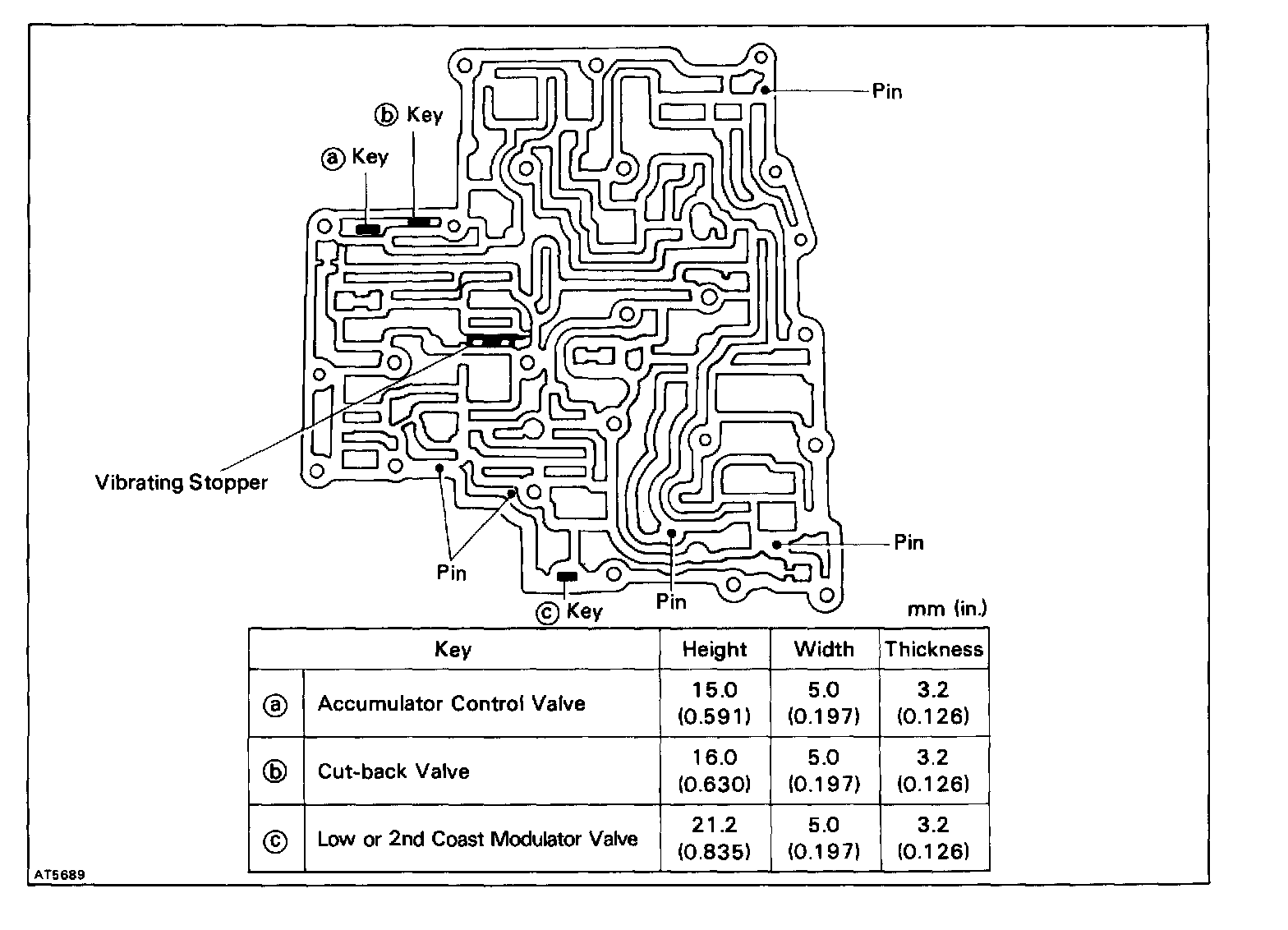

LOCATION OF KEYS, PINS, VIBRATING STOPPER AND CHECK BALLS
Key Stopper And Pin:
1. KEY STOPPER AND PIN
Check Ball:
2. CHECK BALL
